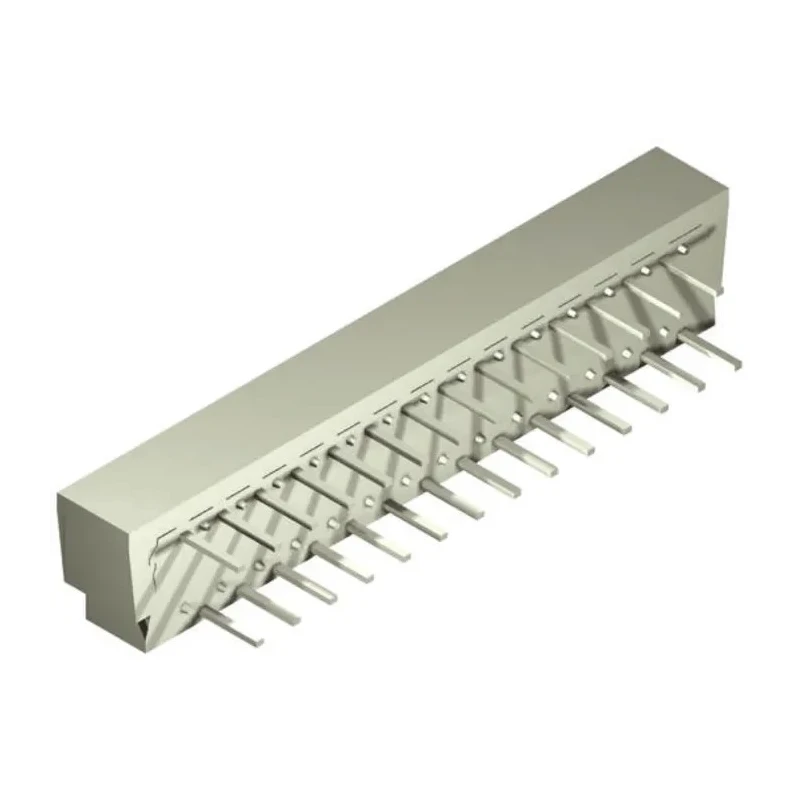

Molex 5597 Series 1.25 mm Pitch 22 Way Right Angle Female FPC Connector, Through Hole, Solder Termination, ZIF 39-53-2224

Molex 39-53-2224 is a 5597 series 1.25 mm pitch female FPC Connector featuring 22 contacts arranged in a single row with right angle orientation. Designed for through hole mounting with solder termination and zero insertion force (ZIF) insertion, it provides a secure and reliable connection ideal for tight packaging in electronic devices.

Constructed with phosphor bronze contact material plated with tin bismuth over nickel, this connector offers durability and excellent electrical performance. The polybutylene terephthalate housing material ensures mechanical strength and thermal stability.

Operating within a temperature range of -20°C to 80°C and rated for electrical performance up to 200V and 1A, the connector is suitable for demanding automotive electronic applications requiring reliable and repeatable connections.

The design includes a slide type actuator facilitating easy FPC insertion and a locking mechanism to secure the connection. Its staggered solder tails and compact footprint contribute to space-saving designs in complex assemblies.

Zero insertion force (ZIF) design reduces wear during repeated insertions. Right angle orientation maximizes PCB layout flexibility. Phosphor bronze contacts with tin bismuth plating ensure corrosion resistance and conductivity.

Polybutylene terephthalate housing for robust mechanical performance. Suitable for electronic automotive and other industrial applications. Single row with 22 contacts and 1.25 mm pitch for high-density connections.

Originating from Japan, this connector meets high-quality standards and is ideal for applications requiring secure, durable, and space-optimized FPC connections. Explore more connectors and electronic components to support your manufacturing and prototyping requirements at EnvMart.
