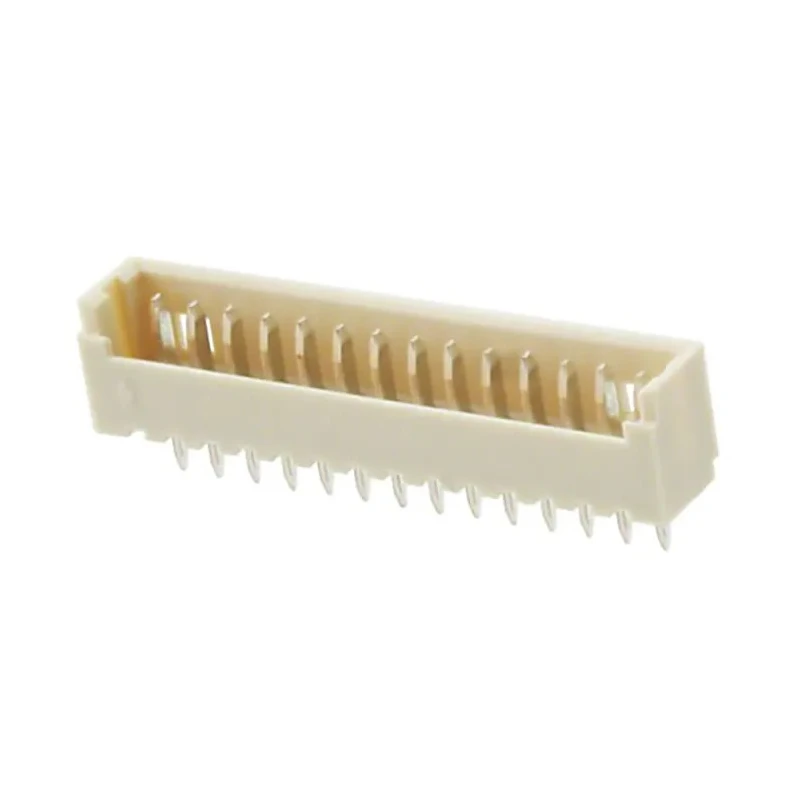

Molex PicoBlade Series Straight Through Hole PCB Header, 14 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53047-1410

Molex 53047-1410 PCB Header from the PicoBlade Series is a high-density wire-to-board connector designed for compact and reliable interconnect solutions. It features 14 male contacts spaced at a 1.25 mm pitch in a single row configuration, enabling significant PCB space savings of approximately 45% compared to traditional 2.00 mm pitch systems.

The housing is constructed from high-quality nylon and incorporates shrouded design elements to protect the contacts and improve durability. Contacts are manufactured from phosphor bronze with tin plating to provide excellent electrical conductivity and corrosion resistance.

This connector uses a friction locking mechanism created by locking windows and latching ramps, providing secure mating and preventing accidental disconnection due to vibration or mishandling. The termination type is solder, suitable for through hole PCB mounting, ensuring robust mechanical and electrical connections.

Operating in temperatures ranging from -40°C to 85°C, this header is suitable for a wide array of industrial, automotive, medical, and consumer electronic applications requiring compact, durable connectors with a current rating of 1 A and a voltage rating of 125 V.

This PCB header supports a 1 A current in a compact design. The 1.25 mm pitch design provides up to 45% PCB space saving compared to 2.00 mm pitch systems. The housing material is durable nylon with a shrouded design for protection.

Contacts are made of phosphor bronze with tin plating for reliable conductivity. The connector uses a friction locking mechanism to ensure secure mating connections. It is suited for through hole mounting and features solder termination.

Operating temperature range is from -40°C to 85°C, suitable for various environments. Typical applications include automotive alarms, car audio systems, industrial process controls, and medical patient monitors.

This Molex PicoBlade PCB header is an industry-standard connector for wire-to-board applications demanding compact size, robust mechanical retention, and reliable electrical performance.
