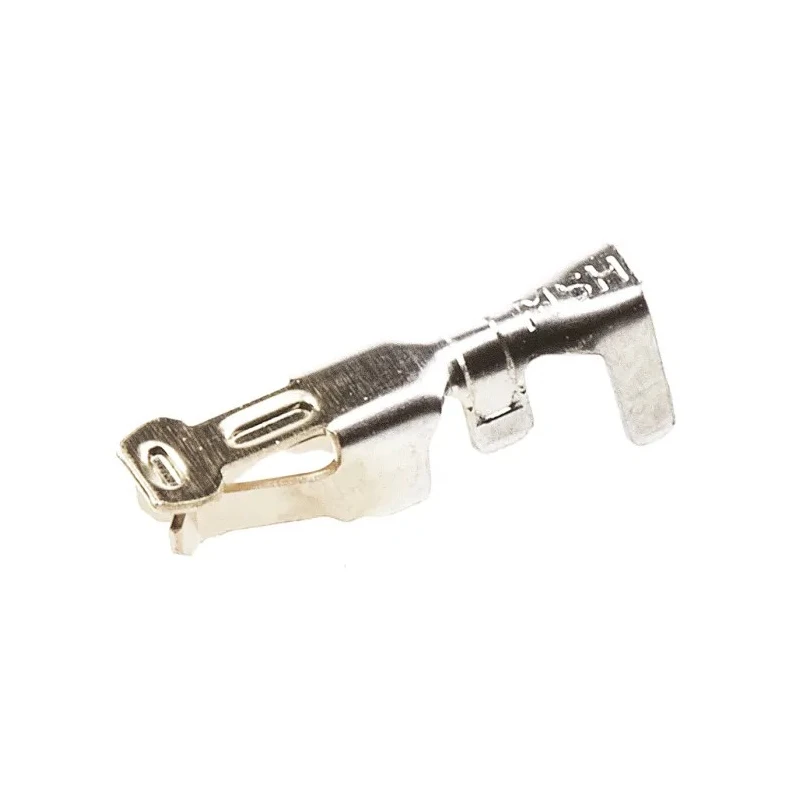

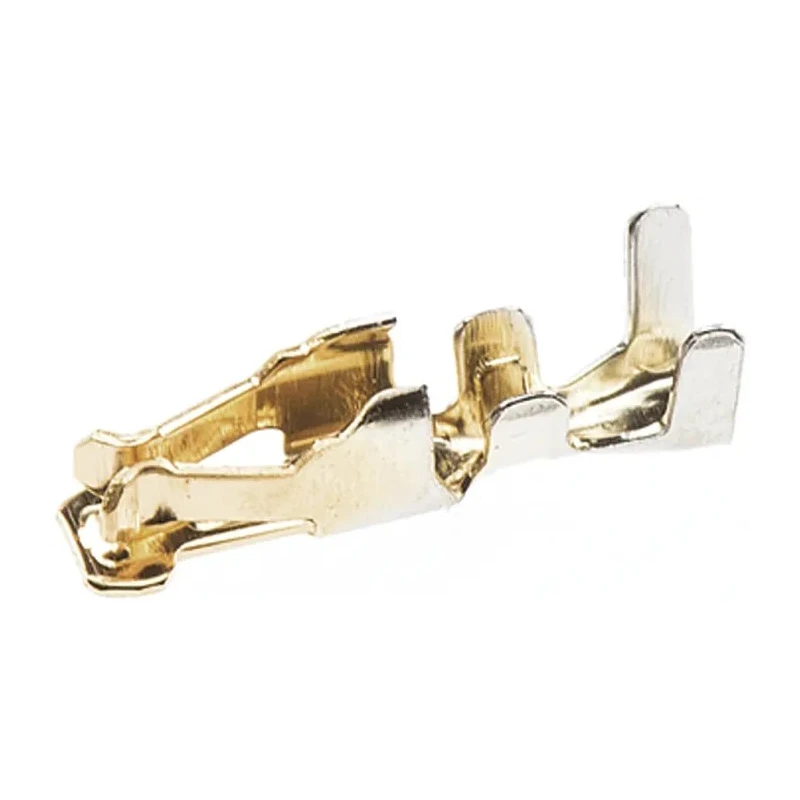

Molex 50394 Series Female Crimp Terminal 30 AWG Min Crimp, 24 AWG Max, Gold Plated, Phosphor Bronze, 2A Current 50394-8200
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 2A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 50394 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Milli-Grid Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 40mΩ |
Key Features
- Constructed from high-quality phosphor bronze for reliable conductivity.
- Gold plating enhances electrical performance and corrosion resistance.
- Suitable for wire sizes from 0.05 to 0.2 mm² (30 to 24 AWG).
- Rated for a maximum current of 2.0 amperes and 125V AC/DC.
- Designed for use with Milli-Grid connector housings for signal and wire-to-board connections.
- Operates reliably in temperature range from -40°C to 105°C.
- Termination type is crimp for mechanical and electrical secure attachment.
- Maximum contact resistance of 40 milliohms ensures low electrical loss.
Product Description
Molex 50394-8200 Female Crimp Terminal is a high-performance connector component engineered for secure and reliable electrical connections in electronic assemblies. Constructed from phosphor bronze with gold-plated contacts, it offers superior electrical conductivity and resistance to oxidation, ensuring longevity in demanding applications.
This terminal supports wire sizes from 0.05 to 0.2 mm² (30 to 24 AWG) and is rated for a current of 2 amperes and voltage up to 125V AC/DC, making it suitable for a wide variety of low current signal and power applications.
Its crimp termination provides a secure mechanical and electrical connection, optimized for use with Molex Milli-Grid connector housings, facilitating wire-to-board and wire-to-wire connections in industrial automation, telecommunications, and instrumentation.
Operating temperature range spans from -40°C to +105°C, enabling dependable function in harsh environments.
The terminal's low maximum contact resistance of 40 milliohms ensures minimal power loss and high signal integrity. Designed to withstand up to 50 mating cycles, this component meets durability requirements in repetitive assembly and maintenance cycles.
Constructed from phosphor bronze for durability and conductivity. Gold plating reduces oxidation and improves electrical performance. Compatible with wire sizes 30 AWG to 24 AWG (0.05 to 0.2 mm²). Rated for 2 amperes current and 125 volts AC/DC voltage.
Crimp termination type for secure wire attachment. Suitable for use with Milli-Grid connector housings. Operating temperature -40°C to 105°C for harsh environments. Maximum contact resistance 40 milliohms ensures minimal power loss.
Durability supports up to 50 mating cycles.
This Molex female Crimp Terminal is widely used in electronics manufacturing, industrial automation, telecom equipment, and instrumentation wiring where reliable and compact connectors are required.
Explore more electronic components and connectors on EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 2 amperes.
It is suitable for wire sizes from 0.05 to 0.2 mm², which corresponds to 30 AWG to 24 AWG.
The operating temperature range spans from -40°C to +105°C, making it suitable for harsh environments.
The contacts are made from phosphor bronze and are gold plated to enhance conductivity and resist oxidation.
It features a crimp termination type, which provides a secure mechanical and electrical connection.
The maximum contact resistance is 40 milliohms, ensuring minimal power loss.
It is designed for use with Milli-Grid connector housings for signal and wire-to-board connections.
This terminal is designed to withstand up to 50 mating cycles, meeting durability requirements for repetitive use.
It is widely used in electronics manufacturing, industrial automation, telecommunications, and instrumentation wiring.
Specific dimensions and weight are not provided in the product details.
No specific maintenance details are provided for this terminal in the product specifications.
There are no specific certifications mentioned for this crimp terminal in the provided information.
