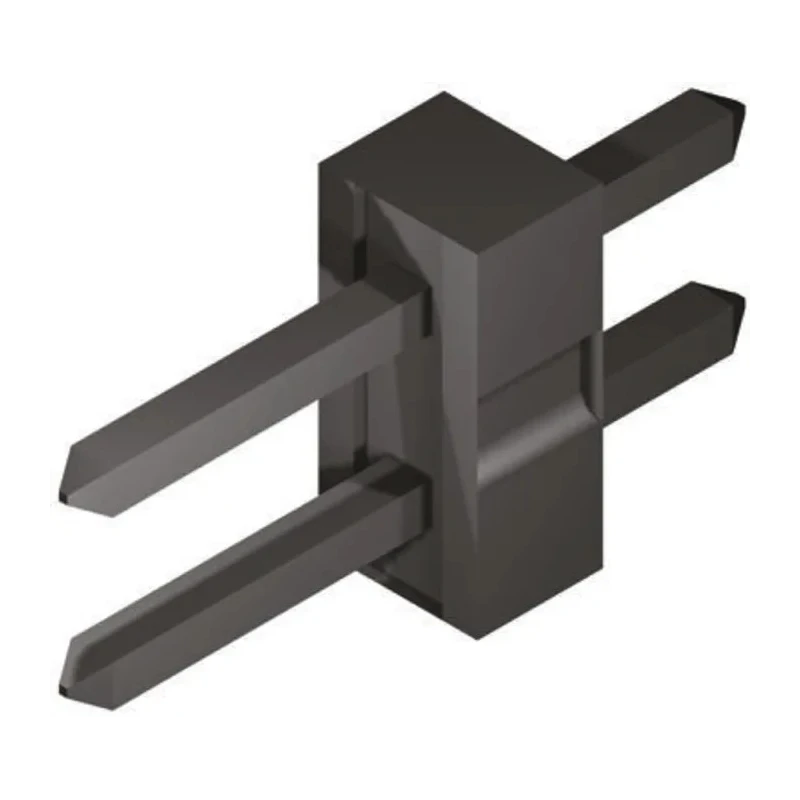

Molex Milli-Grid Series 2 Contact 2 mm Pitch 2 Row Unshrouded Straight Through Hole Pin Header 87758-0216
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Milli-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 2mm |
Key Features
- Features a high-density 2.00 x 2.00 mm grid for compact mounting.
- Constructed with nylon housing for durability and electrical insulation.
- Phosphor bronze contacts plated with gold for excellent conductivity and corrosion resistance.
- Designed for a current rating of 2A and a voltage rating of 125V.
- Suitable for through hole mounting with solder termination type.
- Operational temperature ranges from -55°C to 105°C.
- Connector system supports board-to-board applications with straight orientation.
- Unshrouded design allows easy mating with male contacts with a pin length of 2 mm.
Product Description
Molex 87758-0216 Milli-Grid Series pin header is a precision-engineered, high-density dual-row PCB connector featuring 2 contacts with a 2 mm pitch and an unshrouded straight through hole design. This component utilizes a nylon housing material combined with phosphor bronze contacts plated with gold to ensure high reliability and low contact resistance in demanding electronic environments.
The connector is rated for 2A at 125V, supporting various signal transmission applications with a mating pin length of 2 mm. It operates efficiently across a wide temperature range from -55°C to 105°C, making it suitable for industrial, automotive, and telecommunication electronic applications.
The Milli-Grid system provides flexible layout options due to its compact 2.00 x 2.00 mm grid design allowing vertical mounting options that can be cut to size, ensuring adaptability in PCB design. Typical uses include wire-to-board applications in printers, copiers, servers, routers, automotive audio, GPS systems, and security alarms.
Its unshrouded, dual-row connector system is designed for straightforward solder termination through hole mounting, supporting ease of assembly in manufacturing processes. The gold-plated phosphor bronze contacts ensure superior electrical connectivity and long-term durability.
High-density 2.00 x 2.00 mm pitch ensures compact PCB design. Nylon housing provides robust insulation and mechanical strength. Phosphor bronze gold-plated contacts deliver excellent corrosion resistance. Current rating of 2A and voltage rating of 125V support wide applications.
Wide operating temperature range from -55°C to 105°C suits harsh environments. Straight, unshrouded dual-row design supports flexible assembly and mating. Ideal for electronics in industrial, automotive, and communication sectors.
Through hole solder termination facilitates reliable mounting on PCBs. Explore the range of Molex PCB Headers and connectors at EnvMart for dependable and precise interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header is rated for a current of 2A.
It has a voltage rating of 125V.
The connector features a pitch size of 2 mm.
It is constructed with a nylon housing and phosphor bronze contacts plated with gold.
The operational temperature range is from -55°C to 105°C.
This pin header has 2 rows and 2 contacts.
It uses a solder termination type for through hole mounting.
This connector is unshrouded, allowing for easy mating with male contacts.
It is suitable for board-to-board applications in various sectors, including industrial, automotive, and telecommunications.
The mating pin length is 2 mm.
It supports a board-to-board connector system.
The pin header is manufactured in India.
