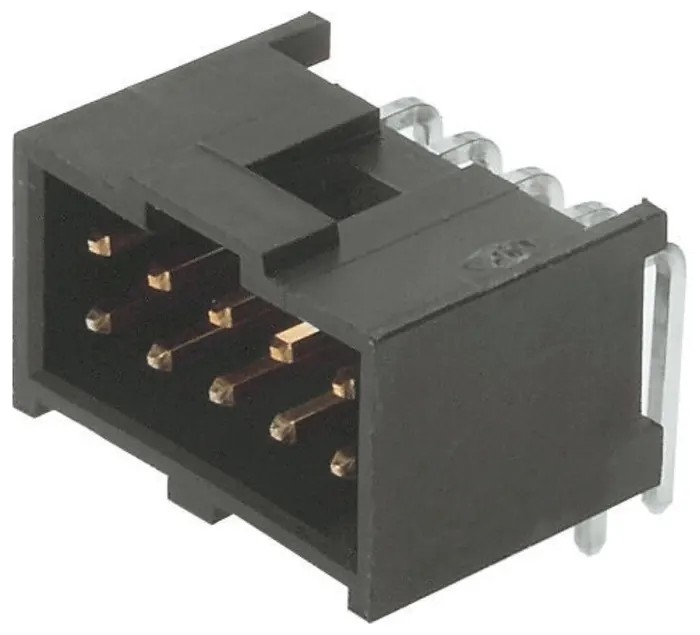

Molex C-Grid III Series 14 Contact Straight Through Hole PCB Header, 2.54 mm Pitch, 2 Row, Shrouded 90130-1214
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Constructed with a polyester housing ensuring durability and insulation.
- Connector system supports wire-to-board mounting through hole technology.
- Gold-plated brass contacts provide reliable electrical connectivity and corrosion resistance.
- Operates effectively within a temperature range of -55°C to 125°C.
- Designed for a maximum voltage rating of 350V and current rating of 3 amps.
- Includes male contact gender with tail pin length of 2.9 mm and mating pin length of 6.75 mm.
- Shrouded straight locking header suitable for locking housings to enhance connection security.
Product Description
Molex 90130-1214 C-Grid III Series Straight Through Hole PCB Header is a precision electrical connector designed for wire-to-board applications requiring reliable and secure connections on printed circuit boards. This header offers 14 gold-plated brass contacts arranged in two rows with an industry standard 2.54 mm pitch, providing consistent current carrying capacity rated at 3 amps and voltage tolerance up to 350 volts.
The connector housing is made of durable polyester material, ensuring excellent insulation and environmental resistance. It features a shrouded design with straight orientation, offering strong locking characteristics to prevent accidental disconnections in demanding industrial and electronic environments.
Operating temperature range spans from -55°C to 125°C, making it suitable for a wide spectrum of applications including industrial automation, electronic manufacturing, instrumentation, HVAC controls, and communication equipment.
The header termination type is solder, streamlining assembly onto through hole PCBs.
Its robust design supports electrical systems requiring stable and secure wire-to-board connections and improves manufacturing efficiency through straightforward insertion and soldering.
Constructed with a polyester housing ensuring durability and insulation. Connector system supports wire-to-board mounting through hole technology. Gold-plated brass contacts provide reliable electrical connectivity and corrosion resistance.
Operates effectively within a temperature range of -55°C to 125°C. Designed for a maximum voltage rating of 350V and current rating of 3 amps. Includes male contact gender with tail pin length of 2.9 mm and mating pin length of 6.75 mm.
Shrouded straight locking header suitable for locking housings to enhance connection security.
This PCB header is essential for any industrial, electronic, manufacturing, or HVAC application requiring high-quality, dependable wire-to-board connectivity. Browse the EnvMart catalog for additional Molex C-Grid III connectors and related electrical components to complement your industrial wiring solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB header is 350V.
This model has a current rating of 3 amps.
The contacts are arranged with a pitch of 2.54 mm.
It operates effectively within a temperature range of -55°C to 125°C.
The housing is made of polyester, and the contacts are gold-plated brass.
This model features 14 contacts arranged in two rows.
The termination type for this header is solder.
The tail pin length is 2.9 mm.
The mating pin length is 6.75 mm.
This connector is shrouded, which enhances connection security.
It supports wire-to-board mounting through hole technology.
The country of origin for this PCB header is India.
