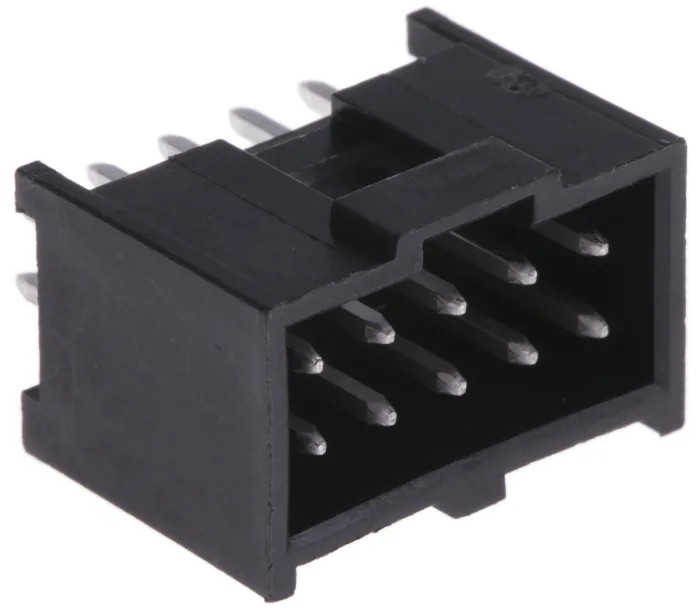

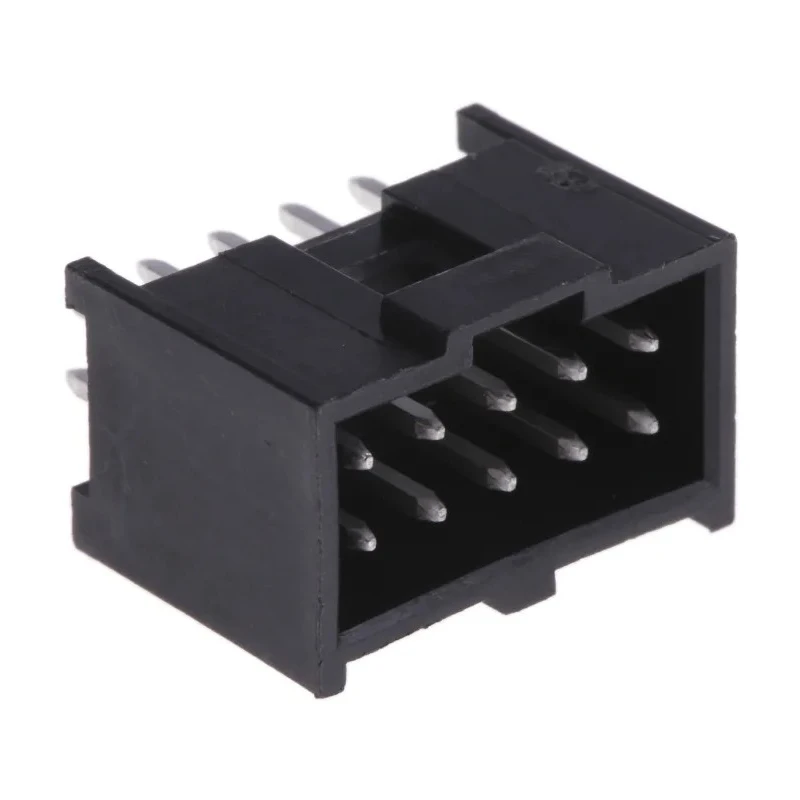

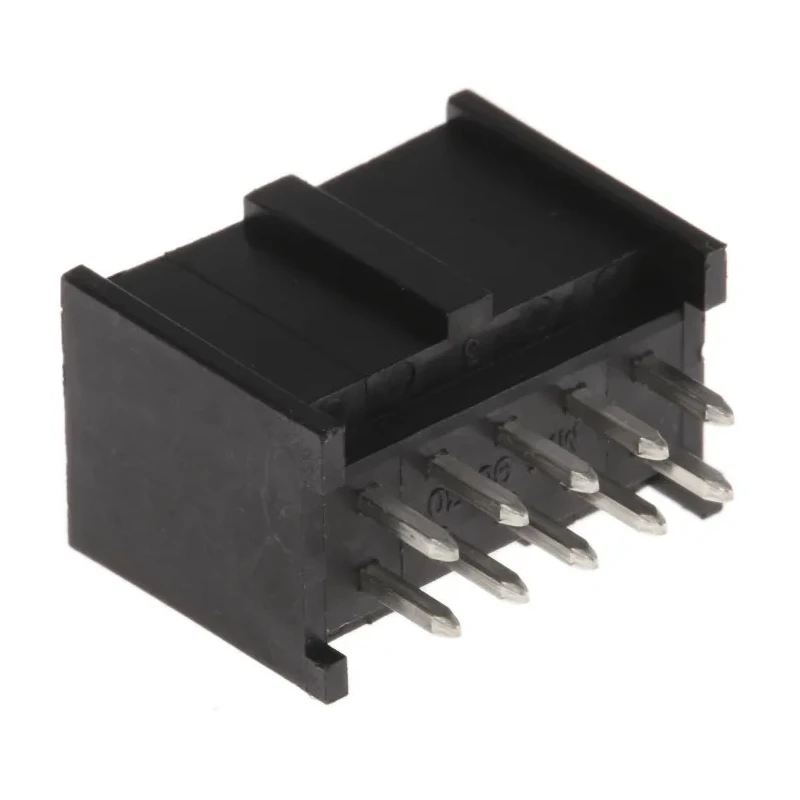

Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 90130-1110

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 90130-1110

Name: Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 90130-1110
Brand: Molex
SKU: 206678
Price: 2.16 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm

Key Features

Features 10 male contacts arranged in 2 rows with 2.54 mm pitch.
Constructed with brass contacts plated with tin for optimal conductivity and corrosion resistance.
Designed for through-hole mounting allowing strong mechanical and electrical connection.
Operates within a temperature range of -55°C to 125°C for versatile application.
Rated for a voltage of up to 350 V and current of 3 A ensuring high performance.
Tail pin length of 2.9 mm facilitates secure soldering on PCBs.
Shrouded housing protects contacts and improves connector alignment and retention.
Suitable for industrial electronics, power connectors, and PCB assembly applications.

Product Description

Molex 90130-1110 is a C-Grid III Series Straight Through Hole PCB Header characterized by its 10 male contacts arranged in 2 rows with a 2.54 mm pitch.

This shrouded connector features brass contacts with tin plating, designed for wire-to-board applications and through-hole mounting technology, ensuring robust mechanical stability and reliable electrical performance.

It operates within a temperature range of -55°C to 125°C and supports voltage up to 350 V and current up to 3 A, making it suitable for demanding industrial environments. The tail pin length of 2.9 mm aids precise solder termination, while the shrouded design offers protection and secure mating.

This PCB header is widely employed in electronics manufacturing, PCB assembly, and power connector systems, facilitating secure locking housing compatibility within the Molex C-Grid III family.

Features 10 male contacts arranged in 2 rows with 2.54 mm pitch. Constructed with brass contacts plated with tin for optimal conductivity and corrosion resistance. Designed for through-hole mounting allowing strong mechanical and electrical connection.

Operates within a temperature range of -55°C to 125°C for versatile application. Rated for a voltage of up to 350 V and current of 3 A ensuring high performance. Tail pin length of 2.9 mm facilitates secure soldering on PCBs.

Shrouded housing protects contacts and improves connector alignment and retention. Suitable for industrial electronics, power connectors, and PCB assembly applications. Compatible with locking housings in the Molex C-Grid III range for secure connections.

This product is ideal for use in industrial electronics and manufacturing settings, enabling reliable wire-to-board connection with outstanding mechanical and electrical integrity. Browse the Molex brand collection and EnvMart’s electronics connectors category for further options.
