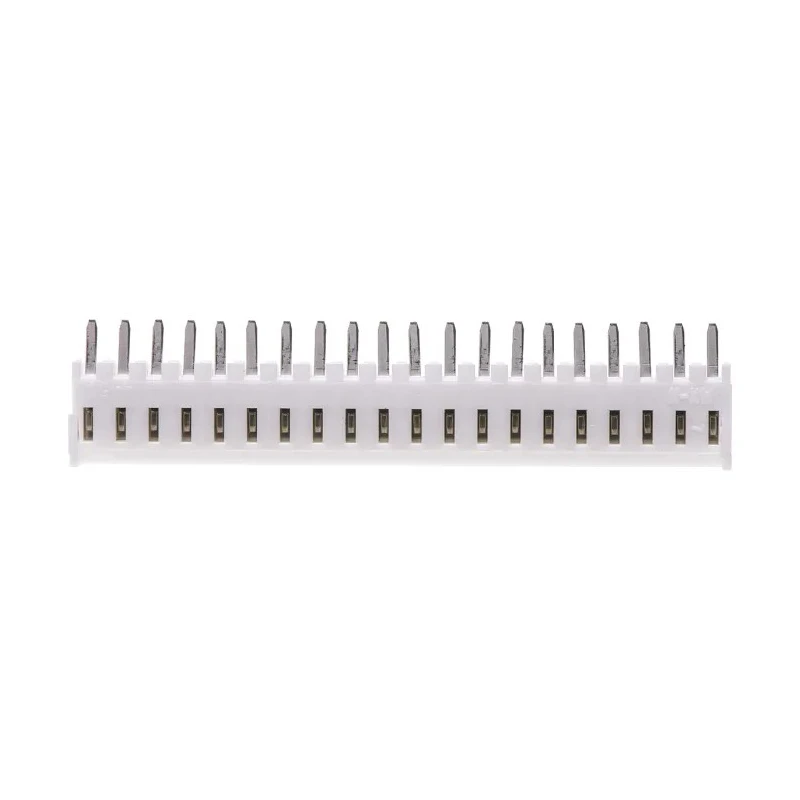

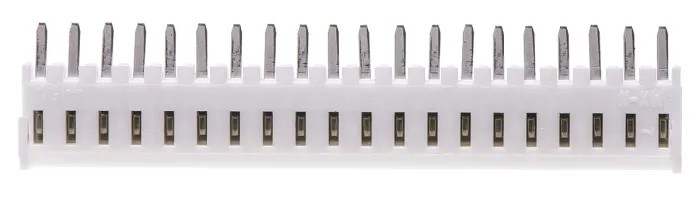

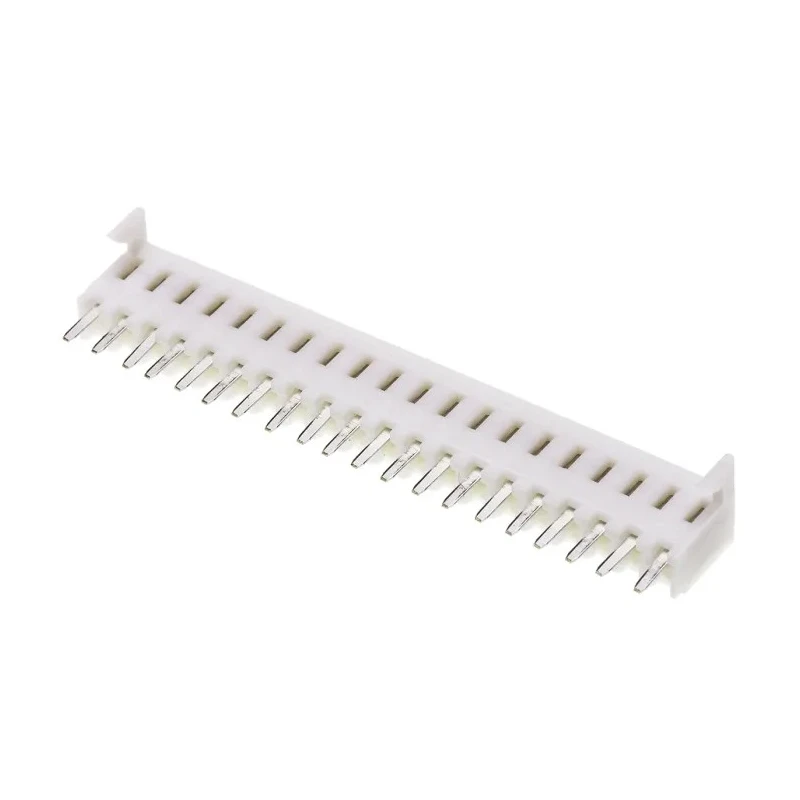

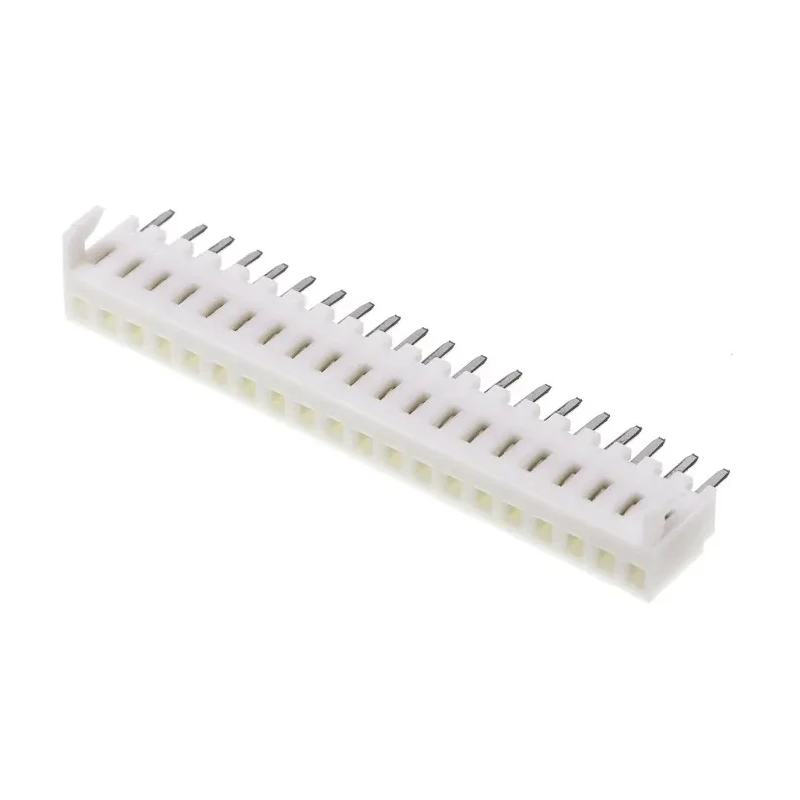

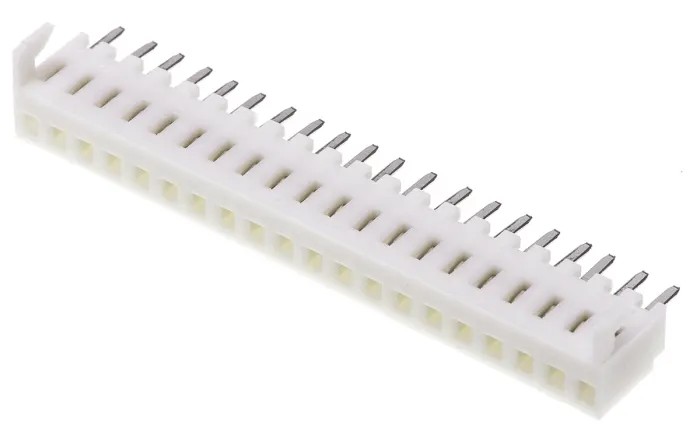

Molex KK 254 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch Solder 22-18-2201

Molex 22-18-2201 KK 254 Series Straight Through Hole PCB Socket is a 20-contact, one row, 2.54 mm pitch socket designed for signal board-to-board connector applications. Constructed with a housing made of nylon and female contacts made of brass with gold plating, it ensures reliable electrical connection and durability under various environmental conditions.

This socket supports through-hole mounting and straight orientation, enabling secure solder termination on printed circuit boards. It is rated for a maximum operating voltage of 250 V and can safely carry currents up to 2.5 A, making it suitable for low to moderate power electronic assemblies.

Its operating temperature range from -40°C to 105°C permits functionality in diverse industrial, laboratory, and commercial electronics environments. This product integrates well within electronics manufacturing, prototyping, and repair applications where reliable board-to-board connections are critical.

The socket is part of the KK 254 Series known for compatibility with KK Pin Header Series and associated male SL terminals, facilitating system modularity and ease of assembly. Features 20 female brass contacts plated with gold.

Durable nylon housing for insulation and mechanical strength. Rated up to 2.5 A current and 250 V voltage. Straight orientation and through-hole mounting for robust PCB mounting. Broad temperature range from -40°C to 105°C for diverse use cases.

Compatible with KK Pin Header Series and male SL terminals. No explicit standards or approvals declared.

This PCB socket caters to demanding electronics manufacturing and assembly requirements, addressing precision connectivity needs in the electronics components sector. EnvMart's collection of PCB Sockets includes this trusted component essential for high-quality electrical and signal connections.
