| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C39-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 6mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 39V |
| Zener Type | Silicon Planar |

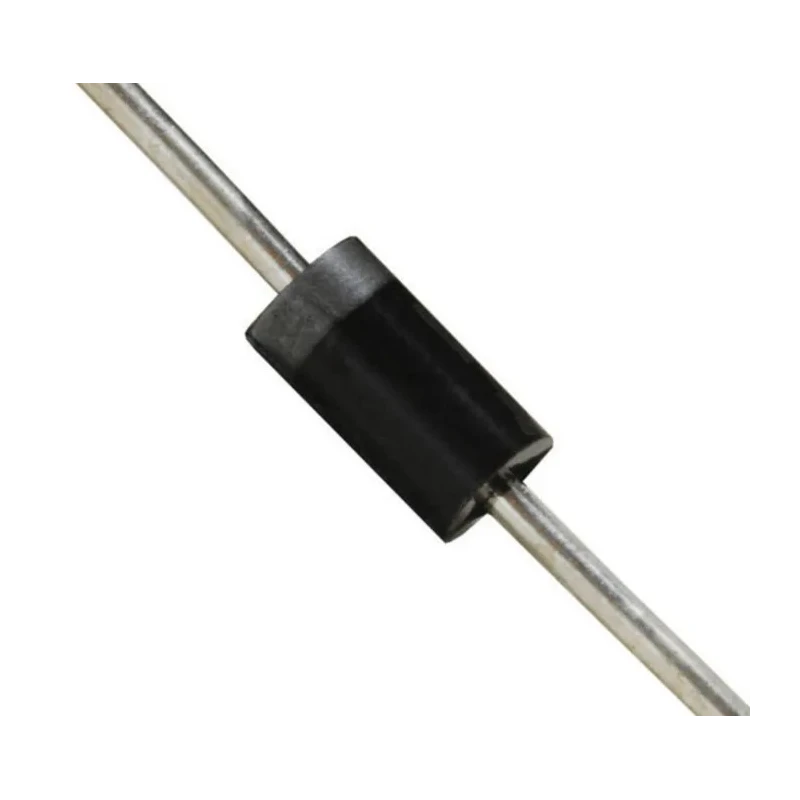

The Vishay BZX85C39-TAP is a silicon planar Zener Diode designed for accurate voltage regulation applications. It operates at a nominal Zener voltage of 39 V and can dissipate maximum power of 1.3 watts, making it suitable for high-power clipping and voltage stabilization circuits.
This diode features a single configuration in a through hole 2-pin DO-41 package, facilitating easy PCB mounting and robust connections. Its operating temperature range spans from -55°C to 175°C, ensuring reliable operation across demanding industrial and automotive environments.
With a tight voltage tolerance of ±2%, the BZX85C39-TAP delivers consistent voltage regulation. It has a test current of 6 mA and features a low maximum reverse leakage current of 500 nA. Manufactured under RoHS guidelines, this halogen-free and lead (Pb) free diode supports compliance needs for environmentally sensitive applications.
The diode meets the automotive standard AEC-Q101, confirming its suitability for automotive electronics and other rugged applications. Compact dimensions of 4.1 mm length and 2.6 mm height enable integration into compact designs.
Single diode configuration with 2-pin DO-41 package. Nominal Zener voltage rating at 39 V with ±2% tolerance. Maximum power dissipation of 1.3 watts for stable performance. Operating temperature range from -55°C to 175°C for reliable use.
Silicon planar Zener type ensures low leakage and stable voltage. Test current of 6 mA with maximum reverse leakage current of 500 nA. Halogen-free and lead (Pb) free compliant under RoHS standards. Complies with automotive standard AEC-Q101 for enhanced ruggedness.
Compact dimensions: 4.1 mm length and 2.6 mm height. Designed for high-power clipping and voltage stabilization circuits.
This product is ideal for industrial electronics, automotive systems, high-power voltage stabilization circuits, and other semiconductor applications requiring precise voltage regulation. Explore the Vishay range on EnvMart for trusted semiconductor components.
