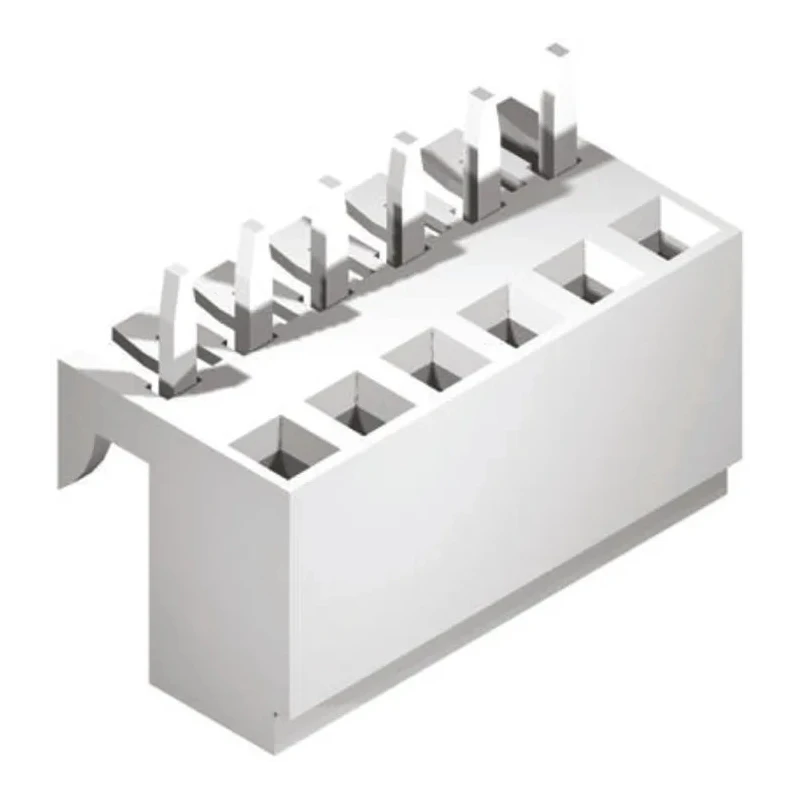

Molex KK 254 Series Straight Through Hole PCB Socket 14-Contact 1 Row 2.54 mm Pitch Solder 38-00-1404
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Provides reliable board-to-board signal connection with a 2.5A current rating.
- Constructed with a nylon housing to ensure durability and insulation.
- Female contact gender made from bronze with tin plating for corrosion resistance.
- Operates within a temperature range of -40°C to 105°C, suitable for harsh environments.
- Features a straight orientation for easy PCB integration and maintenance.
- Rated for 250V voltage use, ensuring compatibility with various electronic circuits.
- Designed for through-hole mount type enabling secure physical and electrical connection.
- No standards approvals are indicated, designed primarily for industrial electronic applications.
Product Description
Molex 38-00-1404 is a high-quality PCB socket from the KK 254 Series, engineered for electronic components requiring a 14-contact, one-row socket with a precise 2.54 mm pitch and through-hole solder termination. This PCB socket supports board-to-board signal applications with a rated current of 2.5A and voltage of 250V, making it suitable for various industrial and electronic manufacturing uses.
The socket’s housing is molded from tough nylon material providing excellent electrical insulation and mechanical strength. Its female contacts are made of bronze and plated with tin to resist corrosion and ensure long-lasting electrical performance under operating temperatures ranging from -40°C to 105°C. The straight orientation facilitates connection reliability and ease of assembly on printed circuit boards.
This component is particularly useful in industrial, laboratory, and manufacturing electronic equipment where secure and durable PCB interconnections are critical. It facilitates maintenance and replacement of connectors without extensive desoldering operations. The product originates from Mexico and is supplied in a new condition, ensuring fresh factory quality.
Reliable board-to-board signal connection with 14 contacts and 2.54 mm pitch. Durable nylon housing for electrical insulation and mechanical strength. Female bronze contacts plated with tin for corrosion resistance. Operating temperature range from -40°C to 105°C for diverse conditions.
Straight orientation and through-hole solder termination for secure mounting. Rated for 2.5A current and 250V voltage for versatile electronic applications. Manufactured in Mexico with a new product condition guarantee. Explore the Molex KK 254 Series and other PCB Sockets on EnvMart for your electronics component needs, ensuring high-quality and reliable connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket has a current rating of 2.5A, making it suitable for various electronic applications.
It is rated for a voltage of 250V, ensuring compatibility with various electronic circuits.
The operating temperature range for this socket is from -40°C to 105°C, suitable for diverse environmental conditions.
The housing is made from nylon, while the female contacts are constructed from bronze and plated with tin for corrosion resistance.
This socket features 14 contacts, arranged in a single row with a 2.54 mm pitch.
It uses a solder termination type, which is suitable for through-hole mounting on PCBs.
The socket has a straight orientation, facilitating easy integration and maintenance on printed circuit boards.
This PCB socket is manufactured in Mexico, ensuring factory quality.
It is designed for board-to-board signal applications, making it suitable for industrial, laboratory, and manufacturing electronic equipment.
The pitch size of this socket is 2.54 mm, which is standard for many electronic connectors.
This model features a female contact gender, designed for secure connections with compatible male connectors.
The design allows for easy maintenance and replacement of connectors without extensive desoldering operations, enhancing efficiency during repairs.
