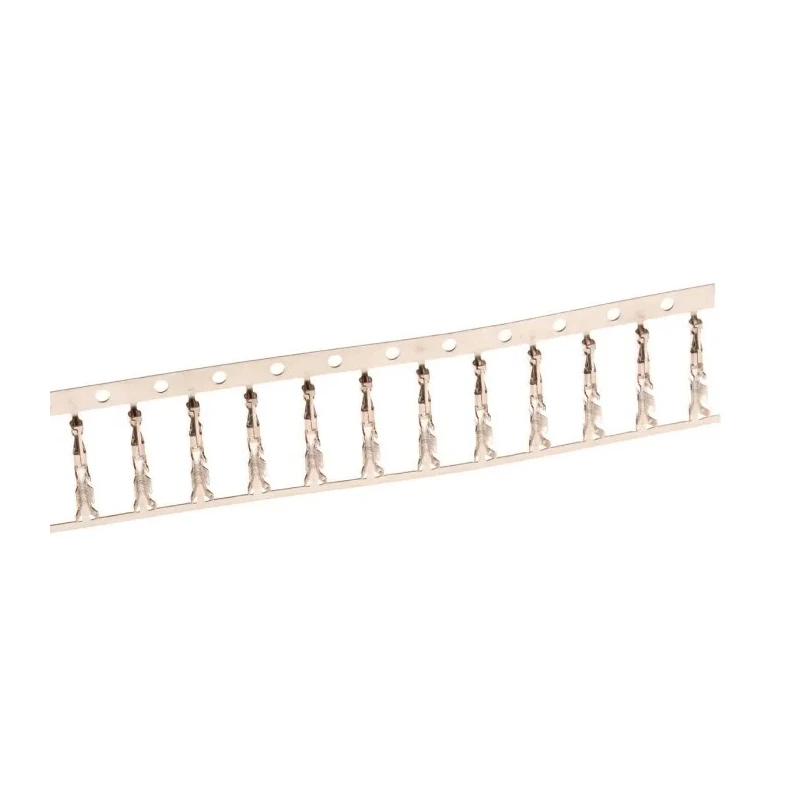

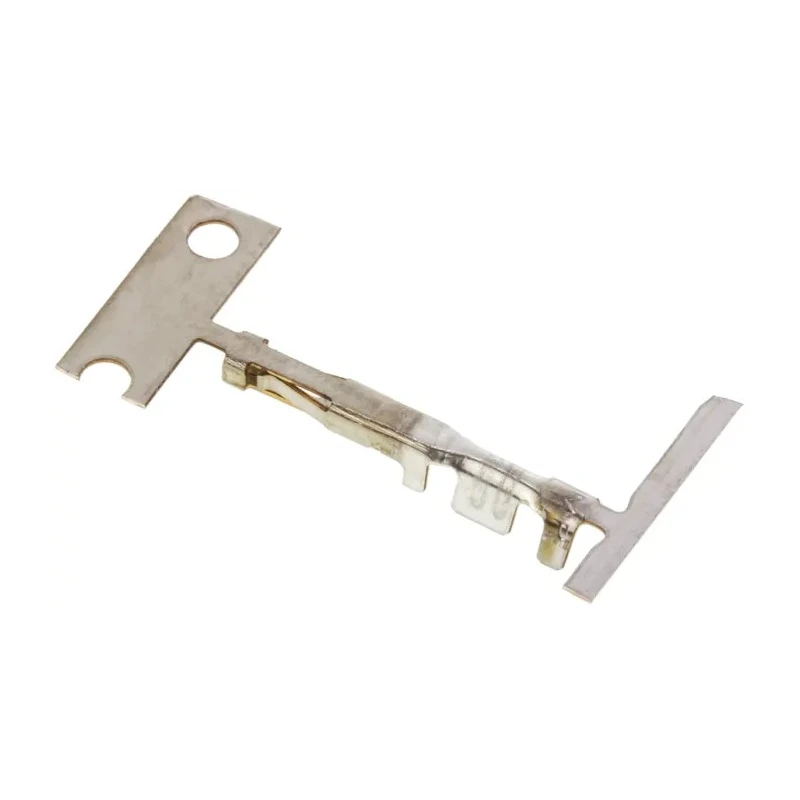

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 5A Current 24-20 AWG 1-794606-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 5A Current 24-20 AWG 1-794606-1

Name: TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 5A Current 24-20 AWG 1-794606-1
Brand: TE Connectivity
SKU: 205034
Price: 0.1 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	5A
Gender	Female
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance mechanism for secure retention in housing
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Supports wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
Rated for a maximum current of 5 amperes for efficient electrical performance.
Gold plated phosphor bronze contact material ensures corrosion resistance.
Terminated using a crimp method for secure mechanical and electrical connection.
Dual beam contact design provides electrical reliability and durability.
Locking lance mechanism for secure retention in connector housing.
Operates reliably in temperatures ranging from -40°C to 105°C.
Suitable for use with Micro MATE-N-LOK connector housings in wire-to-wire and wire-to-board applications.

Product Description

TE Connectivity 1-794606-1 female Crimp Terminal is part of the Micro MATE-N-LOK 3mm connector system, specifically engineered for secure and reliable wire termination in electronic applications. This crimp contact accommodates wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²) and is rated for a maximum current of 5 amperes, supporting efficient electrical conductivity.

Constructed from phosphor bronze and finished with gold plating, this contact offers excellent corrosion resistance and low contact resistance of up to 20 milliohms. The dual beam contact design enhances electrical reliability and durability under various operating conditions.

The crimp termination provides a firm mechanical connection, complemented by a locking lance mechanism that securely holds the contact within the Micro MATE-N-LOK connector housing. Temperature operation ranges from -40°C to 105°C, allowing this connector to be used in harsh environments.

The Micro MATE-N-LOK system features a 3mm centerline design suitable for wire-to-wire and wire-to-board configurations, used extensively in industrial electronics, consumer devices, and specialized applications such as LED lighting where space and reliability are critical.

Supports wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²). Maximum current rating of 5A for stable electrical performance. Gold plated phosphor bronze contacts for durability and corrosion resistance. Dual beam contact design ensures robustness and reliable connectivity.

Secure locking lance mechanism prevents disconnection or loosening within housings. Wide operating temperature range from -40°C to 105°C. Tailored for Micro MATE-N-LOK 3mm connector systems. Manufactured with precision in the United States adhering to quality standards.

This product is well-suited for demanding industrial and commercial applications, including manufacturing, electronics assembly, lighting, and other precision wiring installations. Explore TE Connectivity products and related connectors on EnvMart for comprehensive solutions in electronic interconnects.
