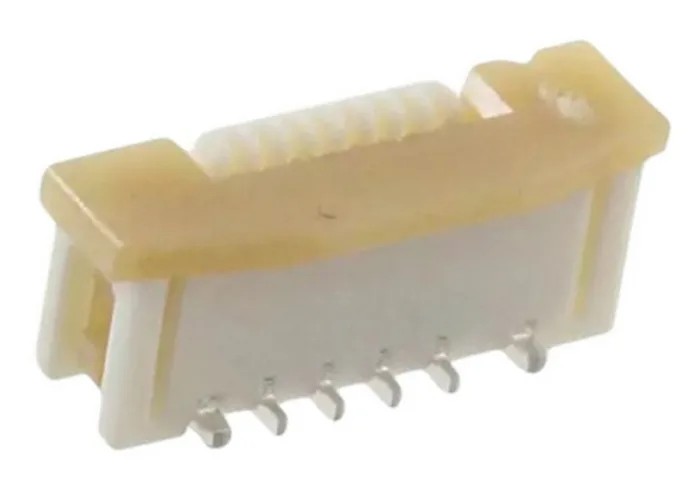

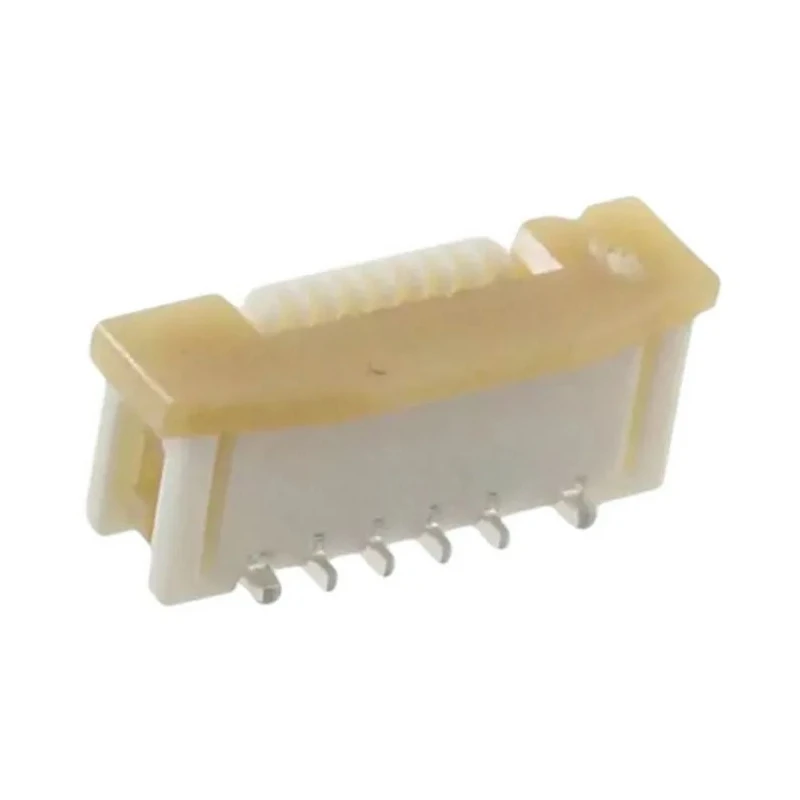

Molex 1 mm Pitch 8 Way Straight Female FPC Connector, Solder, 50V, 500mA 52559-0853
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52559 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Vertical |
| JAE 0.5mm Pitch 8 Way Straight Female FPC Connector, ZIF Vertical ContactBrand | JAE |
Key Features
- Features phosphor bronze contact material ensuring durability and conductivity.
- Gold over nickel contact plating provides corrosion resistance and reliable electrical contact.
- Supports 500mA current at 50V for low power electronic applications.
- Designed with a vertical contact position and straight orientation for compact PCB mounting.
- Nylon housing material enhances mechanical stability and insulation.
- Operates within temperature range of -20°C to 85°C suitable for various industrial environments.
- Includes solder tabs for secure PCB retention and strain relief on solder tails.
- Locking mechanism and slide type actuator provide zero insertion force and secure cable connections.
Product Description
Molex 52559-0853 is a 1 mm pitch 8 way straight female FPC Connector designed for surface mount technology with solder termination, delivering secure and reliable connections in compact electronic assemblies.
The connector features phosphor bronze contacts with gold plating over nickel, enhancing durability and electrical integrity. The nylon housing offers mechanical protection while maintaining insulation.
Its zero insertion force (ZIF) slide type actuator facilitates easy insertion and secure retention of flexible printed circuits, minimizing wear with repeated use. The locking mechanism ensures the FPC remains firmly connected even under mechanical stress.
The connector supports a maximum current of 500mA at 50V, making it suitable for low power signal and data transmission applications. Operating temperature range from -20°C to 85°C allows use in a wide range of industrial, automotive, consumer electronics, medical, and telecommunication devices.
Solder tabs on the base provide additional PCB retention and relieve strain on solder tail joints, improving mechanical stability during operation and assembly. Phosphor bronze contacts with gold over nickel plating for corrosion resistance.
Nylon housing for mechanical strength and insulation. ZIF slide actuator for easy insertion and secure FPC connection. Locking mechanism ensures contact retention under vibration or movement. Operating range from -20°C to 85°C suits diverse industrial applications.
Supports a current rating of 500mA and voltage rating of 50V for signal circuits. Solder tabs improve PCB retention and strain relief on solder tails. Compact 1 mm pitch design ideal for high-density PCB layouts. Suitable for automotive navigation systems, digital cameras, medical monitoring equipment, smartphones, tablets, and more.
This high-quality connector offers a reliable solution for applications requiring miniature, secure, and durable FPC interconnections often found in modern electronics manufacturing environments.
Explore more connectors and electronic components for your industrial and commercial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 500mA at a voltage rating of 50V, making it suitable for low power signal and data transmission applications.
The connector features phosphor bronze for the contacts, with gold over nickel plating for corrosion resistance. The housing is made of nylon, providing mechanical stability and insulation.
It has a pitch size of 1 mm, which is ideal for high-density PCB layouts.
The operating temperature range is from -20°C to 85°C, allowing it to be used in various industrial environments.
This connector includes a locking mechanism that ensures the flexible printed circuit remains firmly connected even under mechanical stress, enhancing reliability during use.
It uses solder termination, which provides secure connections for PCB mounting.
This model features 8 contacts, designed for efficient signal transmission in compact electronic assemblies.
The connector is designed with a straight orientation, suitable for compact PCB mounting.
It is suitable for applications in automotive navigation systems, digital cameras, medical monitoring equipment, smartphones, and tablets.
The contact position is vertical, which aids in the secure connection of flexible printed circuits.
Yes, it includes solder tabs that provide additional PCB retention and relieve strain on solder tail joints, improving mechanical stability during operation.
The connector is manufactured by Molex, a recognized brand in the electronics components industry.
