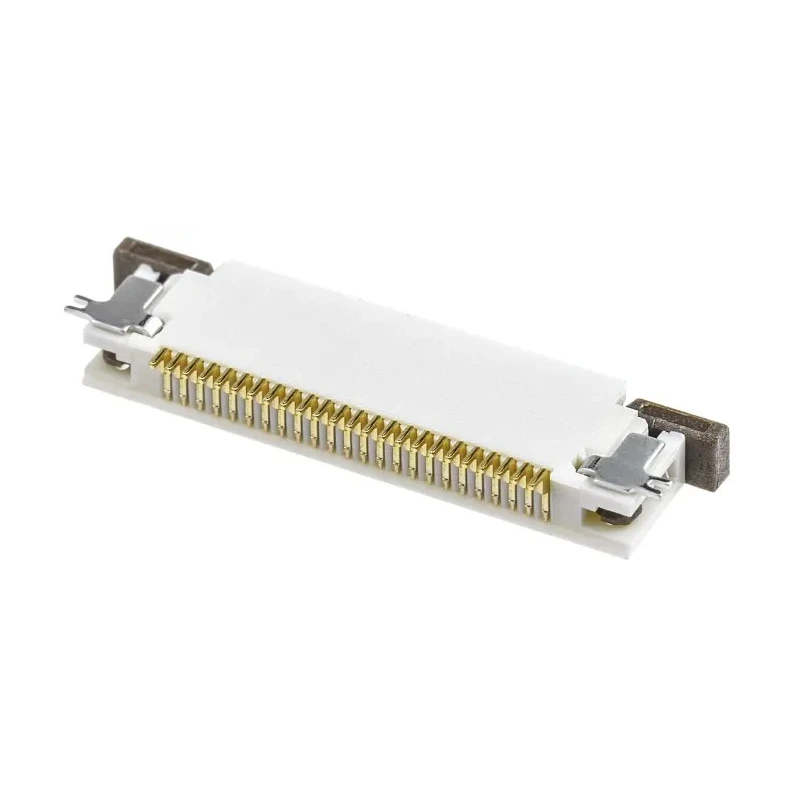

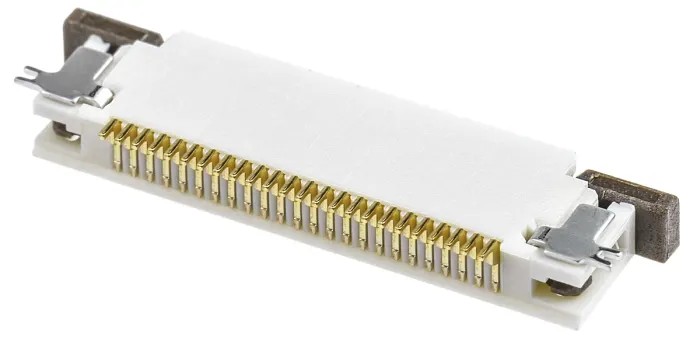

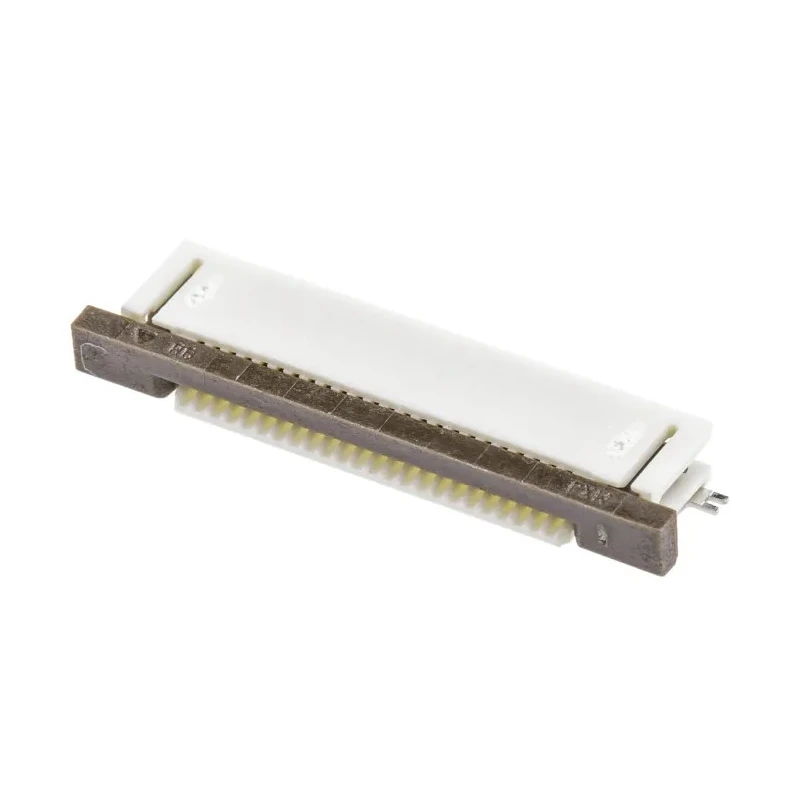

Molex 0.5 mm Pitch 24 Way Right Angle Female FPC Connector, Solder 52437-2471

Molex 52437-2471 0.5 mm Pitch 24 Way Right Angle Female FPC Connector is a high-precision electronic component designed for compact and reliable interconnections in signal and data applications. It features a zero insertion force (ZIF) right angle mount, allowing for easy and secure connection of flat flexible cables (FFC) in space-constrained environments.

This FPC connector utilizes a slide type actuator that locks the cable securely while minimizing wear from repeated cycles, making it suitable for applications demanding repeated insertion and removal. The contacts are made of phosphor bronze and plated with gold over nickel to ensure excellent conductivity and resistance to corrosion.

The connector supports a current rating of 500mA and a voltage rating of 50V, meeting the requirements of various electronics including automotive navigation systems, consumer devices, medical equipment, and communication devices. Its nylon housing provides durability and electrical insulation. Solder termination and additional solder tabs on the base ensure secure PCB retention and strain relief for reliable long-term performance.

Operating temperature range from -40°C to 85°C allows this component to function reliably under varied environmental conditions. The product contains 24 contacts arranged in a single row with bottom contact positioning and a right angle orientation, optimized for tight packaging.

Manufactured in Japan, this connector meets demanding industrial standards and is supplied new ready for deployment in manufacturing and assembly processes. Zero insertion force right angle SMT mount design. Slide type actuator for secure and easy cable insertion.

Phosphor bronze contacts with gold over nickel plating. Rated 500mA current and 50V voltage. Nylon housing with solder tail terminations and solder tabs for PCB strain relief. Operating temperature from -40°C to 85°C. 24 contacts in one row with bottom contact position.

Ideal for automotive, consumer, medical, and communication electronics. Explore more high-quality FPC Connectors from Molex and other brands on EnvMart for your electronic assembly needs.
