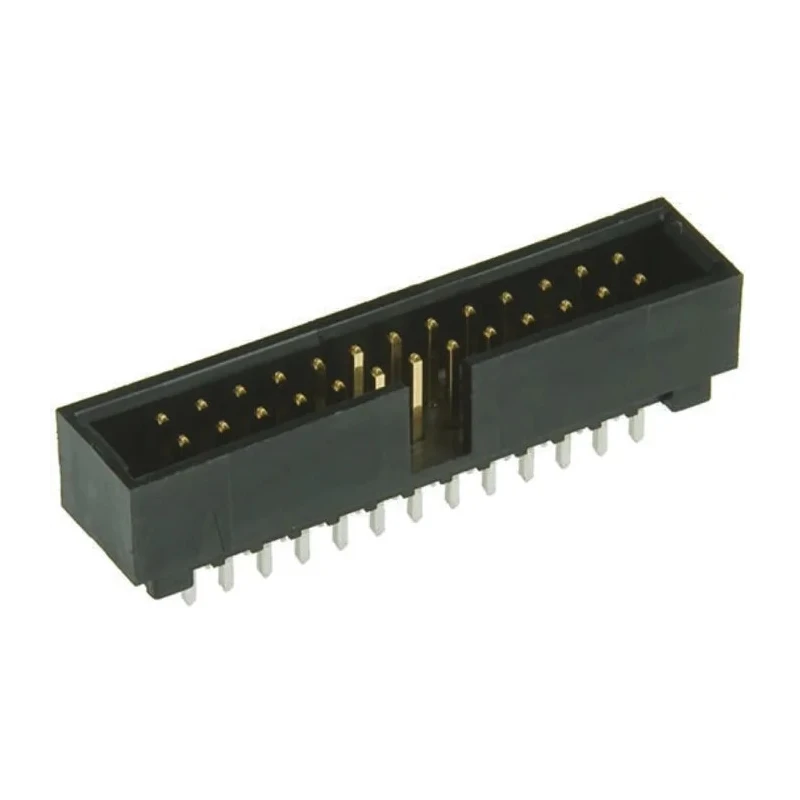

Molex C-Grid Series Shrouded 34 Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Header 70246-3404

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid Series Shrouded 34 Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Header 70246-3404

Name: Molex C-Grid Series Shrouded 34 Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Header 70246-3404
Brand: Molex
SKU: 206444
Price: 3.97 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	2.5A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Constructed with polybutylene terephthalate housing for durability.
Phosphor bronze male contacts plated with gold for optimal conductivity.
Supports a current rating of 2.5 amps and voltage rating of 250 volts.
Features a through-hole mount with solder termination for secure PCB attachment.
Designed to operate within a temperature range of -55°C to 120°C.
Tail pin length of 3.43 mm and mating pin length of 2.54 mm ensure precise connections.
Shrouded design enhances connector protection and alignment.
Compatible with Molex 70058 Series terminals for versatile applications.

Product Description

Molex 70246-3404 C-Grid Series Straight Through Hole PCB Header is engineered for robust and reliable PCB applications requiring a shrouded connector with 34 male contacts arranged in 2 rows and spaced at 2.54 mm pitch. The vertical dual in-line (DIL) header features a polybutylene terephthalate housing that provides mechanical strength and heat resistance indispensable for industrial and electronic use.

This PCB header supports currents up to 2.5A and voltages up to 250V, making it suitable for a wide range of electrical and electronic circuitry requiring dependable wire-to-board connections. Its phosphor bronze contacts are gold-plated with a plating depth of 0.38 μm to ensure optimal conductivity and corrosion resistance.

The product mounts through-hole style with solder termination, featuring a tail pin length of 3.43 mm and a mating pin length of 2.54 mm facilitating precise and stable connections. The shrouded design improves protection against misalignment and mechanical damage during assembly and operation.

Operating temperature range from -55°C to 120°C makes this header appropriate for demanding environments including industrial automation, manufacturing equipment, and communication devices. The header mates with Molex 70058 Series terminals enabling flexible integration into existing systems.

Durable polybutylene terephthalate housing for mechanical stability. Gold-plated phosphor bronze contacts for reliable conductivity. 2.5A current and 250V voltage ratings supporting various electronics. Through-hole solder mount providing strong PCB attachment.

Wide operating temperature range from -55°C to 120°C. Shrouded connector design for enhanced protection. Compatible with Molex 70058 Series terminals for system flexibility. Tail and mating pin lengths optimized for secure connections.

This product is ideal for industrial, electronics manufacturing, and communication fields requiring rugged, high-quality PCB connection solutions. Discover more such reliable connectors in the PCB Headers category of EnvMart for your projects.
