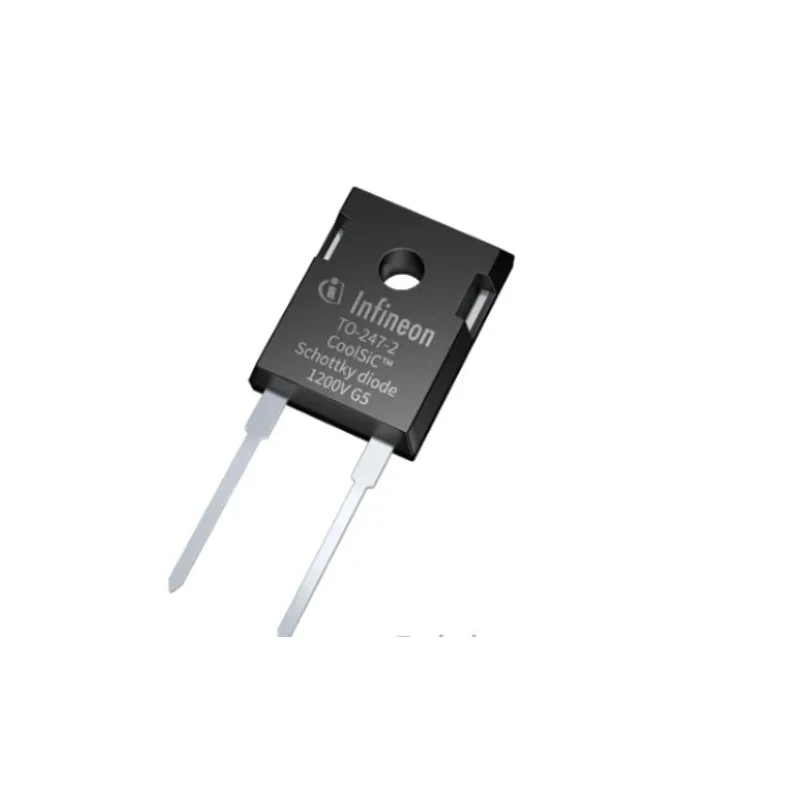

Infineon 1200 V 30 A 5th Generation CoolSiC Schottky Diode Single Rectifier 2-Pin TO-247 IDWD30G120C5XKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Length | 40.21mm |
| Model | IDWD30G120C5XKSA1 |
| Width | 15.8mm |
| Mount Type | SMD |
| Series | 5th Generation CoolSiC 1200V Schottky Diode |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JEDEC47/20/22 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 248μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 240A |
| Maximum Forward Voltage Vf | 1.65V |
Key Features
- Maximum continuous forward current of 30 A ensures robust performance.
- Peak reverse repetitive voltage rating at 1200 V supports high voltage applications.
- Low maximum forward voltage of 1.65 V reduces power losses.
- Operates reliably from -55°C up to a maximum of 175°C ambient temperature.
- High surge current capability with peak non-repetitive forward surge current of 240 A.
- Designed as a single diode rectifier with Schottky type configuration for fast switching.
- Package features a TO-247 2-pin format suitable for surface mount applications.
- Compliance with JEDEC standards JEDEC47/20/22 guarantees quality and reliability.
Product Description
Infineon IDWD30G120C5XKSA1 is a 5th Generation CoolSiC Schottky diode designed for high-efficiency power applications. This 1200 V, 30 A rated device is housed in a real 2-pin TO-247 package, enabling easy replacement of bipolar silicon diodes and providing enhanced safety with increased creepage and clearance distances of 8.7 mm, suitable for harsh and high-pollution environments.
The diode features very low forward voltage drop (max. 1.65 V) and zero reverse recovery current, which significantly improves efficiency and thermal performance in power circuits. Its temperature independent switching behavior and tight forward voltage distribution make it ideal for demanding industrial and commercial electronics, such as 3-phase conversion systems, Vienna rectifiers, and PFC boost converters combined with Si IGBT or super-junction MOSFETs.
With a robust operating temperature range from -55°C to 175°C and compliance with JEDEC standards 47, 20, and 22, this device ensures reliability and durability. The high surge current capability (240 A peak non-repetitive) offers tolerance against transient conditions common in power applications.
The TO-247 package supports surface mount technology (SMD), with dimensions of 40.21 mm length and 15.8 mm width, and includes 2 pins configured as a Schottky diode rectifier. It is not intended for automotive standard applications but excels in general industrial, laboratory, and power electronics usage.
Maximum continuous forward current: 30 A. Peak reverse repetitive voltage: 1200 V. Maximum forward voltage: 1.65 V. Operating temperature range: -55°C to 175°C. Peak non-repetitive surge current: 240 A. Package: TO-247 2-pin surface mount (SMD).
Compliance with JEDEC 47/20/22 standards. Ideal for high-efficiency rectification in industrial power systems. Explore more products in Schottky Diodes & Rectifiers at EnvMart for your semiconductor component needs.
