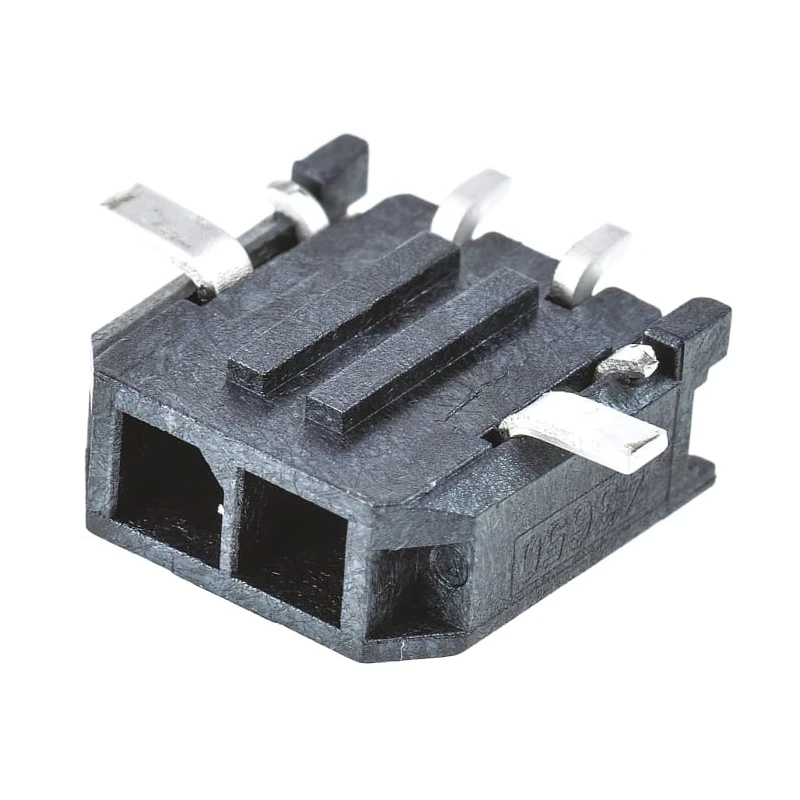

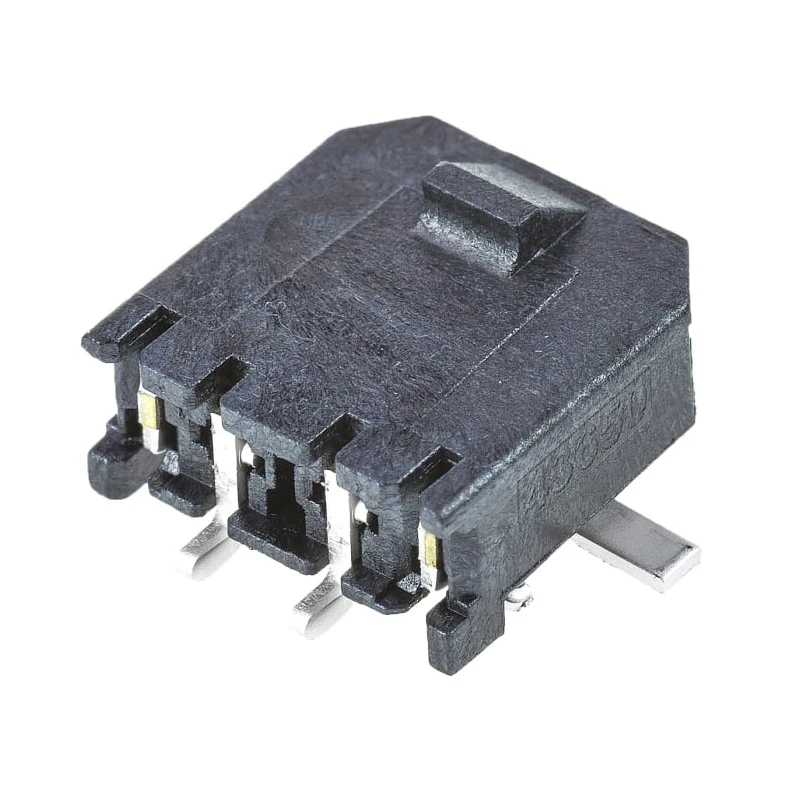

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contact, 3 mm Pitch, 1 Row, Shrouded 43650-0214

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contact, 3 mm Pitch, 1 Row, Shrouded 43650-0214

Name: Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contact, 3 mm Pitch, 1 Row, Shrouded 43650-0214
Brand: Molex
SKU: 206478
Price: 3.32 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	5A
Mount Type	Surface
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

High current carrying capacity up to 5A in a compact footprint.
High temperature thermoplastic housing suitable for IR reflow soldering.
Positive latching locking ramp ensures secure mating and prevents accidental disconnection.
Fully isolated dual beam brass terminals with gold plating for reliable electrical performance.
Solder tabs provide secure mechanical connection to the PCB surface.
Wide operating temperature range from -40°C to 105°C.
Designed for wire-to-board power connector applications with surface mount type.
Shrouded design improves connector safety and durability.

Product Description

Molex 43650-0214 Micro-Fit 3.0 Series Right Angle Surface PCB Header features 2 contacts with a 3 mm pitch arranged in a single row. This shrouded header is designed for secure and reliable wire-to-board connections in electronic assemblies. The housing is made from high temperature UL 94V-0 Liquid Crystal Polymer, allowing it to withstand reflow soldering temperatures of up to 265°C and operational temperatures ranging from -40°C to 105°C.

Designed with robust brass contacts plated in gold, the connector enables a maximum current rating of 5A and voltage rating of 250V. Its surface mount design includes solder tabs to ensure strong mechanical retention on the PCB. The positive latching feature with a locking ramp prevents accidental disconnections, enhancing the reliability in demanding environments.

This Micro-Fit 3.0 header is part of Molex's compact power distribution system, providing high current capability in a small footprint, making it ideal for use in military COTS, renewable energy systems such as solar power, consumer appliances like dryers and refrigerators, data communications equipment including routers and servers, medical devices, telecommunications infrastructure, and gaming terminals.

The housing fully isolates the contacts, reducing arcing and improving safety. The design complies with glow wire standards, promoting electrical safety in residential or commercial applications.

High current carrying capacity in a small footprint. High temperature housings suitable for IR reflow soldering. Positive latching ensures secure mating connections. Fully isolated dual beam brass contacts with gold plating.

Solder tabs provide secure mechanical fixation to PCB. Wide temperature operational range (-40°C to 105°C). Compact wire-to-board SMT connector system. Shrouded housing improves electrical safety and durability. Rated for 5A current and 250V voltage applications.

This Molex Micro-Fit 3.0 series PCB header is an essential component for reliable power connections in industrial, commercial, and consumer electronics. Explore similar PCB headers and connectors in the Electronics & Electricals > Connectors > PCB Headers category.
