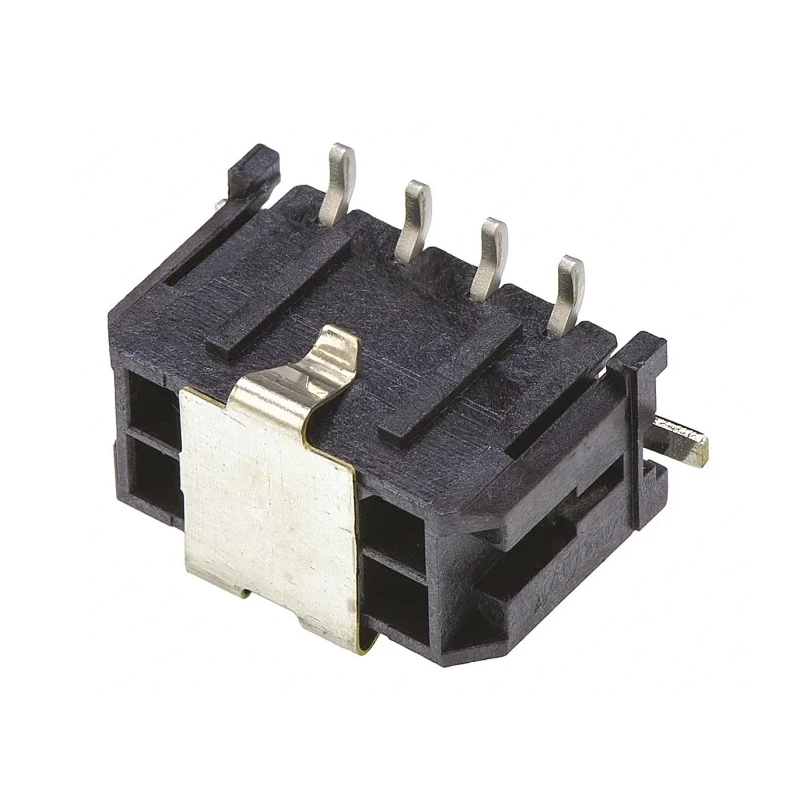

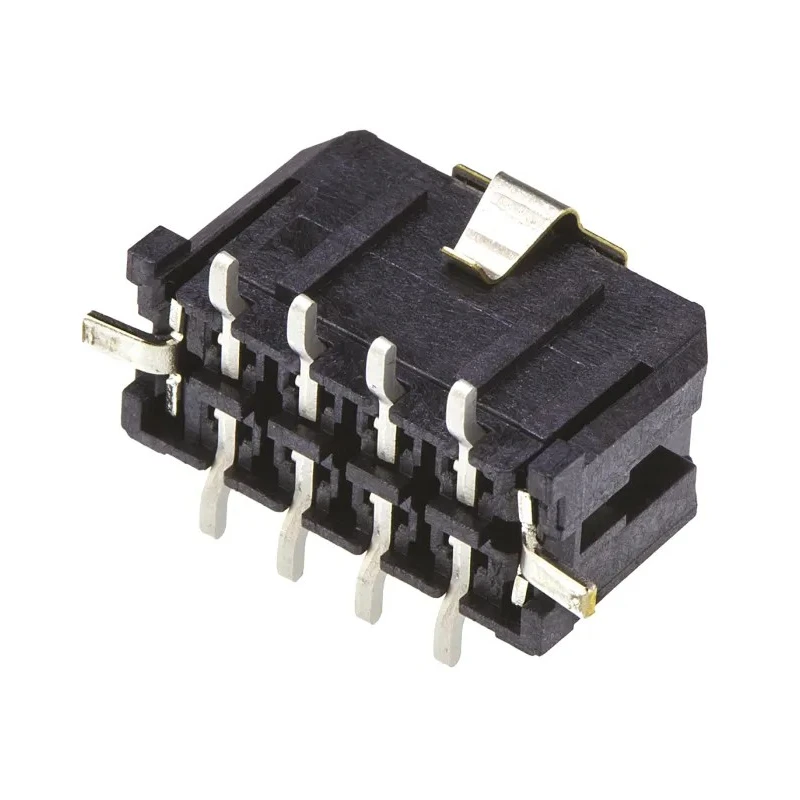

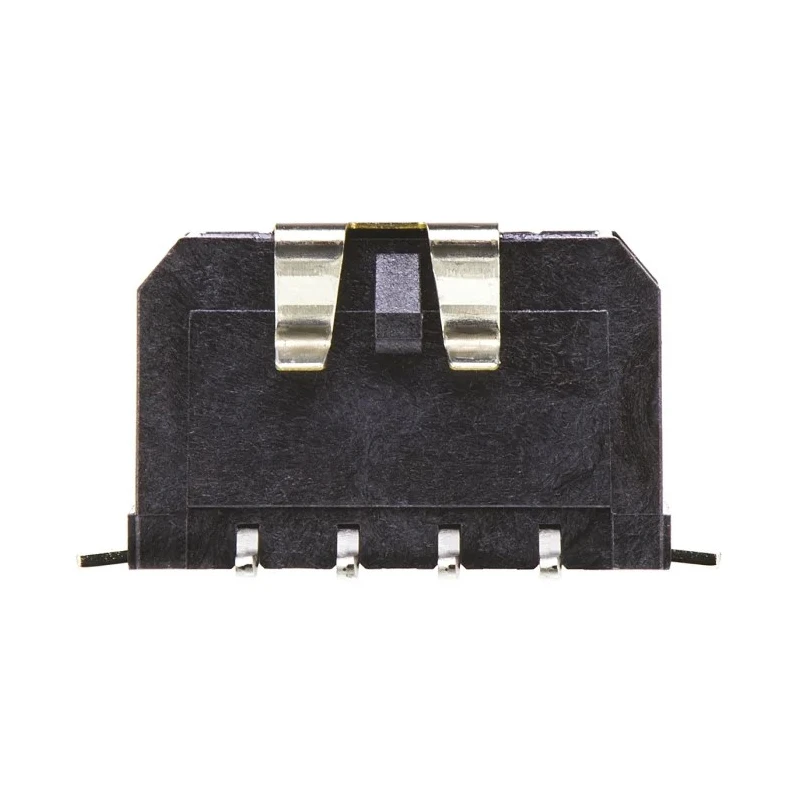

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 8 Contacts 3 mm Pitch 2 Row Shrouded 43045-0819

Molex 43045-0819 Micro-Fit 3.0 Series Straight Surface PCB Header features 8 contacts with a 3 mm pitch arranged in 2 rows. The connector is shrouded and designed for surface mount on PCBs, providing a durable wire-to-board connection with a current rating of 5A and voltage rating up to 250V. Its high-temperature thermoplastic housing allows it to withstand IR reflow soldering processes up to 265°C, making it suitable for robust industrial and commercial applications.

The header incorporates positive latching with a locking ramp on the housing, ensuring secure mating, and preventing accidental disconnection during operation. The gold-plated brass contacts guarantee reliable conductivity and resistance to corrosion, supporting sustained electrical performance even in demanding conditions.

The solder tabs integrated into the connector design facilitate stable attachment to PCBs, enhancing assembly reliability. This Micro-Fit 3.0 connector is engineered for a wide range of industries including military commercial off-the-shelf (COTS) equipment, solar power systems, household consumer products like dryers and refrigerators, data communications infrastructure such as routers and servers, medical devices, telecommunications, and gaming terminals.

The connector operates efficiently over a temperature range of -40°C to 125°C and has a mating pin length of 3 mm. Its shrouded, straight orientation ensures mechanical protection for the contacts and easy integration into electronic assemblies.

High current capacity of 5A in a space-saving Micro-Fit 3.0 form factor. Durable high-temperature thermoplastic housing UL 94V-0 rated. Positive latching mechanism secures connector engagement. Gold-plated brass contacts provide corrosion resistance.

Solder tabs for reliable surface mounting on PCBs. Wide temperature range of -40°C to 125°C supports diverse environments. Shrouded design protects contacts and assures secure connections. Versatile usage across military, solar, consumer appliances, data comms, medical, telecom, and gaming sectors.
