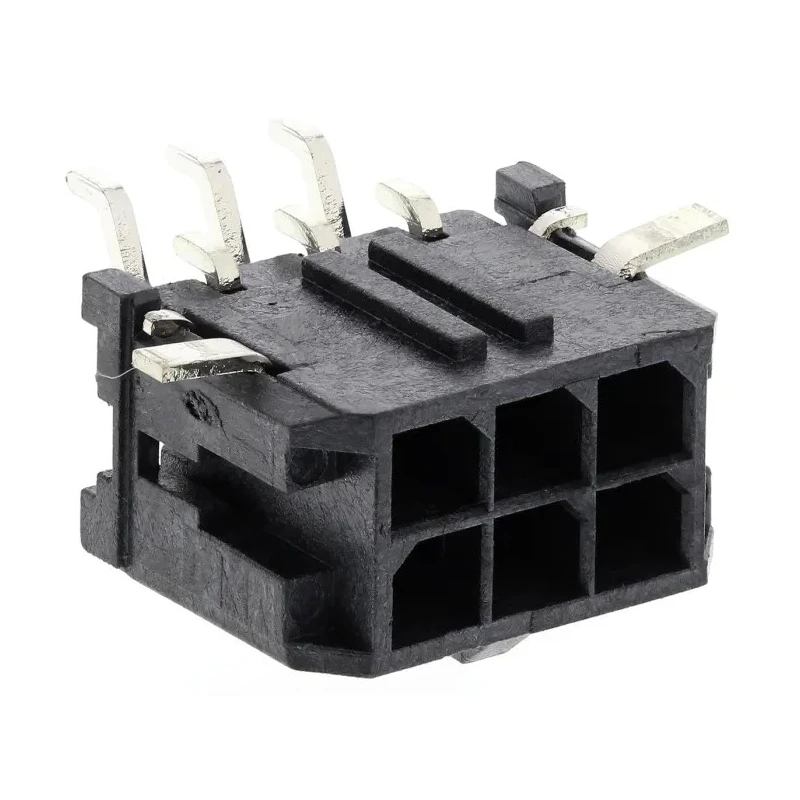

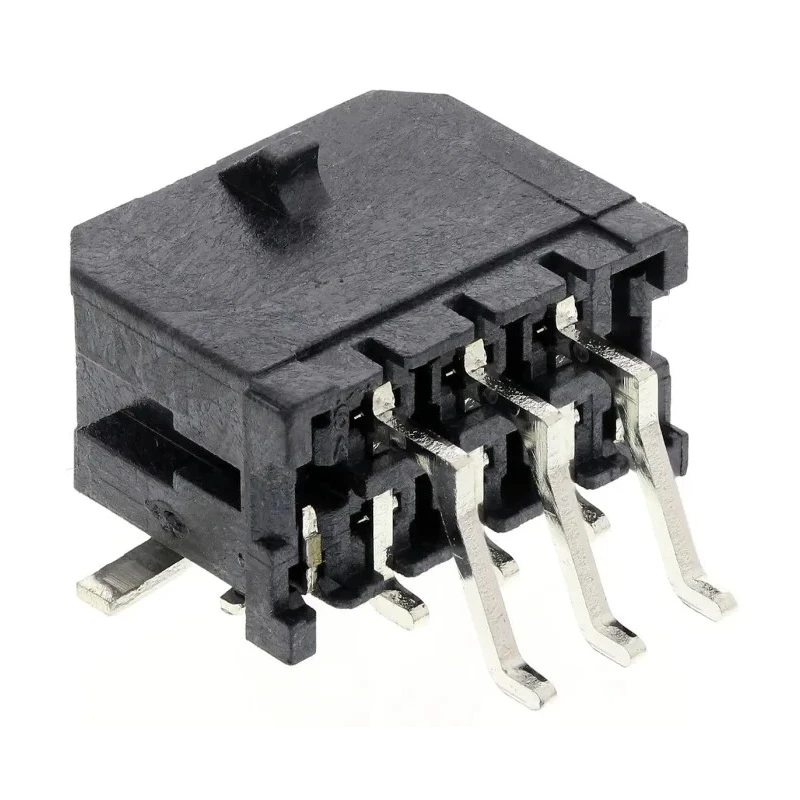

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0609

Molex 43045-0609 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a high-performance connector designed for compact power distribution on surface mount PCBs. Featuring 6 male contacts arranged in 2 rows with a precise 3 mm pitch, this shrouded header offers secure wire-to-board connectivity in a compact form factor.

The header can carry currents up to 5A and operates up to 250V, making it suitable for a wide range of low to medium power applications. The housing is manufactured from high-temperature UL 94V-0 liquid crystal polymer thermoplastic that withstands soldering temperatures up to 265°C during infrared reflow soldering processes.

The connector's brass contacts are plated with tin and fully isolated within the housing to reduce arcing and ensure reliable electrical performance. Solder tabs on the connector body provide a firm attachment to the PCB, improving mechanical stability and reducing stress on solder joints.

Additional features include a right angle connector orientation for efficient PCB layout, positive latching with locking ramps to prevent accidental disconnections, and a wide operating temperature range from -40°C to 105°C to support industrial environments.

This PCB header is widely applicable in industries such as military COTS, consumer appliances like dryers and refrigerators, solar power systems, data communications equipment, telecommunications, gaming devices, and medical instrumentation.

The product is new, with no specific approvals or certifications listed. It is a reliable solution for compact power connectors requiring high current capacity in a minimal footprint.

Compact dual row SMT header with a 3 mm pitch for efficient PCB mounting. High current carrying capacity up to 5A for low to mid power applications. Right angle orientation with shrouded housing enhances connection reliability.

Constructed with thermoplastic housing and brass contacts plated with tin for durability. Supports operating temperatures from -40°C to 105°C for versatile uses. Connector system is wire-to-board with solder termination type including solder tabs for secure PCB fixing.

Positive latching design prevents accidental disconnection during operation. Suitable for various industrial uses including consumer electronics, solar power, telecommunications, and medical devices. Explore our Electronics & Electricals category for more advanced PCB Headers and connectors at EnvMart.
