Molex KK 508 Series Straight Through Hole Pin Header, 5 Contacts, 5.08 mm Pitch, 1 Row, Unshrouded, Brass Tin 10-08-1051

Free Delivery in India | Lowest Global Shipping Charges

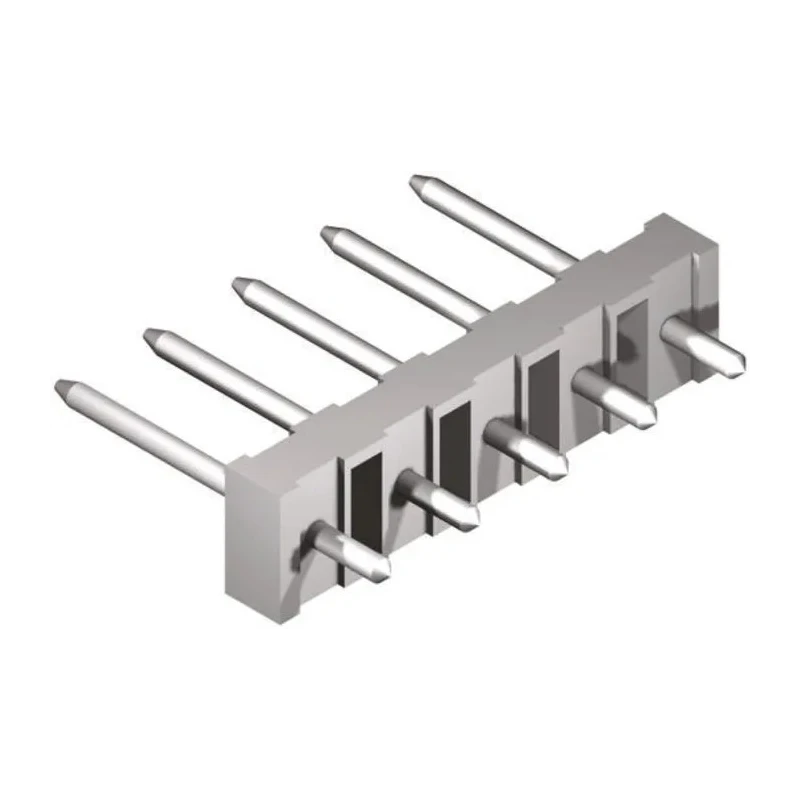

Molex KK 508 Series Straight Through Hole Pin Header, 5 Contacts, 5.08 mm Pitch, 1 Row, Unshrouded, Brass Tin 10-08-1051

Name: Molex KK 508 Series Straight Through Hole Pin Header, 5 Contacts, 5.08 mm Pitch, 1 Row, Unshrouded, Brass Tin 10-08-1051
Brand: Molex
SKU: 206392
Price: 0.82 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	7A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 508
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	5.08mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.94mm

Key Features

Features straight orientation and unshrouded design for easy access.
Constructed with brass contacts plated in tin for reliable conductivity.
Rated for 250 volts and a current capacity of 7 amperes.
Houses nylon material for durability and insulation.
Tail pin length measures 3.94 mm, suitable for solder termination.
Designed for board-to-board and wire-to-board connector systems.
Operates in temperature range from -40°C to 80°C.
Compatible with Molex 3001, 5058 series housings and 3002 PC board connectors.

Product Description

Molex 10-08-1051 is part of the KK 508 Series Straight Through Hole Pin Header featuring 5 contacts arranged in a single row with a 5.08 mm pitch. It is constructed from durable nylon housing and brass contacts plated with tin, ensuring reliable electrical connection and mechanical stability.

This pin header supports a voltage rating of 250 volts and current carrying capacity up to 7 amperes, suitable for moderate power electronic applications. The straight orientation with unshrouded pins facilitates easy insertion and inspection.

The tail pins extend 3.94 mm for secure solder termination on printed circuit boards. Operating temperature ranges from -40°C to 80°C, allowing usage in varied environmental conditions.

Compatible with Molex 3001 and 5058 series housings and 3002 series PC board connectors, this header provides versatility for board-to-board and wire-to-board connections. The nylon housing ensures electrical insulation and mechanical robustness.

Features straight orientation and unshrouded pin design. Brass contacts with tin plating for reliable connectivity. Rated 250V and 7A current capability. Suitable for through hole mounting on PCBs. Operating temperature range of -40°C to 80°C.

Tail pin length of 3.94 mm for soldering. Nylon housing material provides insulation. Compatible with various Molex connector series. Ideal for industrial, electronic assembly, and manufacturing uses.

This Molex KK 508 Series Pin Header model 10-08-1051 is a key component for PCB interconnection systems in industrial and commercial electronic equipment. Its robust construction and wide compatibility make it suitable for industrial, laboratory, manufacturing, and electronic control applications.
