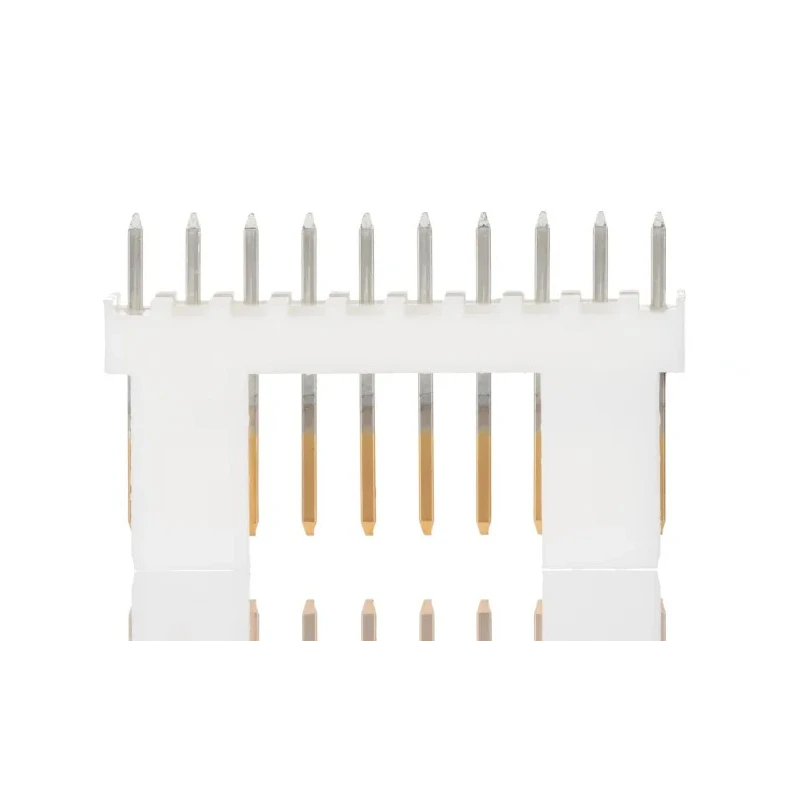

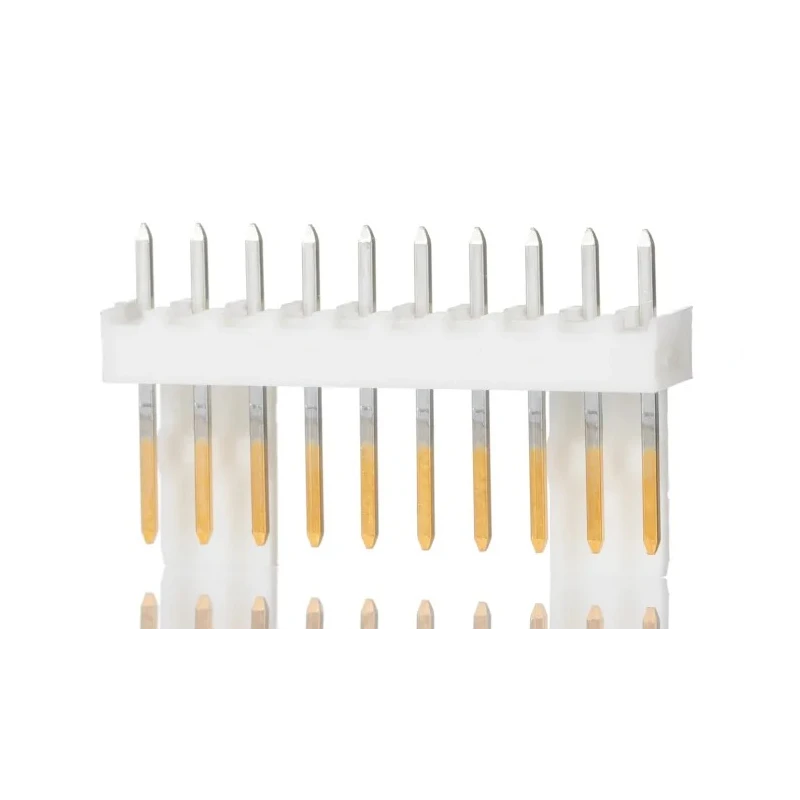

Molex KK 254 Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-29-2101

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 254 Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-29-2101

Name: Molex KK 254 Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-29-2101
Brand: Molex
SKU: 206370
Price: 2.47 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Ireland
Voltage	250V
Brand	Molex
Orientation	Straight
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	3.56mm
Mating Pin Length	2.54mm

Key Features

Features 10 male contacts with gold-plated brass material for excellent conductivity.
Standard 2.54 mm pitch is compatible with most breadboards and PCB designs.
Constructed with a nylon housing material for durability and insulation.
Supports a current rating of 4A and voltage up to 250V for safe usage.
Designed with straight orientation and through-hole mount type for secure soldering.
Operating temperature range from -40°C to 105°C for versatile environmental use.
Tail pin length of 3.56 mm and mating pin length of 2.54 mm ensure proper fit.
Unshrouded design allows for flexible wire-to-board connector applications.

Product Description

Molex 22-29-2101 KK 254 Series Straight Through Hole Pin Header features 10 male contacts arranged in a single row with a 2.54 mm pitch. Constructed with a durable nylon housing and gold-plated brass pins, this connector ensures excellent conductivity and corrosion resistance. Rated for 4A current and 250V voltage, the connector supports a broad operating temperature range from -40°C to 105°C.

The straight orientation and through-hole mounting type facilitate easy soldering and provide secure mechanical and electrical connections for your PCB assemblies. Its unshrouded design optimizes space usage on crowded circuit boards while maintaining reliable connectivity.

This pin header is ideal for industrial, medical, domestic appliance, and automotive applications requiring dependable wire-to-board connections. Its standardized pitch makes it compatible with most breadboards, supporting flexible prototyping and production needs.

Additional features include a tail pin length of 3.56 mm and mating pin length of 2.54 mm to ensure proper fitment with mating parts. Manufactured in Ireland, this component adheres to high-quality standards of the KK 254 series.

Features 10 male contacts with gold-plated brass pins for high conductivity. Standard 2.54 mm pitch compatible with common PCB designs. Durable nylon housing provides insulation and physical protection. Supports 4A current and 250V voltage for various power applications.

Straight orientation and through-hole mounting for reliable soldering. Wide operating temperature range from -40°C to 105°C. Unshrouded design saves space on circuit boards. Suitable for medical, automotive, and domestic appliance usage.

Manufactured in Ireland adhering to quality standards. Explore the full range of PCB Headers and connectors at EnvMart for your electronic component needs.
