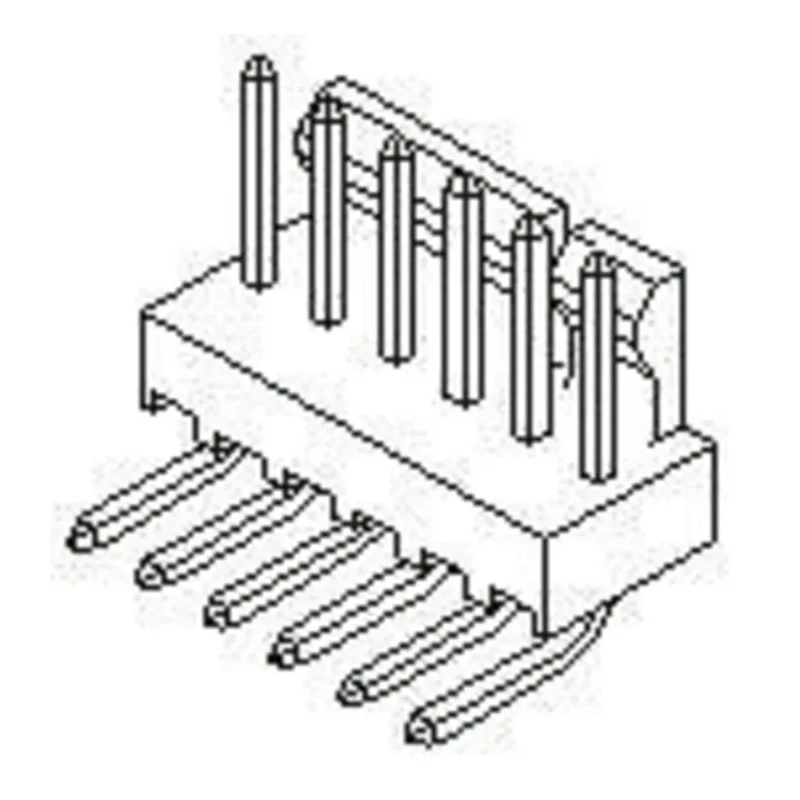

Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-12-4062

Molex 22-12-4062 KK 254 Series Right Angle Through Hole Pin Header, featuring 6 male contacts with 2.54 mm pitch and a single row, provides a dependable wire-to-board joining solution suitable for industrial and commercial electronic assemblies.

The pin header incorporates gold-plated brass contacts and a robust nylon 6/6 UL 94V-0 housing which ensures high electrical conductivity along with heat resistance and mechanical stability.

With a rated current of 4 A and voltage of 250 V, it supports reliable operation in various electronic environments, including industrial automation, communication equipment, and consumer electronics.

The right angle orientation allows flexible PCB layout configurations, and through-hole mounting offers secure and durable soldered connections. Designed without shrouding, it allows easy mating with compatible connectors.

Operating reliably between -40°C and 105°C, this pin header is suitable for demanding temperature ranges. Tail and mating pin lengths of 3.8 mm and 2.54 mm respectively ensure secure mechanical and electrical connections.

Manufactured in Mexico under stringent quality controls ensures consistent performance in demanding applications. This component mates with Molex KK 254 Series housings and is ideal for building reliable electronic interconnections.

This pin header features a right angle orientation for versatile PCB mounting options. It has one row of six male contacts with gold-plated brass contacts for enhanced conductivity. The housing is made of nylon 6/6 UL 94V-0 natural, providing durability and heat resistance.

The connector supports a maximum operating voltage of 250 V and current of 4 A. Tail pin length is 3.8 mm and mating pin length is 2.54 mm to ensure secure solder termination. The header is unshrouded and designed for through hole mounting for sturdy PCB attachment.

Operating temperature ranges from -40°C to 105°C for use in diverse environments. Manufactured in Mexico with high standards for electronic component reliability. Explore the comprehensive range of Molex PCB Headers and connectors at EnvMart, designed to support advanced electronics manufacturing and development needs.
