Molex Milli-Grid Series Straight Surface PCB Header, 26 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-2620

Free Delivery in India | Lowest Global Shipping Charges

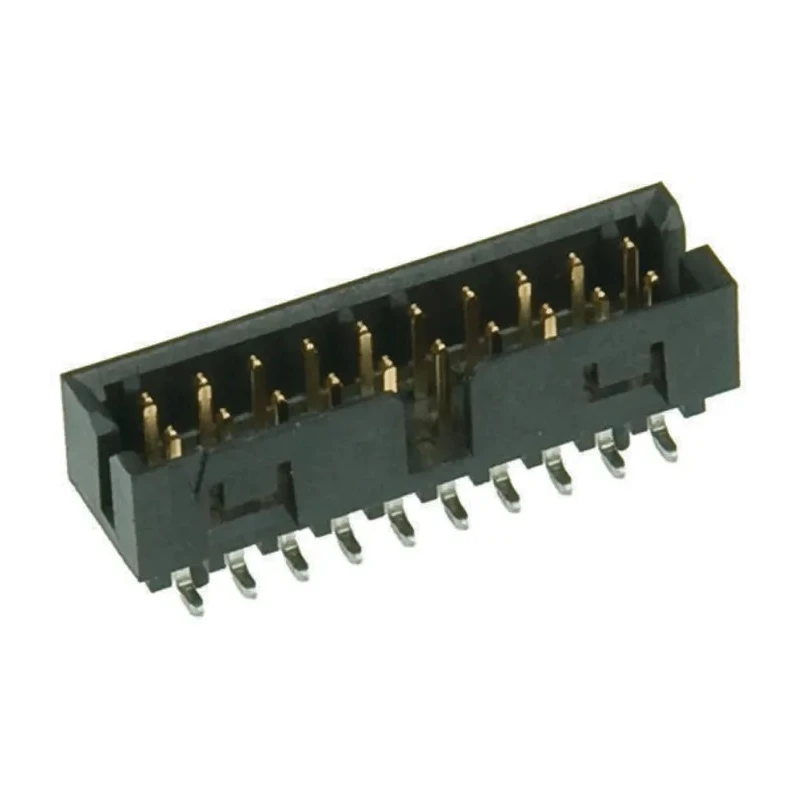

Molex Milli-Grid Series Straight Surface PCB Header, 26 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-2620

Name: Molex Milli-Grid Series Straight Surface PCB Header, 26 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-2620
Brand: Molex
SKU: 206306
Price: 3.49 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Molex
Orientation	Straight
Current	2A
Mount Type	Surface
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2mm

Key Features

High-density Milli-Grid connector system offering design flexibility.
Constructed with nylon housing material for durability.
Phosphor bronze contacts with 0.38μm gold plating ensure reliable conductivity.
Suitable for surface mount technology with solder termination type.
Supports a maximum current of 2 amperes and voltage rating of 125 volts.
Operates reliably from -55°C to 105°C extremes.
Male contact gender with 2 mm mating pin length for precise interfacing.
Shrouded dual row connector for enhanced mechanical protection.

Product Description

Molex 87832-2620 Milli-Grid Series Straight Surface PCB Header is a high-quality electronic connector designed for secure board-to-board and cable-to-board applications. Featuring 26 male contacts arranged in 2 rows with a 2 mm pitch, this shrouded PCB header ensures reliable connections in compact, high-density layouts.

The connector housing is made from robust nylon, providing excellent durability and insulation performance. Phosphor bronze contacts plated with 0.38μm gold deliver superior conductivity and corrosion resistance. Its solder termination type facilitates surface mount technology (SMT) assembly, enhancing production efficiency.

Specifications include a 2 amp current rating and 125 volts operating voltage, supporting demanding electronic environments. The device operates reliably from -55°C to 105°C, making it suitable for a range of industrial and commercial applications including automation, manufacturing, instrumentation, and electronic assembly.

The design features a shrouded 2-row configuration with a 2 mm mating pin length, enabling compatibility with Molex 51110 series receptacles (typical stock number 670-3588), facilitating integration in complex systems.

This PCB header connector system adheres to the Molex Milli-Grid 2.0 mm grid pattern standard, known for its flexibility and compact footprint in electronic component design. High-density, shrouded 2-row PCB header provides reliable surface mount connections.

Nylon housing ensures electrical insulation and mechanical strength. Gold-plated phosphor bronze contacts offer excellent conductivity and corrosion resistance. Designed for 2 A current and 125 V voltage, suitable for a wide range of electronics.

Wide operating temperature range from -55°C to 105°C. Compatible with Molex 51110 series receptacles for versatile applications. Surface mount termination enables automated PCB assembly. Male contact gender with a 2 mm pitch supports high-density configurations.

Ideal for electronic industries including manufacturing, automation, and instrumentation. A trusted solution for secure and efficient electronic connections across multiple sectors. Explore additional Molex connectors and PCB Headers for industrial and electronic uses on EnvMart.
