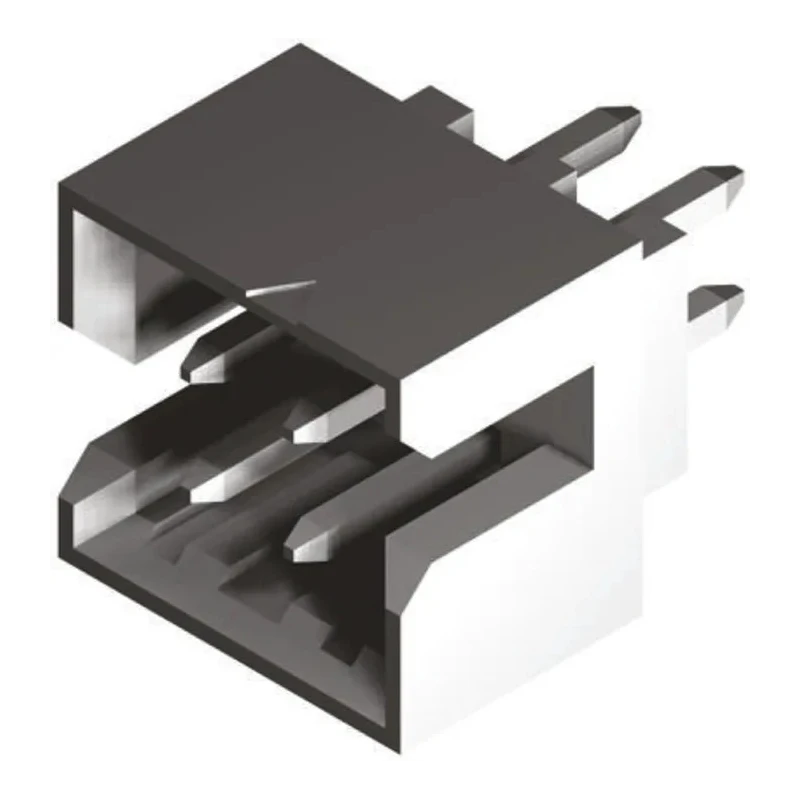

Molex Milli-Grid Series Straight Through Hole PCB Header, 4 Contact, 2 mm Pitch, 2 Row, Shrouded 87831-0420

Free Delivery in India | Lowest Global Shipping Charges

Molex Milli-Grid Series Straight Through Hole PCB Header, 4 Contact, 2 mm Pitch, 2 Row, Shrouded 87831-0420

Name: Molex Milli-Grid Series Straight Through Hole PCB Header, 4 Contact, 2 mm Pitch, 2 Row, Shrouded 87831-0420
Brand: Molex
SKU: 206280
Price: 1.94 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Singapore
Voltage	125V
Brand	Molex
Orientation	Straight
Current	2A
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.5mm
Mating Pin Length	2mm

Key Features

The connector features a high density 2.00 x 2.00 mm grid pattern offering design flexibility.
Shrouded design protects contacts from damage and prevents mismating using a centre polarization slot.
Includes centre or side locking windows for secure mating connections.
Kinked solder tails ensure secure retention to PCB with locating pegs for automated insertion.
Suitable for wire-to-board applications in printers, servers, automotive audio, security systems, and other electronics.

Product Description

Molex 87831-0420 PCB Header, part of the Milli-Grid Series, is designed with a 2 mm pitch and 2 rows with 4 contacts. This shrouded through hole connector utilizes a phosphor bronze contact material plated with gold, ensuring durability and excellent conductivity. Operating voltage is rated at 125V with a current capacity of 2A, capable of functioning reliably between -55°C and 105°C.

The Milli-Grid design features a high density 2.00 x 2.00 mm grid pattern providing flexibility for wire-to-board connection applications. The shrouded design offers superior protection by preventing damage to contacts and avoiding mismating through a centre polarization slot that mates with a corresponding key on the receptacle. Locking windows on the centre or sides secure the connection firmly.

Additional design elements include kinked solder tails ensuring strong solder joints and locating pegs that enable automatic insertion, improving manufacturing efficiency. This connector is designed for through hole mounting with a solder termination type, male contact gender, and tail pin length of 2.5 mm.

This PCB header series is widely applied in industrial, commercial, and consumer electronics such as printers, fax machines, servers, routers, automotive audio, GPS systems, security alarms, set-top boxes, and digital media players. Its robust performance under wide temperature variations makes it suitable for demanding environments.

The connector’s compact and high-density grid design maximizes PCB space. Gold plating enhances corrosion resistance and conductivity. Shrouded design protects contacts from mechanical damage. Centre polarization and locking features ensure reliable mating.

Kinked solder tails and locating pegs optimize installation and retention.

Explore more Molex Milli-Grid series connectors and PCB Headers in the EnvMart Electronics & Electricals categories for your board-to-board and wire-to-board interconnection needs.
