Molex Pico-SPOX Series Right Angle Surface PCB Header, 3 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 87438-0342

Free Delivery in India | Lowest Global Shipping Charges

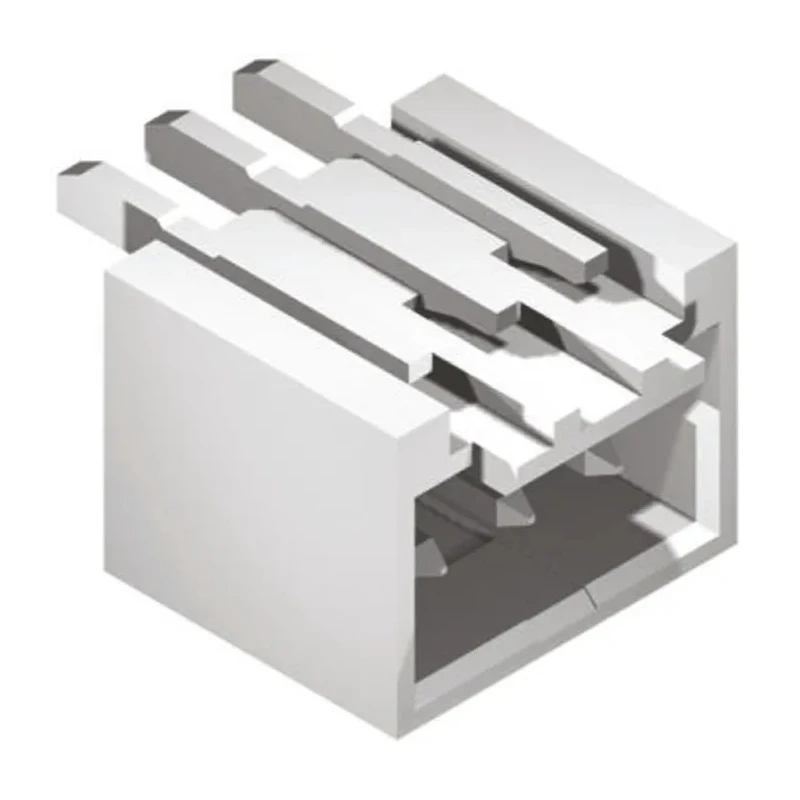

Molex Pico-SPOX Series Right Angle Surface PCB Header, 3 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 87438-0342

Name: Molex Pico-SPOX Series Right Angle Surface PCB Header, 3 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 87438-0342
Brand: Molex
SKU: 206278
Price: 0.45 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	Pico-SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features right angle orientation and shrouded housing for protection.
Constructed with thermoplastic housing and brass contacts plated with tin.
Rated for maximum current of 3A and voltage of 350V.
Designed for surface mount applications with solder termination.
Operates reliably over a temperature range of -55°C to 105°C.
Compatible with Molex 87439 Series housings for easy integration.
Compact 1.5 mm pitch supports tight packaging configurations.
Ideal for electronic components and power connector assemblies.

Product Description

Molex 87438-0342 Pico-SPOX Series Right Angle Surface PCB Header is a high-quality electronic component designed for efficient wire-to-board connection systems with a 1.5 mm pitch and 3 contacts in a single row. The connector features a shrouded design with right angle orientation, enhancing durability and reliable mating with the corresponding Molex 87439 Series housings.

The header's housing is made of robust thermoplastic material, ensuring insulation and mechanical strength. Brass contacts plated with tin provide excellent electrical conductivity and corrosion resistance. Rated for a maximum current of 3A and voltage of 350V, this PCB header supports demanding power applications within electronic assemblies.

With solder termination and surface mount type, this connector is optimized for automated PCB assembly processes and offers reliable performance over a wide temperature range from -55°C up to 105°C. The compact 1.5 mm pitch allows for space-saving routing in dense circuit board layouts.

Right angle surface mount for efficient PCB connection. Shrouded connector system with wire-to-board interface. Thermoplastic housing and tin-plated brass contacts provide durability. Supports 3A current and 350V voltage rating.

Wide operating temperature range from -55°C to 105°C. Mates with Molex 87439 Series housings for versatile applications. Ideal for electronics, power connectors, and PCB assembly projects.

This Molex PCB header is suitable for diverse industrial and commercial electronics applications where reliable, compact, and efficient PCB connections are required. Its robust construction and precise design make it a preferred choice for manufacturers, designers, and engineers working on circuit boards and power distribution modules.

Explore the range of Molex connectors and PCB components at EnvMart to enhance your electronic assembly and prototyping projects with trusted quality and performance.
