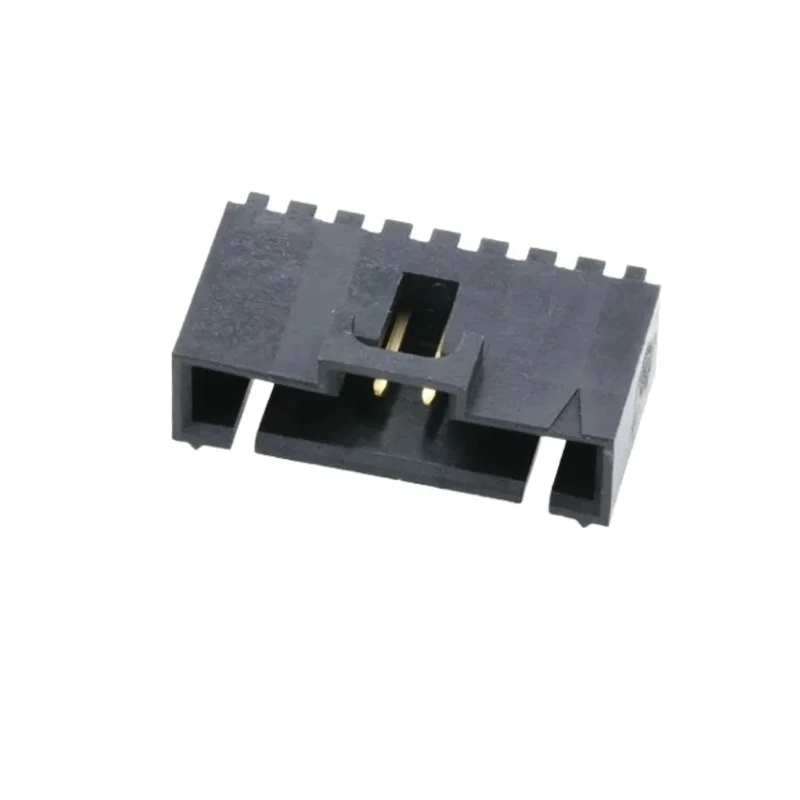

Molex SL Series Right Angle Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, Shrouded, 3A Current, 250V Voltage 70553-0007

Molex 70553-0007 SL Series Right Angle Through Hole PCB Header is engineered for reliable wire-to-board modular connectivity in electronic systems. Featuring a pitch of 2.54 mm and 8 contacts arranged in a single row, this shrouded header delivers secure and robust electrical connections suited for diverse industrial applications.

The right angle orientation aids space-saving PCB layouts, making it ideal for compact designs and high-density assemblies. Contacts are made of phosphor bronze, offering excellent mechanical strength, and enhanced by gold plating that ensures superior conductivity, resistance to corrosion, and long-term reliability. The header is rated for a continuous current of 3A and supports voltages up to 250V, suitable for signal and power connections within various electronic devices.

Operating efficiently within a temperature range of -40°C to 105°C, it supports applications in industrial, automation, electrical, and consumer electronic contexts. The product is optimized for through-hole mounting with a tail pin length of 3.3 mm, enabling easy soldering and mechanical stability.

This PCB header supports up to 50 mating cycles, maintaining consistent connection integrity over multiple assembly and disassembly operations. The recommended PCB thickness for optimal fitting is 1.60 mm. Its shrouded design improves contact security and alignment, reducing the risk of misconnection.

Shrouded connector enhances reliability and prevents accidental disconnections. Right angle orientation facilitates compact and efficient PCB layouts. Phosphor bronze contacts provide strong, durable electrical connections.

Gold plating ensures excellent conductivity and corrosion resistance. Supports 3A current and 250V voltage for diverse applications. Through-hole mount type suitable for durable soldering to PCBs. Operating temperature range from -40°C to 105°C suits industrial environments.

Up to 50 mating cycles support frequent connector use. Tail pin length of 3.3 mm ensures firm solder connection. Recommended PCB thickness is 1.60 mm for secure installation.

This Molex SL Series PCB Header is essential for industrial, automation, commercial electronics, and manufacturing assembly projects requiring high reliability and space efficiency. Explore more components in the PCB Headers category on EnvMart for comprehensive connectivity solutions.
