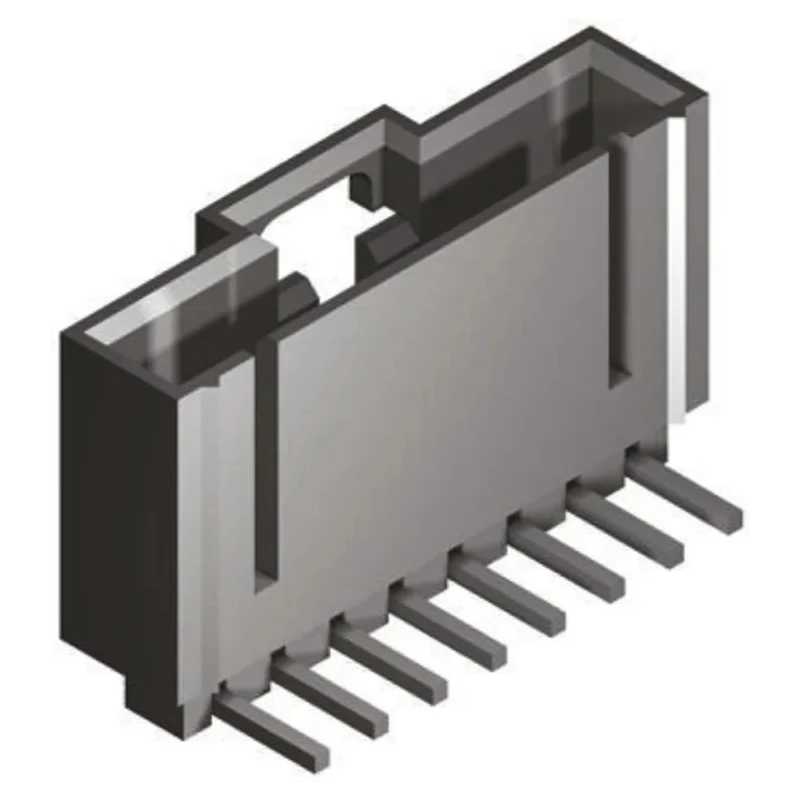

Molex SL Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0009

Molex 70553-0009 SL Series right angle through hole PCB header is a high-quality electronic connector designed for reliable wire-to-board connections. It features 10 gold-plated phosphor bronze contacts arranged in a single row with a 2.54 mm pitch spacing. The connector housing is made of high temperature thermoplastic to withstand industrial and commercial thermal demands.

This 1-row connector supports a current rating of 3 Amps and a voltage rating of 250 Volts, making it suitable for a wide range of electronic applications including industrial controls, consumer electronics, and telecommunications equipment. Its right angle orientation facilitates compact PCB layouts and secure solder terminations with 3.3 mm tail pin length.

The shrouded design of the header helps to protect contacts from accidental damage and ensures proper alignment during mating with compatible Molex housings such as the 70066G and 70066N series. The connector is rated for operation within a temperature range from -40°C to 105°C, suitable for harsh environments.

Manufactured in the United States, this PCB header upholds strict quality and reliability standards expected in industrial, laboratory, and commercial electronic assemblies. Its robust contact plating and housing materials help maintain signal integrity and mechanical durability over extended use.

Rated current: 3 Amps. Operating voltage: 250 Volts. Housing: High temperature thermoplastic. Contact material: Phosphor bronze with gold plating. Orientation: Right angle for wire-to-board connections. Termination: Through hole solder type.

Pitch: 2.54 mm, 1 row, 10 contacts. Operating temperature range: -40°C to 105°C.

This Molex PCB header series is ideal for applications requiring a reliable and durable connection system in electronics manufacturing. Browse more Molex connectors and PCB Headers in the EnvMart electronics category for compatible parts and accessories.
