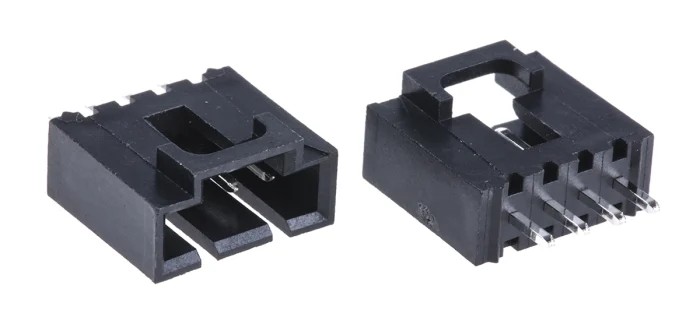

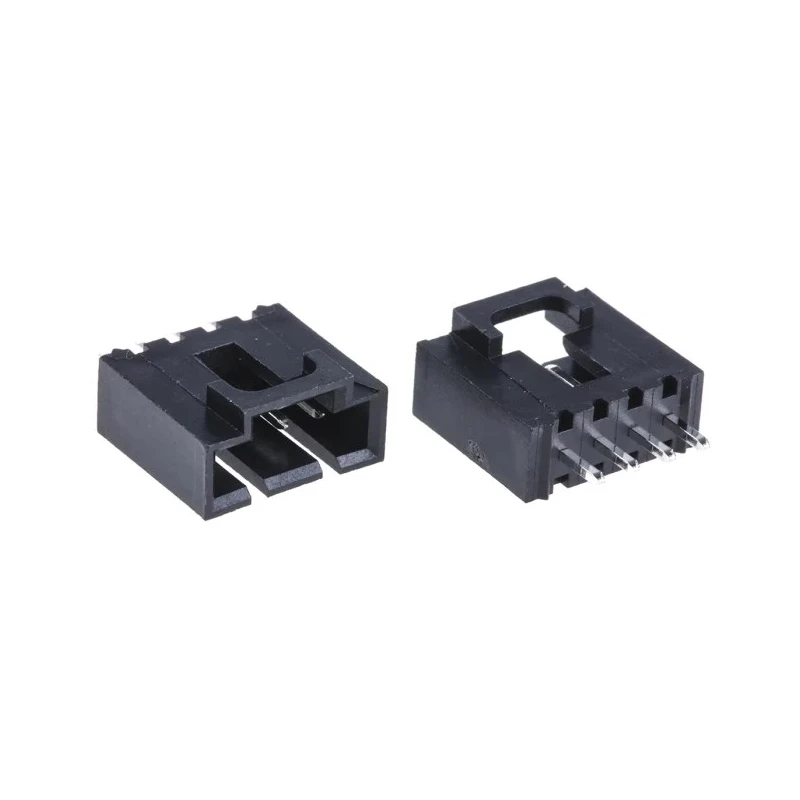

Molex SL Series Straight Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0038

Free Delivery in India | Lowest Global Shipping Charges

Molex SL Series Straight Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0038

Name: Molex SL Series Straight Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0038
Brand: Molex
SKU: 206266
Price: 1.12 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Phosphor Bronze
Series	SL
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.3mm

Key Features

Features high temperature thermoplastic housing for durability.
Supports current rating of 3A for efficient power handling.
Includes phosphor bronze male contacts with tin plating for reliable connectivity.
Designed for through hole mounting with straight orientation and shrouded design.
Operates within temperature range of -40°C to 105°C.
Offers tail pin length of 3.3mm for secure soldering.
Rated for voltage up to 250V ensuring safe PCB applications.
Meets no specific standards or certifications.

Product Description

Molex 70543-0038 SL Series straight through hole PCB header is a high quality connector featuring 4 male contacts spaced at 2.54 mm pitch in a single row. It is designed for wire-to-board connection utilizing through hole mounting method with a shrouded housing made from high temperature thermoplastic for enhanced mechanical and thermal performance.

This PCB header supports a current rating of 3A and voltage rating up to 250V, suitable for various electronic applications including industrial equipment, laboratory devices, and HVAC controls. The contacts are made from phosphor bronze and plated with tin to provide reliable electrical connectivity and resistance to corrosion. Its operating temperature ranges from -40°C to 105°C, allowing usage in demanding environments.

The tail pins are 3.3 mm in length to facilitate secure soldering on the PCB. This unit is compatible with Molex 70600G and 70600N series connectors, enhancing design flexibility in systems integration. Though it does not hold specific certifications, the product conforms to industry standards of quality and durability.

Widely applicable in electronics manufacturing, automation systems, and power distribution modules, this PCB header is ideal for efficient and durable board connections. Set includes one piece of the shrouded PCB header from the Molex SL series.

High temperature thermoplastic housing for durability in harsh conditions. Four male contacts with phosphor bronze and tin plating for electrical reliability. 2.54 mm pitch and single row design for standard PCB layouts.

Shrouded connector system providing protection and alignment. Through hole mounting with straight orientation for secure installation. Rated current 3A and voltage 250V suitable for various applications. Operating temperature range from -40°C to 105°C.

Tail pin length of 3.3 mm for reliable solder joints. Manufactured in the United States assuring product quality. Compatible with Molex mating connectors 70600G and 70600N series. Explore more PCB connector options within EnvMart for comprehensive electronics component sourcing.
