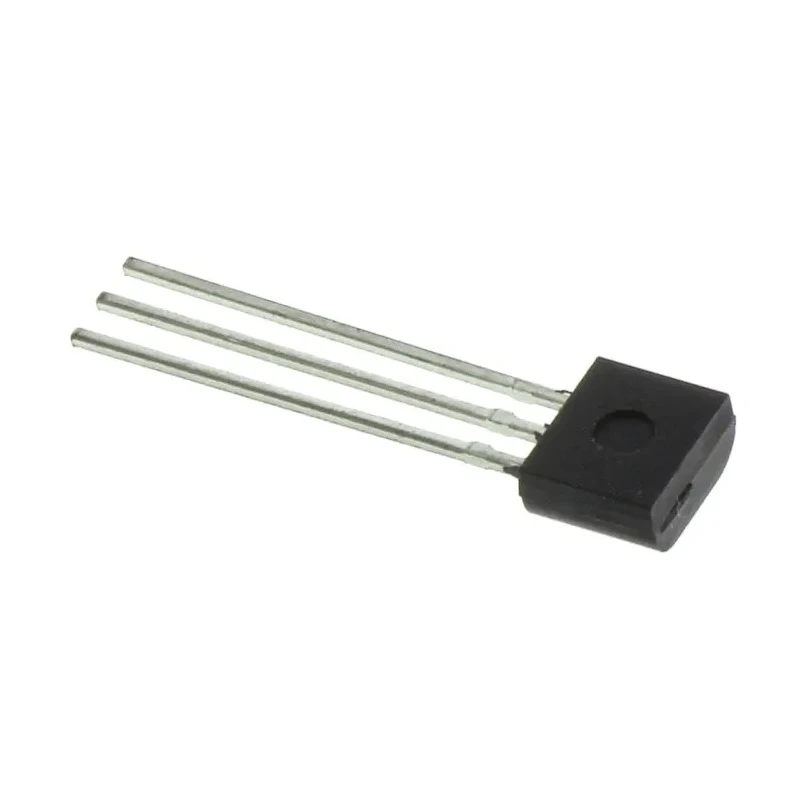

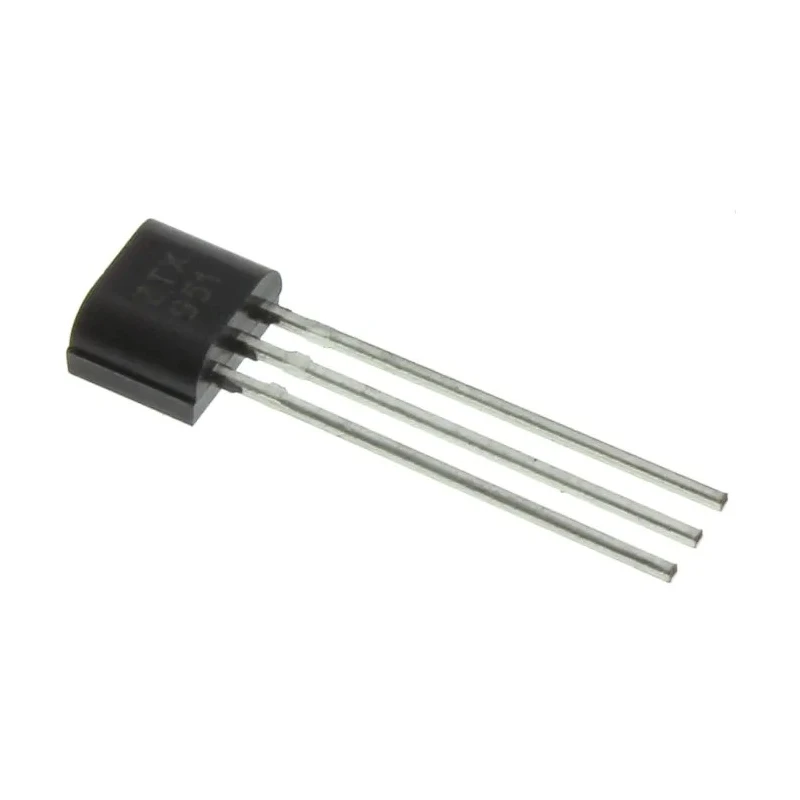

DiodesZetex General Purpose PNP Bipolar Transistor, Maximum DC Collector Current -4A, Voltage 60V, 3-Pin E-Line ZTX951

DiodesZetex ZTX951 is a general purpose PNP bipolar transistor built for robust semiconductor applications. It supports a maximum DC collector current of -4 amps and a collector emitter voltage up to -60 volts, making it suitable for a variety of electronic designs including amplification and switching tasks.

The transistor employs a 3-pin E-Line through-hole package which facilitates straightforward PCB mounting and soldering for industrial and commercial electronic manufacturing processes. Its maximum power dissipation capability of 1.2 watts ensures stable performance without excessive heat generation in medium power applications.

The device offers a high maximum collector base voltage rating of 100 volts and a maximum emitter base voltage of 6 volts, protecting against voltage spikes and providing reliability in demanding circuit conditions.

Designed to operate across a wide temperature range from -55°C to 150°C, the ZTX951 is suitable for use in harsh environments including industrial and laboratory conditions. With a minimum DC current gain of 10 and a maximum transition frequency of 120 MHz, it supports high-frequency operation for efficient switching and amplification.

While it is a single transistor configuration with PNP polarity, this component does not conform to automotive-specific standards, targeting more general electronic applications. The series ZTX9X transistor family is well-regarded for versatility in electronic component design and prototyping.

This transistor has a 3-pin E-Line package suitable for through-hole mounting. Maximum power dissipation is rated at 1.2W ensuring reliable operation under load. Supports a maximum collector base voltage of 100V and a maximum emitter base voltage of 6V.

Operates efficiently across a temperature range of -55°C to 150°C. Minimum DC current gain (hFE) of 10 and maximum transition frequency of 120MHz.

These features make the ZTX951 an excellent choice for electronics manufacturing, prototyping, and industrial circuit design where general purpose PNP transistors are required. Explore our extensive range for more semiconductor components at EnvMart.
