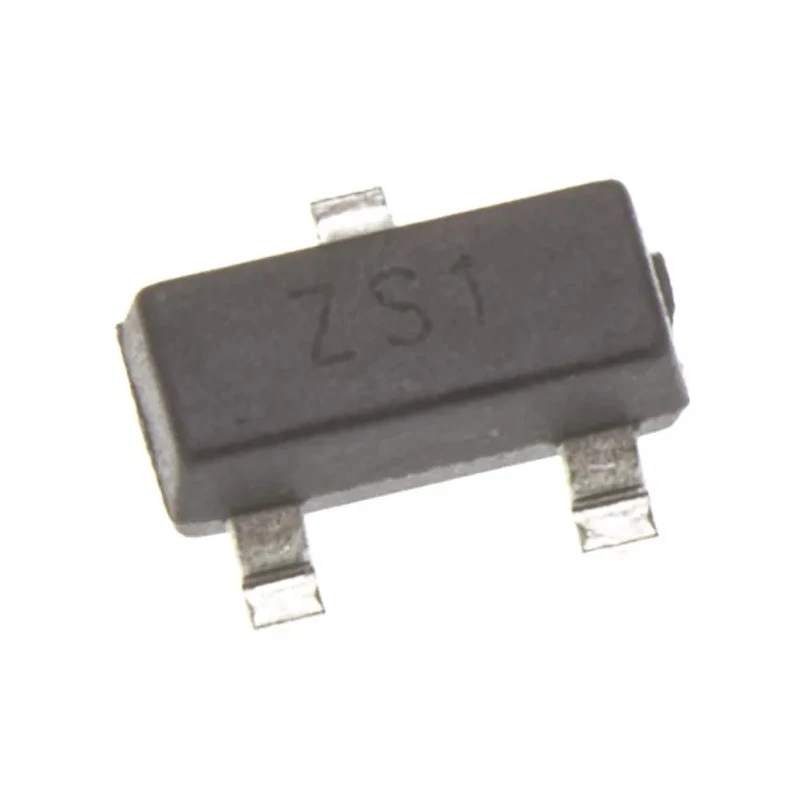

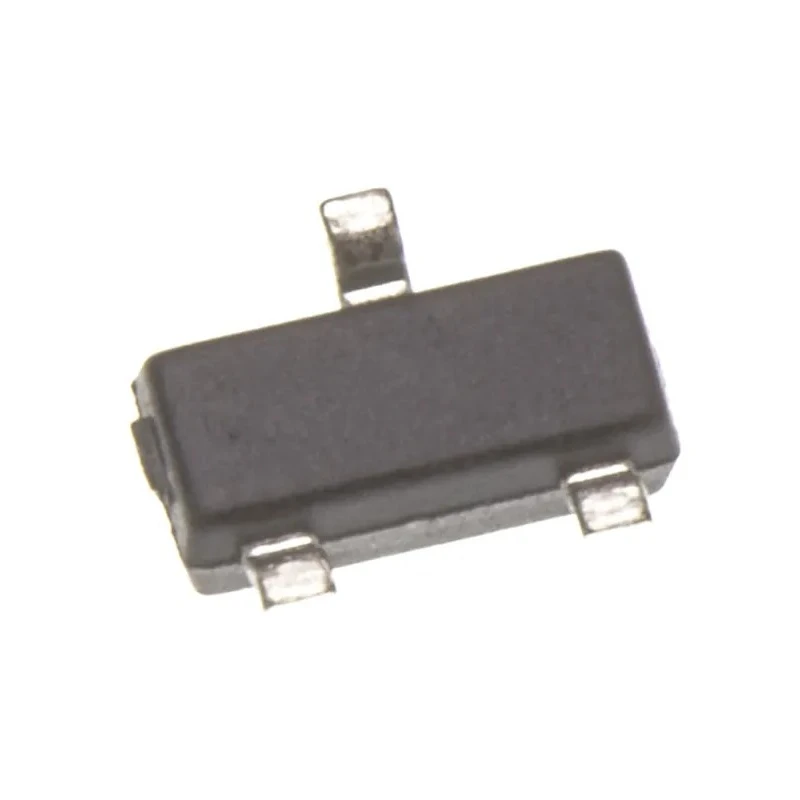

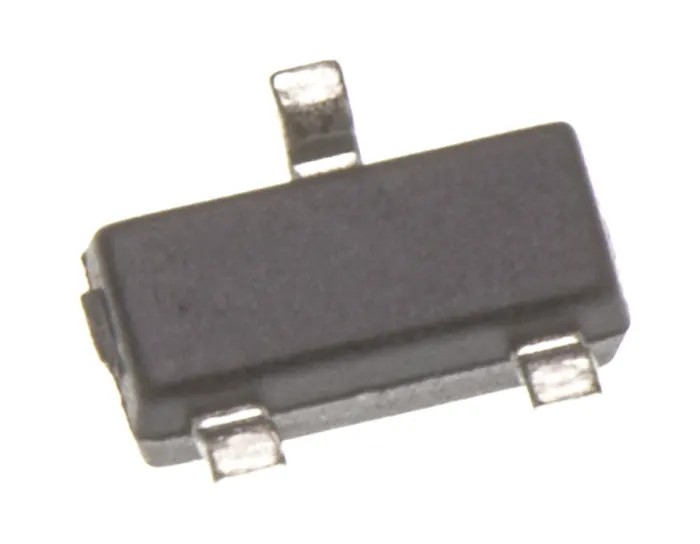

DiodesZetex 40 V 1.75 A Schottky Diode Single Configuration 3-Pin SOT-23 Package ZHCS1000TA

DiodesZetex ZHCS1000TA is a high-performance Schottky diode specifically designed for surface mount technology applications. Featuring a single diode configuration in a compact 3-pin SOT-23 package, this semiconductor device offers superior electrical characteristics for power rectification and switching in electronics.

With a maximum continuous forward current of 1.75 A and a peak reverse repetitive voltage of 40 V, the ZHCS1000TA diode suits a variety of power management and protection circuits. The device's low forward voltage drop of 600 mV reduces conduction losses and enhances efficiency in power conversion applications.

Its fast peak reverse recovery time of 12 ns is advantageous for high-speed switching environments, contributing to reduced switching losses and improved circuit responsiveness. The diode supports a peak non-repetitive forward surge current of 12 A, making it resilient to transient current spikes.

The physical dimensions (length 3.05 mm, width 1.4 mm, height 1 mm) enable high-density PCB designs while supporting automated surface mount assembly processes. The diode operates reliably within a wide temperature range of -55°C to 125°C, making it suitable for demanding industrial and automotive environments.

Additionally, this diode complies with the automotive standard AEC-Q101, ensuring robust performance and quality control required for automotive electronics. Maximum continuous forward current of 1.75 A ensures reliable power handling.

Peak reverse repetitive voltage rating is 40 V suitable for various electronic circuits. Low forward voltage of 600 mV reduces power loss and heat generation. Compact dimensions with length 3.05 mm, width 1.4 mm and height 1 mm enable high-density PCB layouts.

Fast peak reverse recovery time of 12 ns enhances switching efficiency. Peak non-repetitive forward surge current is 12 A for transient conditions. Wide operating temperature range from -55°C to 125°C for robust performance in harsh environments.

Compliance with automotive AEC-Q101 standard guarantees quality and reliability for automotive applications. Package type SOT-23 supports surface mount technology for automated assembly. Peak reverse current is low at 100 μA minimizing leakage currents.

This Schottky diode is ideal for applications in industrial power supplies, automotive electronic systems, consumer electronics, and other sectors requiring efficient high-speed rectification and low forward voltage characteristics. Its surface mount SOT-23 package suits automated manufacturing and compact circuit designs.
