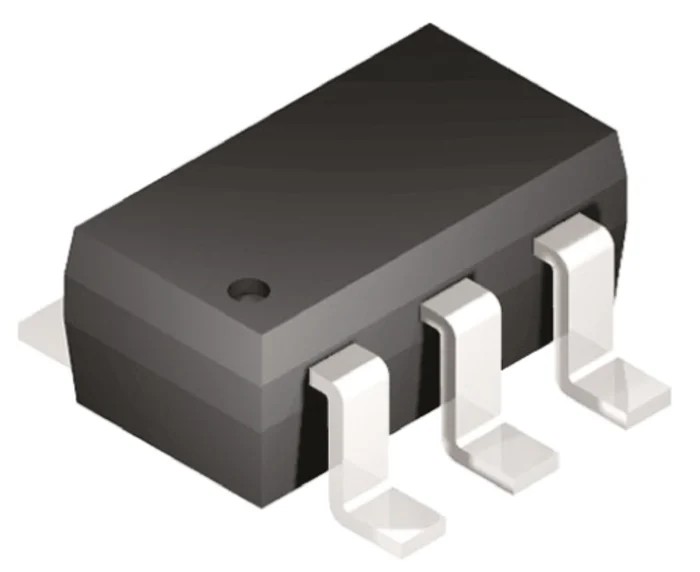

DiodesZetex 40 V 2.2 A Low Leakage Diode Single Diode Configuration 6-Pin SOT-23 ZLLS2000TA

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 40 V 2.2 A Low Leakage Diode Single Diode Configuration 6-Pin SOT-23 ZLLS2000TA

Name: DiodesZetex 40 V 2.2 A Low Leakage Diode Single Diode Configuration 6-Pin SOT-23 ZLLS2000TA
Brand: DiodesZetex
SKU: 205932
Price: 0.58 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.3mm
Length	3.1mm
Model	ZLLS2000TA
Width	1.8mm
Mount Type	Surface
Series	ZLLS2000X
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	6
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2.2A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Low Leakage
Peak Reverse Current Ir	40μA
Peak Non-Repetitive Forward Surge Current Ifsm	36A
Maximum Forward Voltage Vf	600mV
Peak Reverse Recovery Time trr	6ns

Key Features

This diode features low leakage current suitable for sensitive electronic applications.
The package type is compact SOT-23 with a 6-pin configuration.
It supports a maximum continuous forward current of 2.2 A.
Peak reverse repetitive voltage rating is 40 V for reliable blocking capability.
Maximum forward voltage drop is 600 mV to ensure efficient conduction.
It has fast recovery with a peak reverse recovery time of 6 ns.
Operational temperature ranges from -55°C to 150°C for diverse environments.
The diode complies with the automotive AEC-Q101 standard for quality and reliability.

Product Description

DiodesZetex ZLLS2000TA is a low leakage Schottky diode designed for surface mount applications in electronic circuits requiring efficient rectification and protection. It is a single diode configuration device packaged in a 6-pin SOT-23 form factor, enabling compact PCB design with reliable performance.

This diode supports a maximum continuous forward current of 2.2 A and a peak reverse repetitive voltage rating of 40 V. It delivers low forward voltage drop, typically 600 mV, reducing power loss and heating during operation. Its low leakage current and fast 6 ns reverse recovery time ensure high efficiency and switching speed suitable for sensitive and high-frequency electronics.

The diode operates reliably across a wide temperature range from -55°C to 150°C, accommodating industrial, automotive, and other demanding environments. It meets the automotive-grade AEC-Q101 standard, guaranteeing performance consistency and reliability in critical applications.

Compact physical dimensions (3.1 mm length, 1.8 mm width, 1.3 mm height) make it suitable for high-density electronic assemblies. This diode is well-suited for power rectification, voltage clamping, and circuit protection roles in a variety of semiconductor-based devices.

This diode features low leakage current suitable for sensitive electronic applications. The package type is compact SOT-23 with a 6-pin configuration. It supports a maximum continuous forward current of 2.2 A. Peak reverse repetitive voltage rating is 40 V for reliable blocking capability.

Maximum forward voltage drop is 600 mV to ensure efficient conduction. It has fast recovery with a peak reverse recovery time of 6 ns. Operational temperature ranges from -55°C to 150°C for diverse environments. The diode complies with the automotive AEC-Q101 standard for quality and reliability.

Physical dimensions include length 3.1 mm, width 1.8 mm, and height 1.3 mm. Ideal for industrial, automotive, and electronic circuit protection and rectification applications. Explore the extensive range of Schottky Diodes & Rectifiers at EnvMart for your electronic component needs, ensuring high quality and performance.
