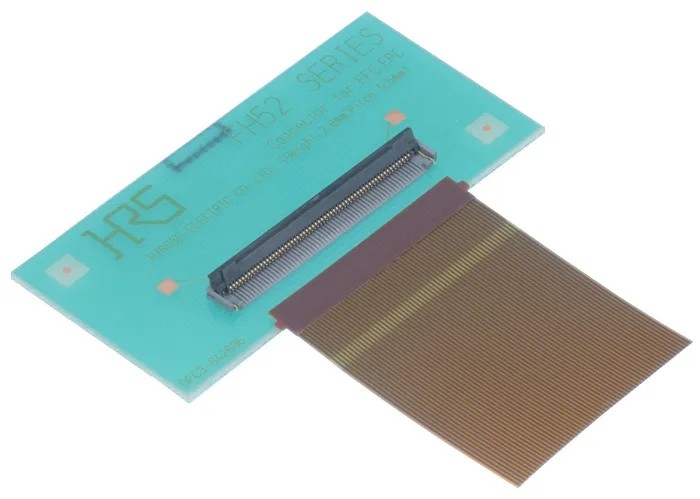

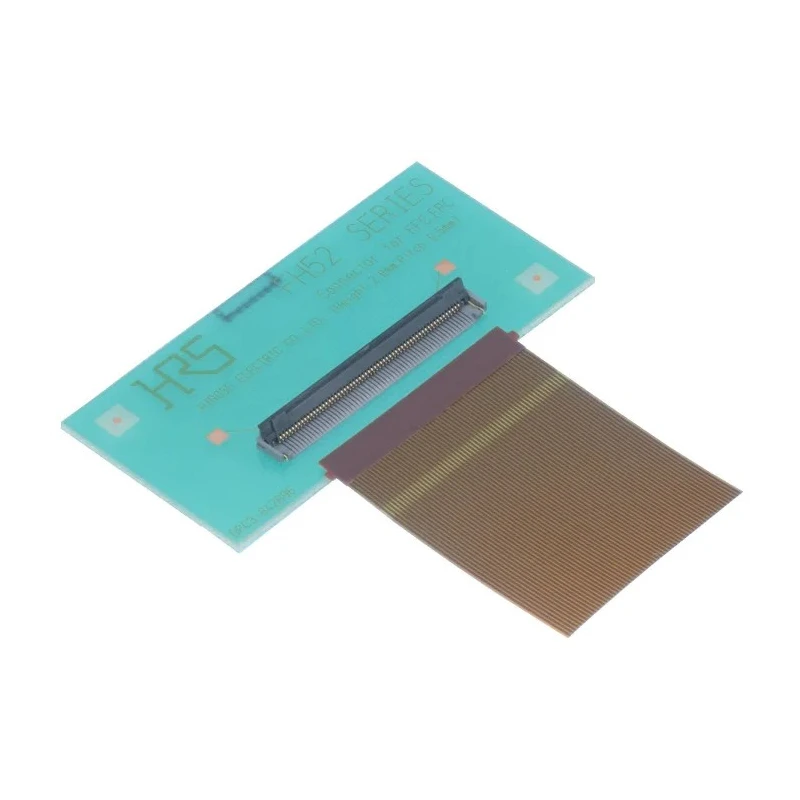

Hirose FH52 0.5 mm Pitch 50 Way Straight Female FPC Connector, Solder FH52
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | FH52 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | FH52 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- The connector features a low profile mated height of 2 mm for compact designs.
- It includes a rotating flip lock actuator enabling easy insertion and secure locking of FPC cables.
- Metal fittings inside the housing increase actuator retention and stability.
- Two-point contact design ensures increased electrical reliability and durability.
- Side catches guide and hold tabbed FPC in place for consistent connections.
- The connector’s bottom is fully moulded without exposed contacts, allowing PCB patterning underneath.
- It supports automatic pick-and-place mounting for streamlined assembly.
- The connector accepts standard 0.3 mm FPC cables.
Product Description
Hirose FH52 series 0.5 mm pitch 50 way straight female FPC connector FH52 is a surface mount solder termination FPC/FFC ZIF connector with a low profile mated height of 2 mm. It is engineered for robust and reliable FPC connections in compact electronic assemblies.
This connector features an easy-to-use rotating flip lock actuator which provides tactile click confirmation once fully locked, securing the cable firmly in place. Metal fittings within the housing enhance actuator retention and overall mechanical stability.
The copper alloy contacts are gold plated and arranged in a two-point contact structure, offering heightened electrical reliability and long-term durability. The bottom of the connector is fully moulded without exposed contacts, enabling mounting over PCB conductive traces and supporting PCB patterning design freedom.
Side catches inside the housing guide and temporarily hold the tabbed FPC for accurate insertion until the actuator locks it securely. The connector's design supports automatic pick-and-place mounting processes, improving manufacturing efficiency.
Ideal applications include audio and video recording devices, automotive navigation and audio systems, notebook PCs, portable medical instruments, optical drives, industrial control units, satellite receivers, LCD and digital TVs, and printers.
Operating range spans from -40°C to 105°C with a maximum voltage rating of 50V AC. The housing is made from liquid crystal polymer, which is halogen free per IEC 61249-2-21 standards.
The low profile and compact size suit demanding space-constrained electronics. Flip lock actuator design ensures secure, consistent cable connections. Robust metal fittings improve latch retention and connector stability.
Gold plated contacts provide excellent corrosion resistance and conductivity. Compliance with halogen free standards aligns with environmental requirements. Supports standard 0.3 mm pitch flexible printed circuits.
This product is a reliable choice for various industrial, commercial, and consumer electronic applications requiring dependable FPC connectivity and durable mechanical design. Browse more FPC Connectors and electronics components on EnvMart for comprehensive connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a two-point contact design, which enhances electrical reliability and durability.
It has a maximum voltage rating of 50V AC.
The operating temperature range spans from -40°C to 105°C.
This connector is designed for surface mounting.
The housing is made from liquid crystal polymer, and the contacts are made of copper alloy with gold plating.
This connector has 50 contacts.
The pitch size is 0.5 mm.
It has a current rating of 500 mA.
Yes, it supports automatic pick-and-place mounting for streamlined assembly.
It includes a rotating flip lock actuator that provides tactile confirmation once locked, ensuring secure cable connections.
Yes, the housing material is halogen free per IEC 61249-2-21 standards.
It is suitable for various applications including audio and video devices, automotive systems, notebook PCs, and more.
