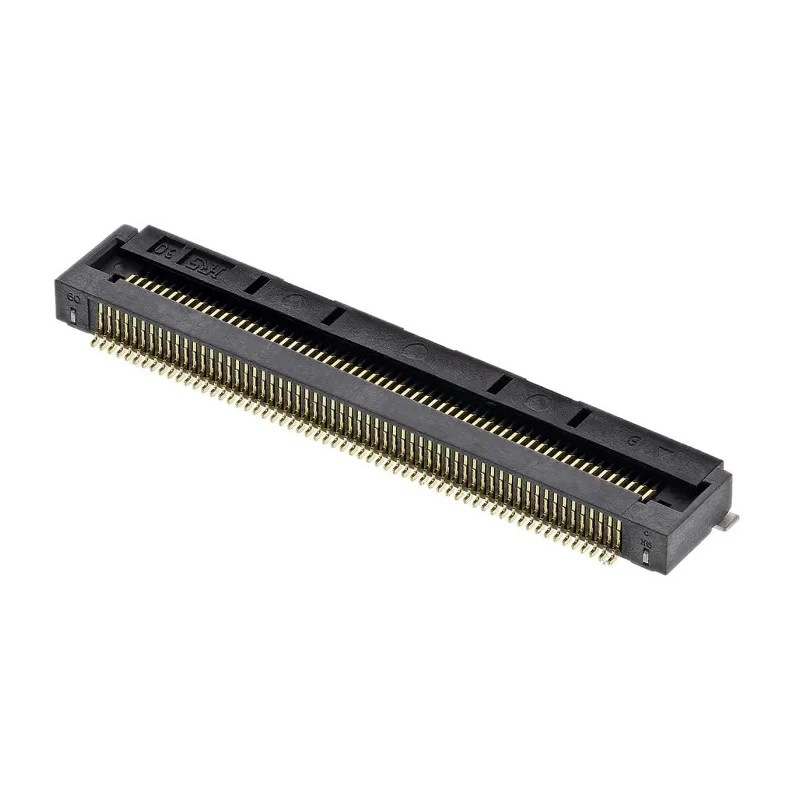

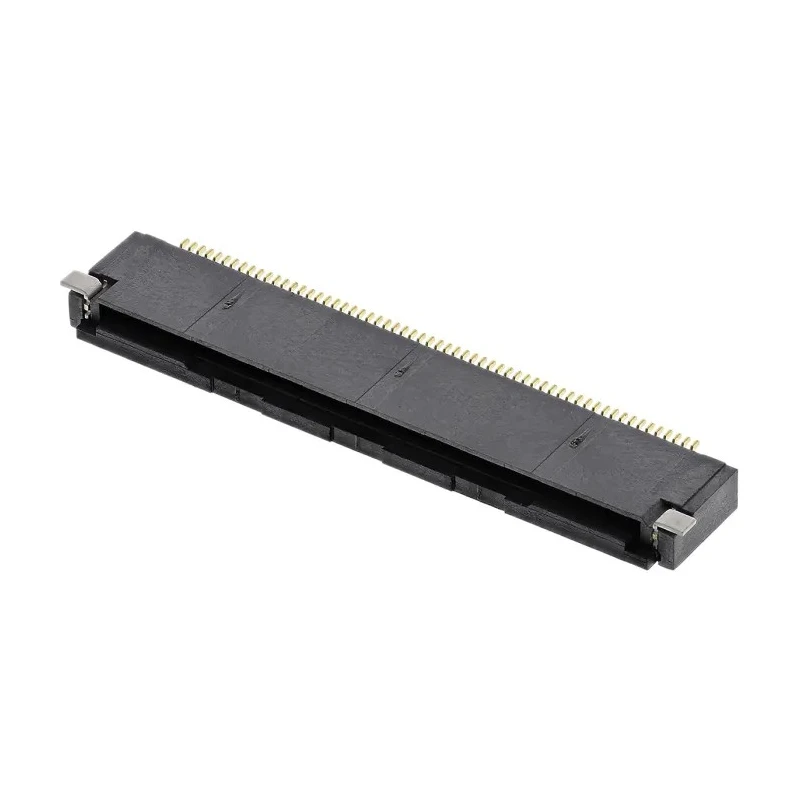

Hirose FH28 0.5 mm Pitch 60 Way Right Angle Female FPC Connector Solder
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH28 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FH28 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
| Hirose, FH28 0.5 mm Pitch 60 Way Right Angle Female FPC Connector, SolderBrand | Hirose |
Key Features
- The connector features a robust flip-lock actuator for easy insertion and secure retention of FPC/FFC cables.
- It supports zero insertion force (ZIF) locking mechanism to minimize damage during cable insertion.
- Gold plated phosphor bronze contacts ensure excellent conductivity and resistance to corrosion.
- The housing is made from liquid crystal polymer, providing durability and electrical insulation.
- Operating voltage rating is 50V AC with a maximum current of 500mA.
- Designed for industrial and consumer electronics including GPS navigation, test and measurement equipment, and medical devices.
- Operates reliably within a temperature range of -40°C to 105°C.
- Side catches improve retention for tabbed FPC cables, providing strain relief and enhanced connection strength.
Product Description
Hirose FH28E-60S-0.5SH(05) is a 0.5 mm pitch, 60 way right angle female FPC (Flexible Printed Circuit) connector designed for solder termination. Its robust design includes a reinforced flip-lock actuator which offers easy insertion of FPC/FFC cables and secure retention through a tactile click on full closure. This actuator is supported on either end by metal fittings and held by hooks along the connector's length to prevent disengagement during operation.
The connector accommodates standard 0.3 mm thick FPC/FFC cables and features side catches that ensure secure positioning and strain relief for tabbed FPC cables, enhancing the retention force. Its enclosed design allows mounting over conductive PCB traces without risk of shorting, with contacts located at the bottom and protected by the solid connector base.
Featuring gold plated phosphor bronze contacts and a liquid crystal polymer housing, this connector promises excellent electrical performance and mechanical durability. It is rated for 50V AC voltage and 500mA current and is suitable for applications in industrial equipment, consumer electronics, GPS navigation, test and measurement instruments, barcode readers, and medical devices.
With a temperature operating range from -40°C to 105°C, the FH28 connector series is built for reliable performance in demanding environments. The zero insertion force (ZIF) mechanism reduces wear on cables, increasing system longevity.
Robust flip-lock actuator with tactile closure click for reliable FPC connection. Gold plated phosphor bronze contacts for superior conductivity and corrosion resistance. Liquid crystal polymer housing ensures durability and electrical insulation.
Right angle orientation for space saving on PCBs. Supports 0.5 mm pitch and 60 contact positions in a single row. Suitable for industrial, consumer electronics, medical, and measurement equipment. Wide operating temperature range from -40°C to 105°C.
ZIF insertion mechanism minimizes connector damage and cable wear. Explore more high-quality FPC Connectors and components for advanced electronic designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 0.5 mm pitch and has 60 contacts.
The maximum current rating for this connector is 500mA.
The operating voltage rating is 50V AC.
The housing is made from liquid crystal polymer, and the contacts are gold plated phosphor bronze.
It operates reliably within a temperature range of -40°C to 105°C.
The ZIF mechanism minimizes damage during cable insertion, allowing for easy and secure connections without excessive force.
This connector uses solder termination.
This connector has a right angle orientation, which helps save space on PCBs.
It is designed for use in industrial equipment, consumer electronics, GPS navigation, test and measurement instruments, and medical devices.
The connector includes side catches that improve retention for tabbed FPC cables, providing strain relief and enhanced connection strength.
The country of origin for this connector is Japan.
The contacts are located at the bottom of the connector.
