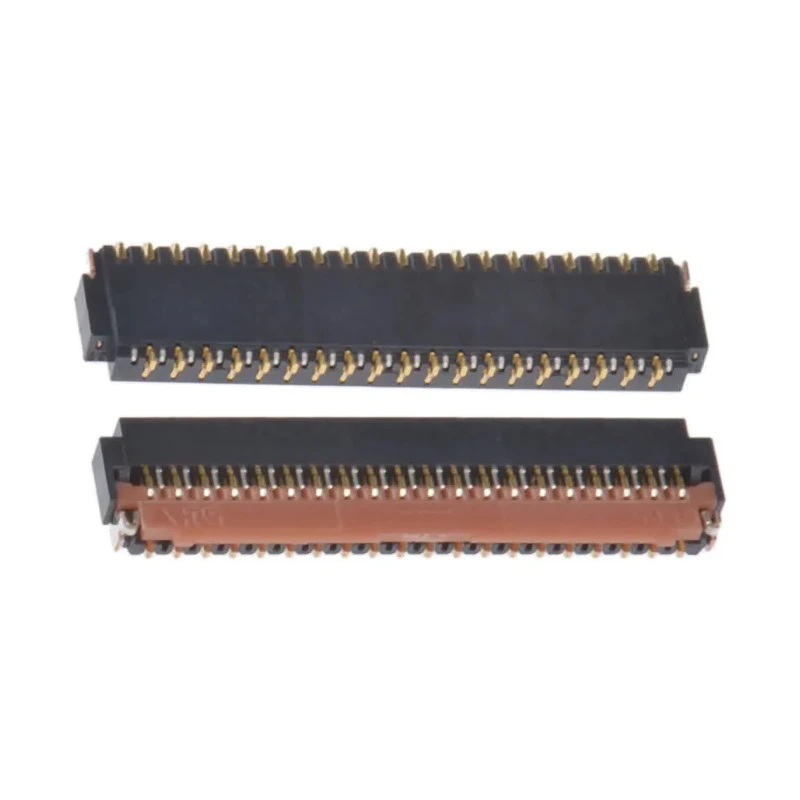

Hirose FH26 0.3 mm Pitch 45 Way Straight Female FPC Connector, Solder
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 200mA |
| Model | FH26 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH26 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.3mm |
| Contact Plating | Gold |
| Number of Contacts | 45 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Low profile design with a height of 1.0 mm for minimal PCB space usage.
- Rotating one-touch actuator ensures secure FPC/FFC insertion and tactile click confirmation.
- Phosphor bronze contacts plated with gold for reliable conductivity and durability.
- Supports voltage rating of 30 V AC and current rating of 200 mA.
- Operating temperature range from -55°C to 85°C suitable for diverse environments.
- Polyamide housing material provides robust insulation and mechanical stability.
- Two rows of contacts enable compact multi-contact connection.
- Metal fittings on connector sides provide precise FPC/FFC alignment without increasing footprint.
Product Description
Hirose FH26W-45S-0.3SHW(97) is a 0.3 mm pitch, 45 way straight female FPC connector designed for surface mount solder applications. The connector features a low profile height of 1.0 mm and a narrow width of 3.2 mm, optimizing PCB real estate for miniaturized electronics.
This zero insertion force (ZIF) type connector includes a rotating one-touch actuator that facilitates easy insertion of flexible printed circuits (FPC) or flexible flat cables (FFC) while ensuring secure retention. The actuator provides a tactile click upon full closure, confirming reliable locking of the connector.
Phosphor bronze contacts are gold plated to ensure high conductivity and resistance to corrosion. These contacts are bottom positioned and female gender, arranged in two rows for compactness. The connector operates reliably within -55°C to 85°C temperature range and supports 30 V AC voltage and 200 mA current rating suitable for portable and mobile electronics applications.
The robust polyamide housing combined with metal fittings on the sides enables precise cable alignment while maintaining a small footprint. The connector design allows mounting over conductive PCB traces without exposing contacts.
Applications include miniaturized portable devices, personal mobile electronics, notebook PCs, mobile phones, PDAs, portable audio devices, and DVD players. The FH26 series connector also meets halogen-free environmental standards according to IEC61249-2-21.
Low profile 1.0 mm height reduces PCB space consumption. Rotating one-touch actuator enables easy insertion and secure locking. Gold-plated phosphor bronze contacts ensure durable and reliable connections. Wide operating temperature from -55°C to 85°C supports diverse environments.
Polyamide housing material offers insulation and mechanical strength. Double-row contact configuration for increased connectivity within small footprint. Metal side fittings allow accurate alignment of FPC/FFC without adding bulk.
Compatible with standard 0.2 mm thick FPCs, meeting halogen-free standards. Ideal for use in portable and mobile electronics like PDAs and audio players. Explore more FPC Connectors and electronic components at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FH26 connector has a pitch of 0.3 mm and features 45 contacts.
This model can operate at a maximum temperature of 85°C.
It supports a voltage rating of 30 V AC and a current rating of 200 mA.
The housing of this connector is made from polyamide, providing robust insulation and mechanical stability.
This connector features a zero insertion force (ZIF) design with a rotating one-touch actuator that ensures secure insertion and locking of FPC/FFC.
The connector has a straight orientation and is designed for surface mount applications.
The contacts are made of phosphor bronze and are gold plated for reliable conductivity and corrosion resistance.
The minimum operating temperature for this connector is -55°C.
This connector features two rows of contacts, allowing for a compact multi-contact connection.
It is suitable for use in miniaturized portable devices, personal mobile electronics, notebook PCs, mobile phones, and portable audio devices.
The connector has a low profile height of 1.0 mm and a width of 3.2 mm, optimizing PCB space.
Yes, it meets halogen-free environmental standards according to IEC61249-2-21.
