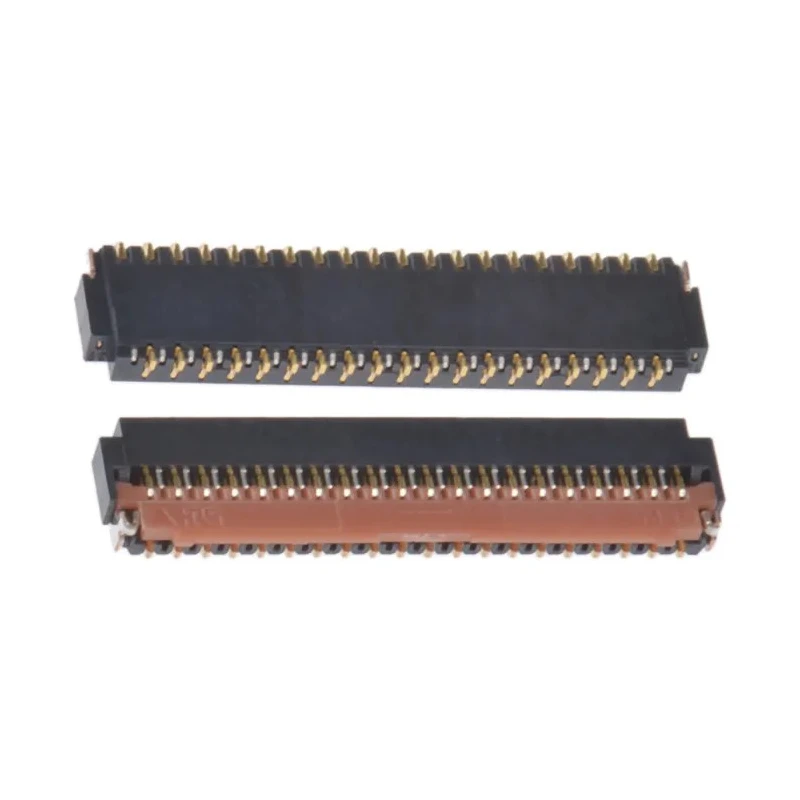

Hirose FH26 0.3 mm Pitch 39 Way Straight Female FPC Connector, Solder
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 200mA |
| Model | FH26 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH26 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.3mm |
| Contact Plating | Gold |
| Number of Contacts | 39 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Low profile design with 1.0 mm height conserves PCB space.
- ZIF (Zero Insertion Force) type ensures easy insertion and removal.
- Phosphor bronze contacts plated with gold for durability.
- Polyamide housing enhances mechanical stability and heat resistance.
- Operates reliably between -55°C and 85°C temperature range.
- Surface mount type compatible with automated PCB assembly.
- Locking mechanism provides secure retention for FPC cables.
- Complies with halogen free standards IEC61249-2-21.
Product Description
Hirose FH26W-39S-0.3SHW(97) is a 39 way straight female FPC (Flexible Printed Circuit) connector with a fine 0.3 mm pitch designed for reliable board-to-cable connections. This FPC connector features a low profile of just 1.0 mm height and a narrow width of 3.2 mm, optimizing PCB space usage for compact electronics.
The connector utilizes a ZIF (Zero Insertion Force) one-touch rotating actuator which facilitates easy insertion of FPC cables while ensuring secure locking, confirmed by a tactile click. The metal fittings guide the FPC for precise alignment without adding bulk beyond the connector body.
Phosphor bronze contacts are gold-plated to guarantee durability and minimize contact resistance, and the connector housing is made from robust polyamide material suitable for demanding environments. Its double-sided leads with 0.6 mm pitch simplify surface mounting on PCBs, which is compatible with automated manufacturing techniques.
The FH26 series operates in a temperature range from -55°C to 85°C and supports a maximum voltage of 30V AC and a current of 200 mA, suitable for use in various portable and mobile devices. Its enclosed design allows it to be safely mounted over conductive PCB traces without risk of short circuits.
This connector is halogen-free meeting the IEC61249-2-21 standard, supporting environmentally responsible electronics manufacturing. Low profile 1.0 mm height minimizes overall device thickness. ZIF actuator ensures zero insertion force during cable installation.
Gold-plated phosphor bronze contact material ensures high reliability. Polyamide housing adds mechanical strength and heat resistance. Secure locking mechanism prevents accidental disconnection. Double-sided leads optimize PCB mounting and soldering.
Operates across a wide temperature range from -55°C to 85°C. Halogen free compliant for safer electronic applications. Designed for miniaturised portable equipment such as mobile phones and PDAs. Enclosed bottom contacts allow mounting over conductive PCB traces safely.
Widely used in industrial, consumer electronics, and telecommunications for compact and robust connections. Explore the range of FPC Connectors at EnvMart for reliable and space-saving interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Hirose FH26 connector is 0.3 mm.
This model can operate at a maximum temperature of 85°C.
The FH26 connector features 39 contacts.
It supports surface mounting, making it compatible with automated PCB assembly.
The housing is made from polyamide, and the contacts are phosphor bronze with gold plating.
The current rating for this connector is 200 mA.
Yes, it complies with halogen-free standards IEC61249-2-21.
It utilizes a Zero Insertion Force (ZIF) mechanism for easy insertion and removal of FPC cables.
The minimum operating temperature for this connector is -55°C.
The FH26 connector has a female connector gender.
This FPC connector is suitable for use in various portable and mobile devices, including industrial and consumer electronics.
The orientation of the Hirose FH26 connector is straight.
