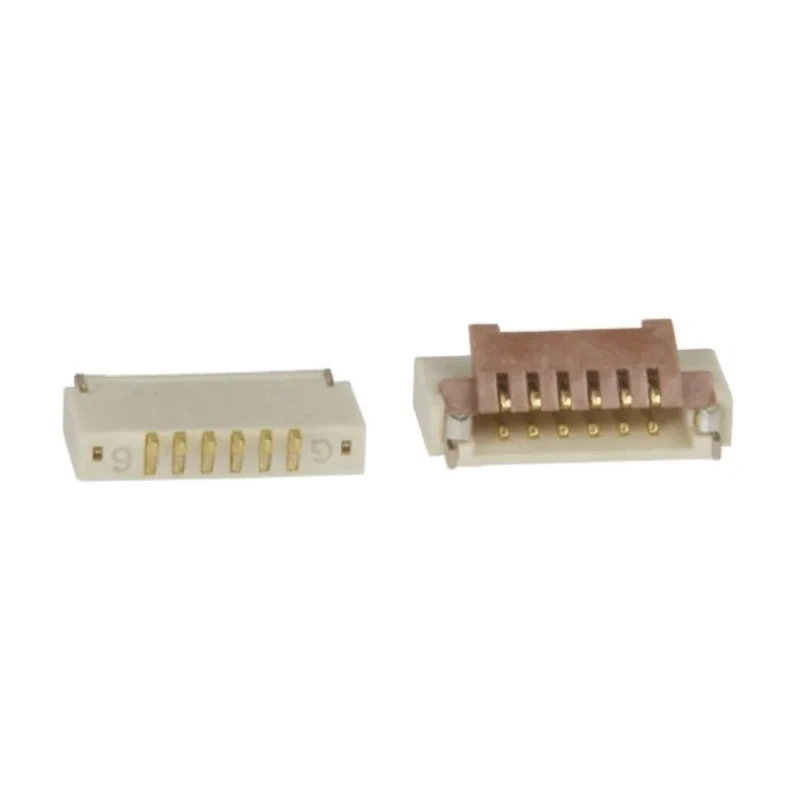

Hirose FH19 0.5 mm Pitch 6 Way Right Angle Female FPC Connector ZIF Bottom Contact

Hirose FH19 model FH19C-6S-0.5SH(05) is a 0.5 mm pitch 6 way right angle female flexible printed circuit (FPC) connector featuring zero insertion force (ZIF) bottom contacts. This connector is specifically designed to offer a low profile height of 0.9 mm and a compact width of 3 mm, ideal for miniaturized portable electronics and space-constrained PCB layouts.

The phosphor bronze contacts are gold plated for superior electrical performance and corrosion resistance. The connector utilizes a rotating flip-lock actuator mechanism that facilitates effortless FPC insertion and secure retention with a tactile click indicating full closure.

The connector housing is made from liquid crystal polymer, providing durability and the ability to mount over conductive traces without risk of shorting. Metal side fittings act as guides and are leadless, maximizing PCB space efficiency while ensuring accurate FPC alignment and secure mechanical retention to the board.

This FH19 series connector supports currents up to 500 mA and voltages up to 50 V AC, operating reliably across a temperature range of -55°C to 85°C. It is suitable for diverse applications such as mobile phones, notebook PCs, PDAs, portable audio devices, and other miniaturized or handheld electronic equipment.

The single-row configuration with 6 contacts and right angle orientation makes this connector optimal for applications requiring efficient cable routing and compact design. Its enclosed bottom contact design prevents exposure of contacts, enhancing safety and durability.

Zero insertion force bottom contact ensures easy and damage-free cable installation. Low profile and reduced PCB footprint enable compact electronic device designs. Robust locking actuator with tactile feedback for secure connections.

Gold plated phosphor bronze contacts enhance conductivity and corrosion resistance. Liquid crystal polymer housing allows mounting over conductive PCB traces. Metal fittings provide mechanical stability and alignment without lead space usage.

Wide operating temperature and voltage/current ratings suitable for portable electronics. Applications include mobile devices, notebook PCs, PDAs, and audio players. Explore a wide range of electronic connectors and components suitable for industrial, commercial, and consumer electronic applications on EnvMart.
