Hirose FH52 0.5 mm Pitch 22 Way Straight Female FPC Connector, Solder FH52

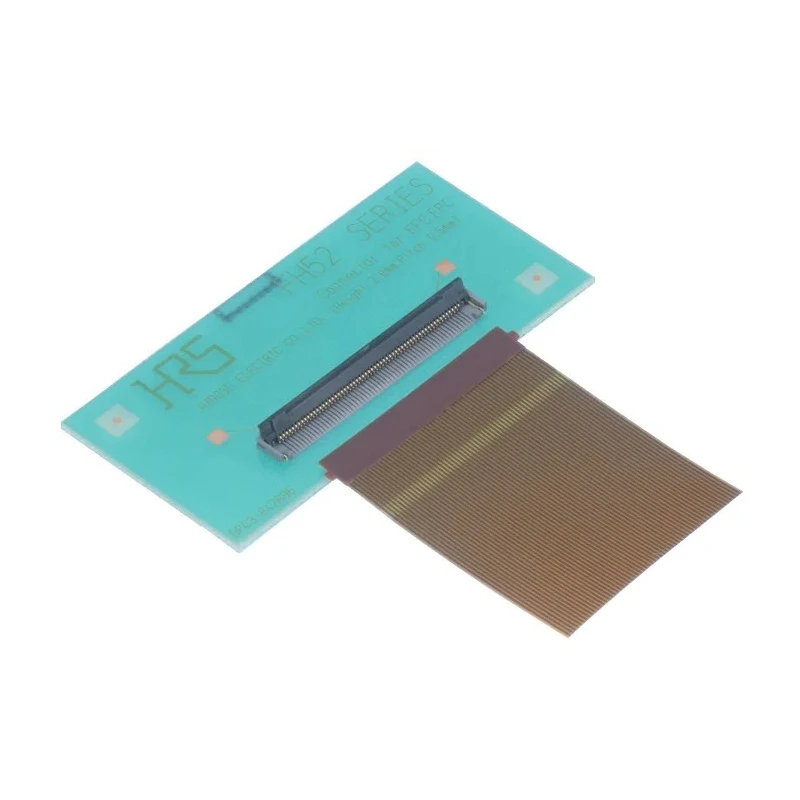

Hirose FH52 0.5 mm Pitch 22 Way Straight Female FPC Connector, model FH52, is designed for surface mount technology applications requiring a durable and reliable FPC/FFC connection with solder termination. This connector features a low profile mated height of 2 mm and a robust structure with a high retention force, ensuring secure connections in compact electronic assemblies.

The connector includes an easy to use rotating flip lock actuator that produces a tactile click upon full closure to confirm a firm lock. Metal fittings inside the housing enhance actuator retention and stabilization, while the contacts use a two-point design to increase electrical reliability. Side catches inside the housing guide and temporarily hold tabbed FPC/FFC in place to maintain a consistent connection until the lock actuator is engaged.

Its bottom is fully molded without exposed contacts, allowing mounting over conductive PCB traces, supporting streamlined PCB layout and patterning. The FH52 series is compliant with halogen free standards as per IEC 61249-2-21, making it suitable for environmentally conscious product designs.

Key specifications include a pitch of 0.5 mm, 22 contact positions, and operation at 50 V AC with a current rating of 500mA. It operates reliably within a temperature range of -40°C to 105°C and uses gold-plated copper alloy contacts with liquid crystal polymer housing for durability and performance.

This FPC Connector is ideal for industrial, laboratory, electronic manufacturing, and telecommunications applications including audio/video devices, portable medical instruments, notebook PCs, LCD and digital TVs, sat receivers, printers, and automotive navigation systems.

Low profile 2 mm mated height suitable for tight electronic packaging. Rotating flip lock actuator for simple, secure FPC insertion. Metal fittings increase actuator retention and stability. Two-point contact design for enhanced electrical reliability.

Side catches guide and retain tabbed FPC/FFC cables effectively. Surface mount compatible and supports automatic pick-and-place mounting. Gold plated copper alloy contacts with liquid crystal polymer housing. Rated for 22 contacts with 0.5 mm pitch, 500mA current, and 50V AC voltage.

Wide operating temperature range from -40°C to 105°C. Halogen free compliant as per IEC 61249-2-21 environmental standards. Explore a comprehensive range of high-quality connectors and electronic components at EnvMart for your industrial and commercial needs.
