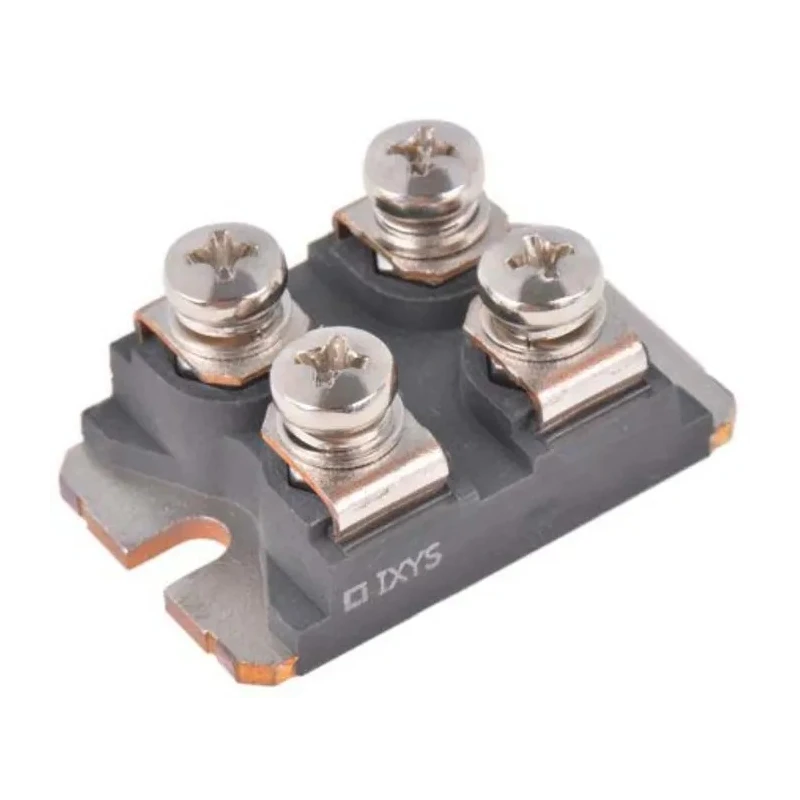

IXYS Dual Thyristor Module 1600 V, 150 A, 100 mA Gate Trigger Current, 865 A Surge Current MMO90-16io6

IXYS MMO90-16io6 Dual Thyristor Module is a high-performance SCR AC power control device designed for industrial and electronic control applications requiring robust and reliable full-wave AC switching.

The module contains two back-to-back silicon-controlled rectifiers (SCRs) in a surface mount package with an isolated copper baseplate (SOT-227B), providing good heat transfer and electrical isolation suitable for harsh industrial environments.

This dual thyristor module supports a rated average on-state current of 150 A and can withstand a repetitive peak reverse voltage of 1600 V, making it capable of handling significant power loads and high-voltage AC circuits.

With a surge current rating of 865 A, it tolerates transient current spikes for durability and safety. The device operates across a wide temperature range from -40°C to 125°C, maintaining performance reliability.

The maximum gate trigger current is limited to 100 mA, ensuring precise triggering control, while the maximum holding current is also 100 mA. The peak on-state voltage of 1.27 V helps in maintaining efficient conduction with low losses.

The module complies with IEC 60747 standards, RoHS regulations, and uses epoxy encapsulation that meets UL 94V-0 flame retardant class, making it suitable for use in commercial and industrial power control equipment.

Typical applications include battery chargers, welders, plating equipment, regulated power supplies, and circuits requiring temperature and speed control. This module contains two back-to-back SCR thyristors enabling full wave AC power switching.

Features isolated copper baseplate with two-hole M4 screw fixing for efficient heat dissipation and mechanical stability. Has a maximum surge current rating of 865 A suitable for high transient load tolerance. Operates within temperatures ranging from -40°C to 125°C, ensuring durability in harsh environments.

The device is packaged in industry-standard SOT-227B isolated base housing for electrical isolation. Maximum gate trigger current is 100 mA with a holding current of 100 mA and gate trigger voltage of 1.6 V. Peak on-state voltage is 1.27 V ensuring efficient conduction losses.

Fully compliant with IEC 60747 and RoHS standards and epoxy meets UL 94V-0 safety rating. Ideal for use in regulated power supplies, battery chargers, welders, plating equipment, temperature and speed control circuits. Explore our Electronics & Electricals Semiconductors Thyristor Module category for more power control devices from IXYS and other leading brands on EnvMart.
