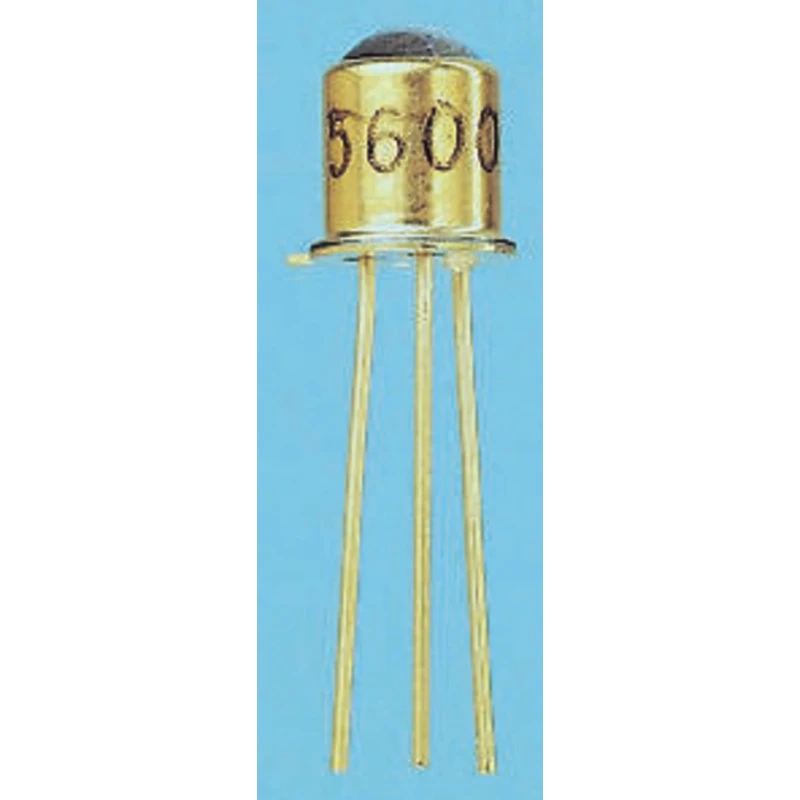

ams OSRAM Phototransistor Visible Light, Infrared, Through Hole 3-Pin TO-18 Package BPY 62-4
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.8mm |
| Brand | ams OSRAM |
| Height | 6.2mm |
| Length | 5.6mm |
| Model | BPY 62-4 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | BPY 62 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, IEC 62471 2006 |
| Number of Pins | 3 |
| Typical Fall Time | 12μs |
| Peak Wavelength | 830nm |
| Spectrums Detected | Visible Light, Infrared |
| Angle of Half Sensitivity | 16 ° |
| Collector Current | 100mA |
| Maximum Light Current | 5800μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 7V |
Key Features
- The phototransistor detects visible light and infrared spectrums with a peak wavelength of 830nm.
- It features fast response times with typical rise and fall times of 12 microseconds each.
- The device provides a maximum light current of 5800µA and a low dark current of 50nA.
- Designed for through hole mounting, it operates reliably between -40°C and 125°C.
- The TO-18 package dimensions include a height of 6.2mm, length and width of 5.6mm, and a diameter of 4.8mm.
- The maximum collector current and voltage ratings are 100mA and 35V respectively, with an emitter collector voltage of 7V.
Product Description
ams OSRAM BPY 62-4 is a high-quality phototransistor designed to operate under visible and infrared light spectrums. Housed in a durable through hole TO-18 3-pin package, it supports industrial and electronic applications requiring reliable light detection with a narrow angle of half sensitivity at 16 degrees.
This phototransistor features fast switching speeds with typical rise and fall times of 12 microseconds, suited for precise light sensing tasks. It achieves a peak sensitivity at 830nm wavelength and delivers a maximum light current of 5800 microamps, while maintaining minimal dark current leakage of 50 nanoamps.
The device is rated for voltages up to 35V at the collector and can handle a collector current of up to 100mA, ensuring robust performance in varied electrical conditions. Thermally reliable, it operates safely from -40°C up to 125°C, suitable for demanding industrial or laboratory environments.
Compact with physical dimensions of 6.2mm height, 5.6mm length and width, and 4.8mm diameter, the TO-18 package allows easy integration on printed circuit boards through through-hole mounting. These features make it ideal for electronic components, optoelectronics systems, light measurement instruments, and automation sensor applications.
The phototransistor detects visible and infrared spectrums for versatile lighting applications. Fast response times ensure efficient signal conversion and accurate detection. Wide operating temperature range supports industrial and environmental conditions.
Compact TO-18 packaging facilitates straightforward PCB mounting and replacement. Robust electrical parameters provide reliability in various circuit designs.
This ams OSRAM BPY 62-4 phototransistor is suitable for use in industrial, electronic manufacturing, instrumentation, and research labs requiring sensitive, fast, and accurate light detection solutions. Explore more products in the Phototransistors category on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this phototransistor is 830nm, making it suitable for detecting both visible light and infrared spectrums.
This model features typical rise and fall times of 12 microseconds each, allowing for fast response in light detection applications.
The maximum collector current is 100mA, and the maximum collector voltage is 35V, ensuring robust performance in various circuit designs.
It operates reliably between -40°C and 125°C, making it suitable for demanding industrial and laboratory environments.
The TO-18 package has a height of 6.2mm, a length of 5.6mm, a width of 5.6mm, and a diameter of 4.8mm.
The angle of half sensitivity for this model is 16 degrees, allowing for targeted light detection.
This phototransistor features a total of 3 pins, designed for through-hole mounting.
The maximum light current that this phototransistor can provide is 5800µA, enabling effective light sensing capabilities.
This model complies with RoHS and IEC 62471 2006 standards, ensuring it meets specific environmental and safety regulations.
It can detect both visible light and infrared spectrums, making it versatile for various applications.
The maximum dark current for this phototransistor is 50nA, indicating minimal leakage when no light is present.
This phototransistor is suitable for use in electronic manufacturing, instrumentation, and research labs requiring sensitive light detection solutions.
