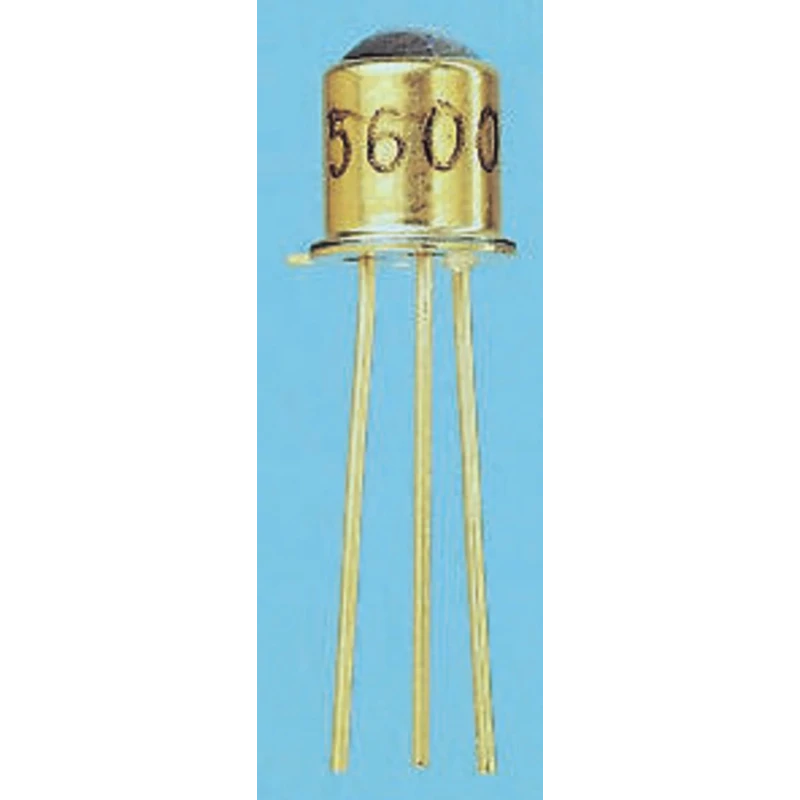

ams OSRAM Phototransistor Visible Light Infrared Through Hole 3-Pin TO-18 Package BPY 62
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.8mm |
| Brand | ams OSRAM |
| Height | 6.2mm |
| Length | 5.6mm |
| Model | BPY 62 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | BPY 62 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | IEC 62471 2006, RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 12μs |
| Peak Wavelength | 830nm |
| Spectrums Detected | Visible Light, Infrared |
| Angle of Half Sensitivity | 16 ° |
| Collector Current | 100mA |
| Maximum Light Current | 500μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 7V |
Key Features
- Detects both visible light and infrared spectra effectively.
- Typical rise and fall time of 12 microseconds ensures quick response.
- Peak wavelength sensitivity at 830 nanometers.
- Maximum light current of 500 microamps and dark current of 50 nanoamps.
- Can operate in temperature ranges from -40° to 125° Celsius.
- TO-18 package provides compact size with 5.6 mm length and 4.8 mm diameter.
- Maximum collector current is 100 milliamps ensuring robustness in applications.
- Designed with 3 pins for through-hole mounting on PCBs.
Product Description
ams OSRAM BPY 62 phototransistor is a through-hole 3-pin device packaged in a TO-18 metal can, designed for reliable detection of visible light and infrared spectra. It features a narrow 16° angle of half sensitivity, making it suitable for applications requiring precise light detection.
The phototransistor has a typical rise and fall time of 12 microseconds, allowing fast switching performance. Its peak wavelength sensitivity is at 830 nm, which aligns well with common infrared applications.
With a maximum collector current of 100 mA and collector emitter voltage of 35 V, the BPY 62 offers robust operation in varied circuit designs. The device withstands operating temperatures from -40°C up to 125°C, suitable for industrial and commercial environments.
The TO-18 package measures 5.6 mm in length and width, and 4.8 mm in diameter, making it compact for PCB integration. It meets IEC 62471 2006 safety standards and RoHS compliance ensuring environmental friendliness and safety.
Typical uses include optoelectronics, electronic components for sensing and switching circuits, and in systems where visible and infrared light detection is required. The phototransistor is ideal for industrial, laboratory, construction, and electronic manufacturing applications.
Detects visible light and infrared spectra with high sensitivity. Fast response times with 12μs rise and fall times. Compact TO-18 through-hole package for simple mounting. Operates reliably over a wide temperature range (-40°C to 125°C).
Endorsed with IEC 62471 and RoHS certifications for safety and compliance. Supports maximum collector current of 100mA and voltage up to 35V CE voltage. Robust design suited for various industrial and electronic uses. Peak wavelength at 830nm optimizes infrared detection capabilities.
Explore a wide range of Phototransistors and optoelectronic components available at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength sensitivity of the BPY 62 phototransistor is at 830 nanometers, which is optimal for infrared detection applications.
This unit supports a maximum collector current of 100 milliamps, allowing it to handle robust applications.
The typical rise and fall time of this phototransistor is 12 microseconds, ensuring quick response performance.
The TO-18 package measures 5.6 mm in length and width, and 4.8 mm in diameter, providing a compact size for PCB integration.
It can operate in temperatures ranging from -40°C to 125°C, making it suitable for various environments.
This model meets IEC 62471 2006 safety standards and is RoHS compliant, ensuring environmental friendliness and safety.
The phototransistor is designed with 3 pins for through-hole mounting on PCBs.
It effectively detects both visible light and infrared spectra, making it versatile for various applications.
The maximum collector-emitter voltage for the BPY 62 is 35 volts, allowing it to operate in a range of circuit designs.
The angle of half sensitivity for this model is 16°, which is suitable for applications requiring precise light detection.
The maximum dark current for this phototransistor is 50 nanoamps, ensuring minimal interference in low-light conditions.
This phototransistor is suitable for optoelectronics, sensing and switching circuits, and various industrial and electronic applications.
