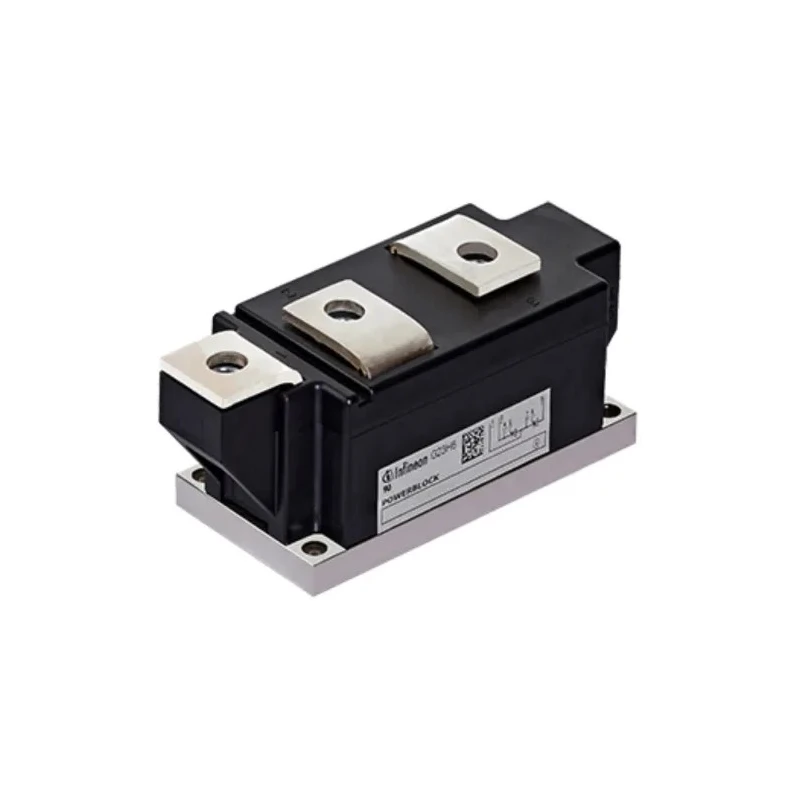

Infineon Thyristor Module 1800 V 20 kA 775 A 250 mA 1.35 V TT780N18KOFHPSA1

Infineon TT780N18KOFHPSA1 Thyristor Module is designed for industrial power control applications requiring high voltage and current ratings. This module supports a repetitive peak reverse voltage of 1800 V and can handle surge currents up to 20 kA, making it suitable for demanding power electronics systems.

Its rated average on-state current of 775 A allows it to manage substantial power in AC circuits, while the low peak on-state voltage of 1.35 V reduces power losses during conduction. The module operates safely in environments up to 135°C, ensuring durability under thermal stress.

The module incorporates advanced pressure contact technology to provide high reliability and consistent performance over its operational life. Maximum gate trigger current and voltage of 250 mA and 2 V respectively enable precise and efficient triggering control. Its chassis mount design with a 60 mm base plate offers ease of integration into various industrial setups.

This thyristor module is well suited for use in industrial power supplies, motor controls, and other power electronic assemblies demanding robust on/off state switching at high voltages and currents. It is adaptable across manufacturing, industrial automation, and electrical power distribution systems.

Supports rated average on-state current of 775 A. Maximum gate trigger current of 250 mA. Maximum gate trigger voltage of 2 V. Maximum operating temperature of 135°C. Pressure contact technology for high reliability. Chassis mount with 60 mm base plate.

Peak on-state voltage of 1.35 V. Repetitive peak off-state current of 120 mA. Explore more semiconductor and Thyristor Modules at EnvMart for your industrial electronics needs.
