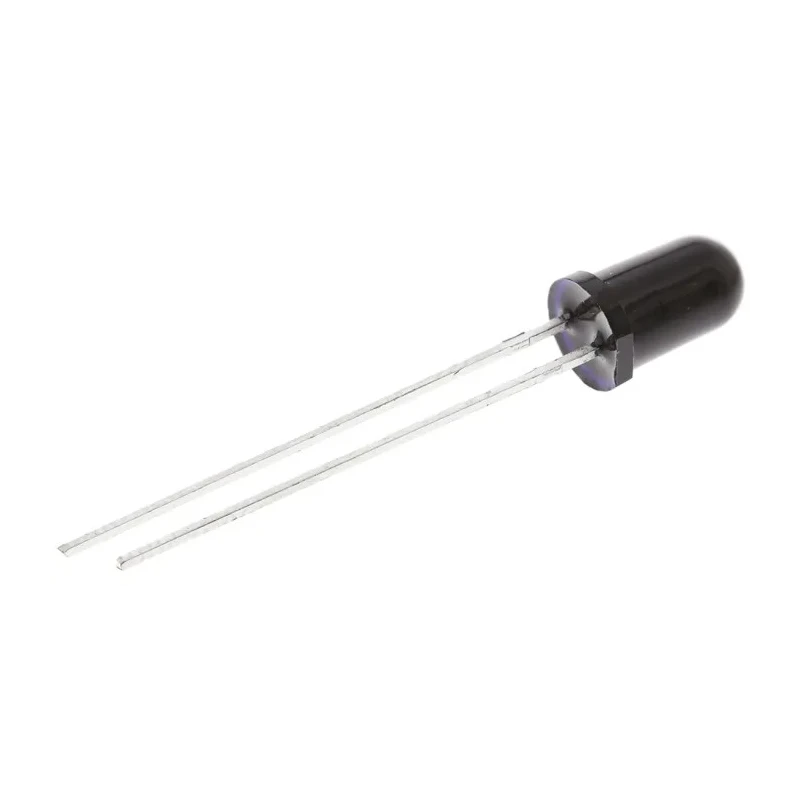

ams OSRAM Infrared Photodiode, 20° Half Sensitivity Angle, Through Hole T-1 3/4 Package SFH 213 FA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 9mm |
| Length | 5.9mm |
| Model | SFH 213 FA |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | SFH |
| Short Circuit Current | 71μA |
| Maximum Operating Temperature | 85°C |
| Package Type | T-1 3/4 |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 5nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.005μs |
| Wavelength of Peak Sensitivity | 900nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 20V |
| Minimum Wavelength Detected | 750nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 20 ° |
| IR T-1 PIN Photodiode 20°,SFH213FABrand | OSRAM Opto Semiconductors |
Key Features
- Detects infrared spectrum with peak sensitivity at 900nm.
- Features a radiant sensitive area of 1 x 1 mm².
- Typical rise and fall times of 0.005μs for rapid response.
- Operates reliably from -40°C to 85°C.
- Mount type is through-hole with 2 pins for easy PCB integration.
- Maximum breakdown voltage is 20V ensuring operational safety.
- Low dark current of 5nA minimizes noise interference.
- Comes in a standard T-1 3/4 (5mm) package sealed for durability.
Product Description
ams OSRAM SFH 213 FA Infrared Photodiode is designed for efficient IR detection in industrial and electronic applications. Featuring a 20° angle of half sensitivity and a standard T-1 3/4 through-hole package, it provides a compact and reliable component for integration into high-speed photointerrupters, industrial electronics, and control systems.
This PIN photodiode offers a peak sensitivity wavelength at 900nm within the infrared spectrum, with a radiant sensitive area measuring 1 x 1 mm². It delivers exceptional switching speed, marked by typical rise and fall times of 0.005μs, ensuring precise and rapid signal detection.
Operational stability is maintained over a wide temperature range from -40°C up to 85°C, supporting reliability in harsh industrial environments. Its through-hole mount type with 2 pins enables straightforward assembly onto circuit boards. The device supports a maximum breakdown voltage of 20V and has a low dark current of 5nA, optimizing signal clarity by reducing unwanted noise.
The SFH 213 FA is packaged in the standard T-1 3/4 format (5mm) which enhances its mechanical robustness and user-friendly handling during manufacturing processes. This photodiode is compliant with RoHS standards, ensuring environmentally safe usage.
Detects infrared light with peak sensitivity at 900nm. Compact 5mm T-1 3/4 through-hole package for easy integration. High-speed response with 0.005μs rise and fall times. Operational temperature range from -40°C to 85°C.
Low noise due to minimal dark current (5nA). Maximum breakdown voltage of 20V for safety. Two-pin through-hole mounting method. Compliant with RoHS environmental standards. Ideal for photointerrupters, industrial electronics, and control circuits.
This photodiode is ideal for use in industrial electronics, laboratory devices, control and drive circuits, and various other electronic and measurement applications requiring fast and reliable IR detection.
Browse EnvMart's extensive selection of Photodiodes and electronic components to find complementary products for your industrial and commercial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of this model is 900nm within the infrared spectrum.
It operates reliably within a temperature range of -40°C to 85°C.
The dimensions of the T-1 3/4 package are 5.9mm in length, 5mm in width, and 9mm in height.
The maximum breakdown voltage is 20V, ensuring operational safety.
This model has typical rise and fall times of 0.005μs, allowing for rapid response.
It uses a through-hole mounting method with 2 pins for easy PCB integration.
The dark current is low at 5nA, which minimizes noise interference.
This photodiode is suitable for industrial electronics, laboratory devices, control circuits, and various electronic measurement applications.
The radiant sensitive area of this model is 1 x 1 mm².
Yes, it is compliant with RoHS standards, ensuring environmentally safe usage.
The open circuit voltage is 350mV.
The short circuit current rating is 71μA.
