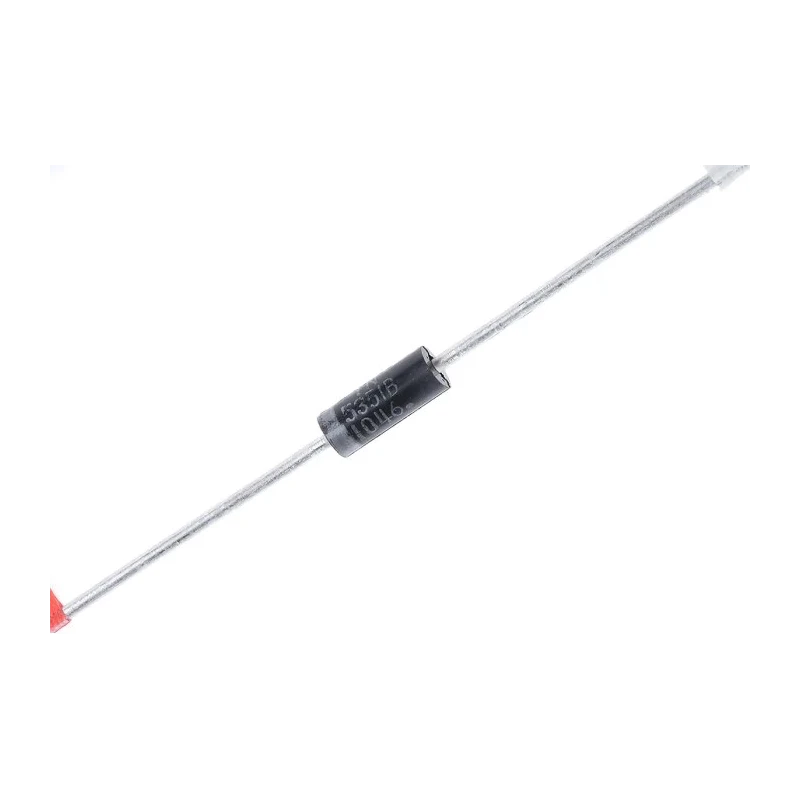

onsemi 14 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5351BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 14 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5351BRLG

Name: onsemi 14 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5351BRLG
Brand: onsemi
SKU: 202100
Price: 0.33 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5351BRLG
Mount Type	Through Hole
Series	1N5351B
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	100mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	14V
Zener Type	Voltage Regulator
Maximum Zener Impedance	2.5Ω
14V Zener diode,1N5351B 5WBrand	ON Semiconductor

Key Features

This diode features a nominal Zener voltage of 14 volts.
It supports a maximum power dissipation of 5 watts.
The package type is a DO-15 axial lead with two pins for through hole mounting.
The device has a Zener voltage tolerance of ±5% ensuring stable voltage regulation.
It features a maximum reverse leakage current of 1 microampere and a test current of 100 mA.
Designed to operate between -65°C to 200°C for harsh industrial environments.
Low maximum Zener impedance of 2.5 ohms for improved performance.
Constructed from corrosion resistant molded thermosetting plastic for durability.

Product Description

onsemi 1N5351BRLG Zener Diode is a single-element voltage regulator diode rated for 14 volts nominal Zener voltage and 5 watts power dissipation. Packaged in a DO-15 2-pin axial lead configuration for through hole mounting, this diode is designed for reliable voltage regulation in industrial electronic systems.

The device offers a tight voltage tolerance of ±5%, providing consistent voltage clamping in sensitive circuits. It operates over a broad temperature range from -65°C to 200°C, making it suitable for demanding environments and long-term industrial use.

The diode is built with corrosion resistant, transfer-molded thermosetting plastic packaging, which ensures protection against common environmental conditions. Its leads are designed for easy soldering and mechanical stability during assembly.

Key technical features include a maximum reverse leakage current of just 1 microampere and a low maximum Zener impedance of 2.5 ohms, which contribute to efficient voltage regulation performance.

This diode features a nominal Zener voltage of 14 volts. It supports a maximum power dissipation of 5 watts. The package type is a DO-15 axial lead with two pins for through hole mounting. The device has a Zener voltage tolerance of ±5% ensuring stable voltage regulation.

It features a maximum reverse leakage current of 1 microampere and a test current of 100 mA. Designed to operate between -65°C to 200°C for harsh industrial environments. Low maximum Zener impedance of 2.5 ohms for improved performance.

Constructed from corrosion resistant molded thermosetting plastic for durability. Suitable for industrial voltage regulation and protection applications. RoHS compliant ensuring environmental safety. Package dimension length is 8.89 mm and height is 3.68 mm.

Typical use cases for this Zener diode include voltage regulation, voltage reference in power supplies, and protecting circuits from voltage transients in industrial, manufacturing, and electronic design applications.
