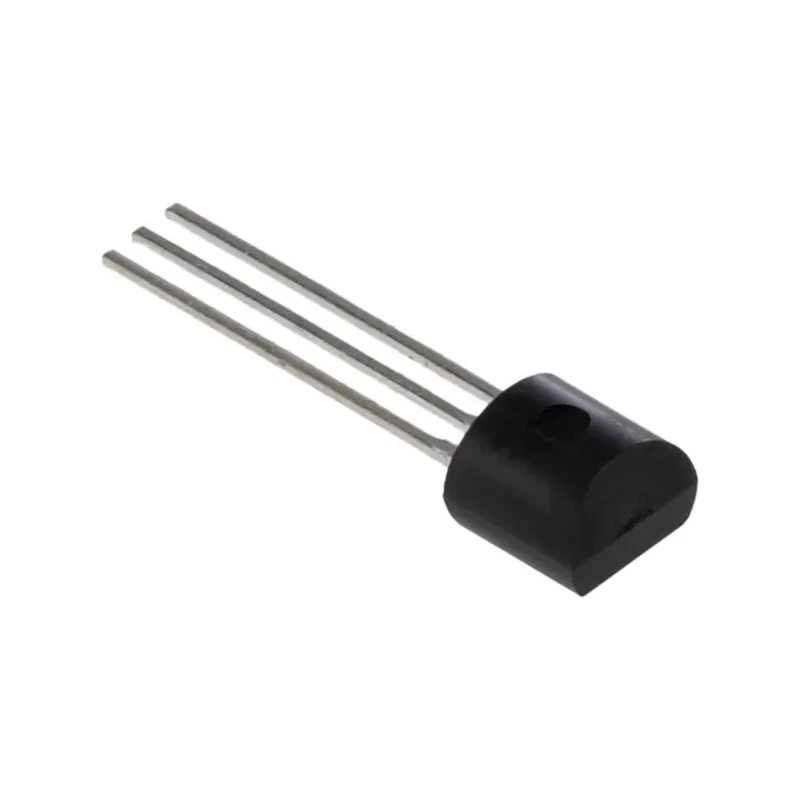

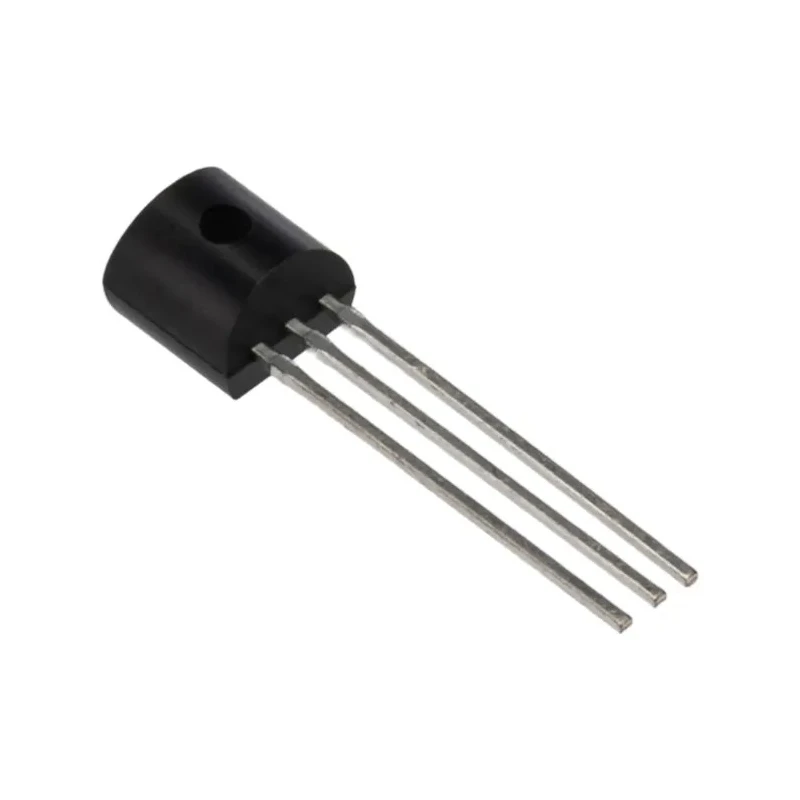

Texas Instruments Fixed Shunt Voltage Reference 2.5V, ±4% Accuracy, 10mA Output Current, 3-Pin TO-92 Package LM336Z-2.5/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | LM336Z-2.5/NOPB |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | LM336 |
| Temperature Coefficient | 20 ppm/°C |
| Output Current | 10mA |
| Topology | Shunt |
| Maximum Operating Temperature | 70°C |
| Package Type | TO-92 |
| Load Regulation | 10 mV |
| Minimum Operating Temperature | 0°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 2.54V |
| Minimum Input Voltage | 2.44V |
| Pin Count | 3 |
| Reference Voltage | 2.5V |
| Initial Accuracy | ±4 % |
| TO92voltage reference IC,LM336Z2.5 2.49VBrand | Fairchild Semiconductor |
Key Features
- This IC provides a precise and stable 2.5V fixed voltage reference.
- It features a typical output current of 10mA suitable for regulated power supplies.
- The device operates within a temperature range of 0°C to 70°C ensuring reliable performance.
- The TO-92 package facilitates easy through-hole mounting on printed circuit boards.
- The IC has a temperature coefficient of 20 ppm/°C for stable voltage output across temperature variations.
- Maximum input voltage supported is 2.54 V, and minimum input voltage of 2.44 V.
- Designed with shunt topology for effective voltage referencing applications.
- Initial accuracy is ±4% making it suitable for general voltage reference needs.
Product Description
Texas Instruments LM336Z-2.5/NOPB is a fixed shunt voltage reference integrated circuit that delivers a precise 2.5V output with an initial accuracy of ±4%. Packaged in a compact 3-Pin TO-92 through-hole form factor, it ensures easy implementation on circuit boards. The device is designed for use in various power management and regulation applications, delivering a stable reference voltage with a low temperature coefficient of 20 ppm/°C that guarantees consistent performance over the 0°C to 70°C operating temperature range.
This Voltage Reference IC supports output currents up to 10mA with excellent load regulation of 10 mV, maintaining voltage stability under varying current conditions. The shunt topology provides a simple yet robust mechanism for voltage referencing, with a maximum input voltage rating of 2.54V and minimum input voltage of 2.44V.
The LM336 series voltages references from Texas Instruments are widely used in industrial, laboratory, construction, HVAC, and commercial electronics for precision voltage regulation and power supply stabilization. Its reliable fixed output type and through-hole mount package make it suitable for maintenance-friendly PCB designs.
This IC offers a precise 2.5V fixed voltage output with ±4% accuracy suitable for general voltage reference applications. 10mA output current supports a wide variety of regulated power circuits. Temperature coefficient of 20 ppm/°C maintains voltage stability over temperature variations.
TO-92 package provides easy mounting and replacement on through-hole PCBs. Operating temperature range from 0°C to 70°C ensures good performance in varying environments. Shunt topology ensures consistent voltage reference in power management circuits.
Load regulation of 10 mV offers minimal voltage variation under load changes. Maximum input voltage of 2.54V and minimum input voltage of 2.44V ensure operational compatibility in precision circuits.
Explore the range of Texas Instruments power management ICs and voltage reference products at EnvMart for industrial and commercial applications. This component supports design innovation and stability in electrical and electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 2.5V.
The initial accuracy of the LM336Z-2.5/NOPB is ±4%.
It supports a maximum output current of 10mA.
The operating temperature range is from 0°C to 70°C.
This voltage reference IC is packaged in a 3-Pin TO-92 form factor.
The load regulation is 10 mV, ensuring minimal voltage variation under load changes.
It has a temperature coefficient of 20 ppm/°C.
The minimum input voltage is 2.44V and the maximum input voltage is 2.54V.
This voltage reference uses a shunt topology for effective voltage referencing applications.
The TO-92 package allows for easy through-hole mounting on printed circuit boards.
It is commonly used in power management and regulation applications for precision voltage regulation.
The dimensions of this model are 5.2mm in height and 5.2mm in length.
