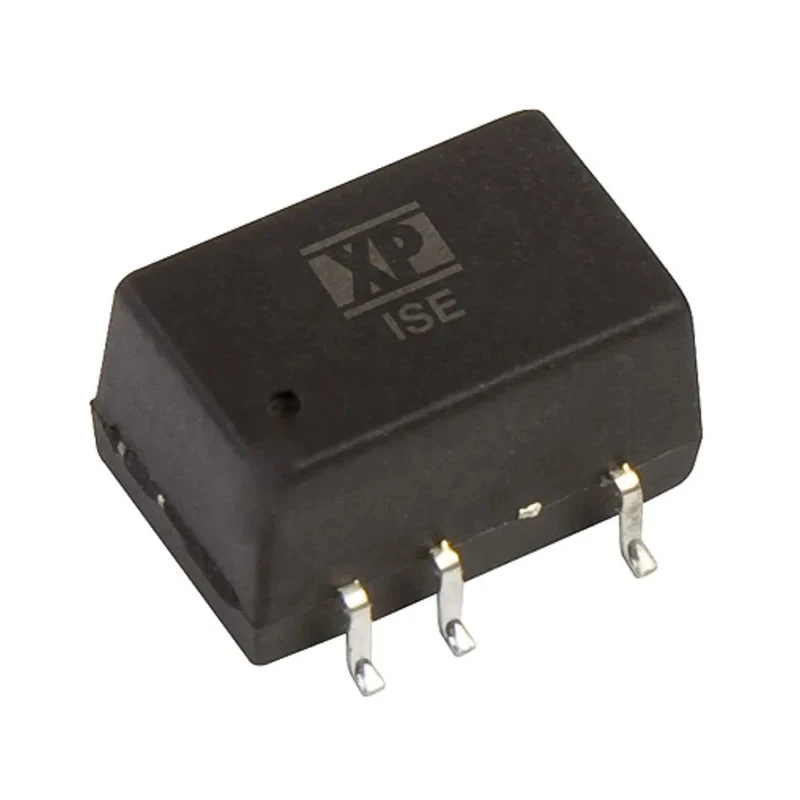

XP Power Isolated DC-DC Converter 5V DC Output 200mA 3.63V/2.97V DC Input 1W Surface Mount 105°C Operating ISE0305A-H

XP Power ISE0305A-H is an isolated DC-DC converter designed to deliver a reliable 5V DC output at 200 mA from an input voltage range of 2.97V to 3.63V. It has a maximum output power of 1 Watt and is housed in a compact surface mount package, making it ideal for dense electronic environments. This converter supports operation in extreme temperatures from -40°C to +105°C, suitable for harsh industrial and electronic conditions.

The device ensures enhanced safety with a high isolation voltage rated at 1500 VDC, with options for up to 3000 VDC, protecting sensitive circuits from electrical interference and potential damage. The output exhibits low ripple and noise, with peak-to-peak values of only 30 mV, maintaining signal integrity in precision applications.

This 8-pin package provides a straightforward footprint for PCB assembly and enjoys wide recognition with certifications such as UL, UKCA, and CE approvals. The unit’s mean time between failures (MTBF) is estimated at 3.5 million hours, reflecting its high reliability and durability in critical systems.

Key features include a compact form factor with dimensions of 12.7 mm length, 8.3 mm width, and 7 mm depth. Efficiency ratings stand at 74%, optimizing power usage while minimizing heat generation and extending device lifespan.

This DC-DC converter finds applications across various sectors including industrial control, telecommunications, instrumentation, automation, and medical devices. Its surface mount design enables seamless integration into modern electronic assemblies demanding isolated power conversion.

Provides isolated DC-DC conversion with 1W maximum output power. Compact surface mount package with industry standard pinout. High isolation voltage of 1500V to 3000V DC for safety and reliability. Low ripple and noise output at 30mV peak-to-peak.

Wide operating temperature range from -40°C to +105°C. Robust design ensuring a mean time between failures (MTBF) of 3.5 million hours. High efficiency converter with 74% efficiency rating. UL, UKCA, and CE approved standards compliance.

Small form factor: 12.7mm length, 8.3mm width, and 7mm depth. Single output with 8 pins for easy integration onto PCBs.

Choose XP Power ISE0305A-H for dependable, compact isolated power conversion in demanding electronic and industrial applications. Explore additional DC-DC Converter options and related XP Power products on EnvMart for your power management needs.
