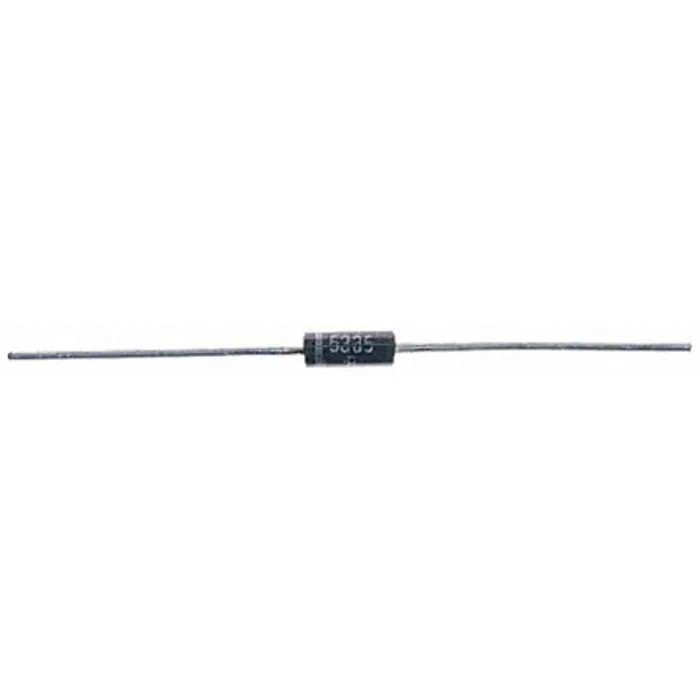

onsemi 8.7 V 5 W Zener Diode Single Through Hole 2-Pin DO-15 1N5345BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5345BRLG |
| Mount Type | Through Hole |
| Series | 1N5345B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 150mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 8.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
| 8.7V Zener diode,1N5345B 5WBrand | ON Semiconductor |
Key Features
- Nominal Zener voltage of 8.7 V with ±5% tolerance ensures stable voltage regulation.
- Maximum power dissipation of 5 watts suitable for moderate power applications.
- Through hole mounting with axial leads for easy PCB integration.
- Peak test current of 150 mA supports reliable Zener operation.
- High maximum operating temperature of 200°C and low minimum operating temperature of -65°C.
- Low maximum reverse leakage current of 10 μA for high efficiency.
- Compact package dimensions of 8.89 mm length and 3.68 mm height for space-saving designs.
- Corrosion resistant molded thermosetting plastic packaging provides environmental protection.
Product Description
onsemi 1N5345BRLG is a high-quality Zener Diode designed for reliable voltage regulation in electronic circuits. With a nominal Zener voltage of 8.7 V and a power dissipation rating of 5 W, this device offers stable and efficient voltage control for various industrial and commercial applications. The single diode configuration in a DO-15 through hole package provides easy integration on printed circuit boards.
The diode features a tightly controlled ±5% voltage tolerance, ensuring consistent performance under operational stresses. Its molded, void-free transfer-molded thermosetting plastic package protects against corrosion and environmental conditions, making it suitable for demanding environments.
Operating temperature range from -65°C to 200°C accommodates harsh industrial conditions. The maximum reverse leakage current is limited to 10 μA, enhancing device efficiency and reducing power loss. The device supports a test current of 150 mA, ideal for voltage regulating and voltage clamping roles in power supplies and electronic circuitry.
The compact physical dimensions of 8.89 mm length and 3.68 mm height make it suitable for space-sensitive designs. Its axial leads simplify mounting and soldering in through hole applications.
This 2-pin DO-15 Zener diode is part of the onsemi 1N5345B series, recognized for their robust build quality and reliable voltage regulation characteristics. Commonly utilized in power management, voltage stabilization, and overvoltage protection circuits across industrial, manufacturing, and laboratory electronic systems.
Nominal Zener voltage of 8.7 V with tight tolerance. Power dissipation of 5 W supports moderate power requirements. Durable thermosetting plastic DO-15 package protects against environmental influences. Wide operating temperature range from -65°C to 200°C ensures usage in extreme conditions.
Low leakage current and stable Zener impedance for efficient operation.
Explore the extensive range of semiconductor components at EnvMart for reliable voltage regulation solutions. Discover more onsemi products and enhance your electronic system designs with proven, durable components.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 8.7 V with a tolerance of ±5%.
The maximum power dissipation of this model is 5 watts, suitable for moderate power applications.
The operating temperature range for this diode is from -65°C to 200°C, accommodating harsh industrial conditions.
The maximum reverse leakage current is limited to 10 μA, enhancing efficiency and reducing power loss.
This diode uses through hole mounting with axial leads, facilitating easy integration onto printed circuit boards.
The compact dimensions of this model are 8.89 mm in length and 3.68 mm in height.
The test current for this diode is 150 mA, which supports reliable Zener operation.
The maximum Zener impedance is 2 Ω, which contributes to efficient operation.
This model features a single diode configuration, making it suitable for various applications.
The diode is packaged in a DO-15 type, which is made from molded thermosetting plastic for environmental protection.
This Zener diode is manufactured in India.
This model is part of the 1N5345B series, known for its reliable voltage regulation characteristics.
