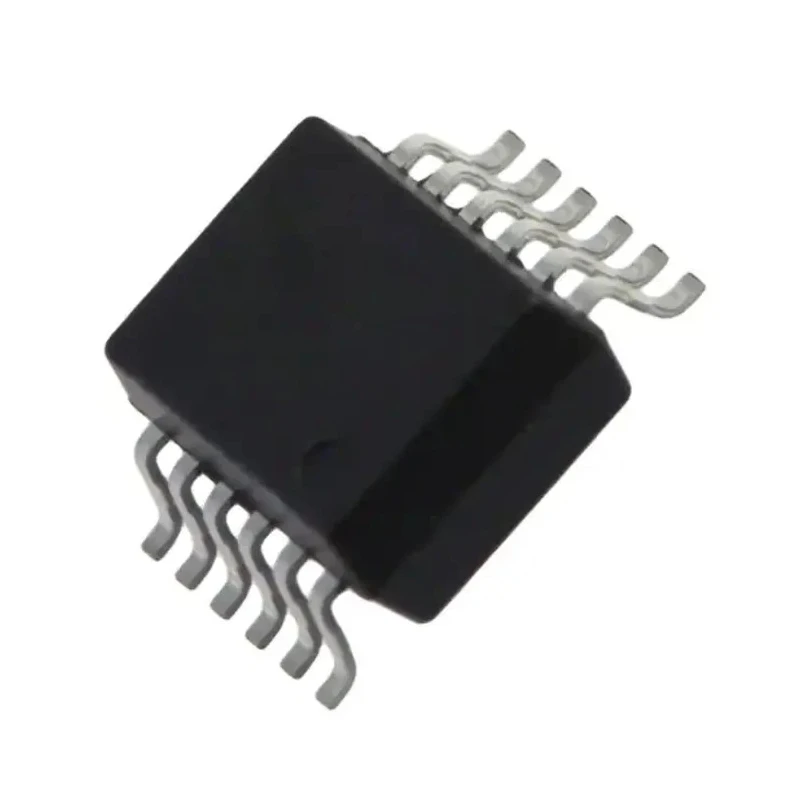

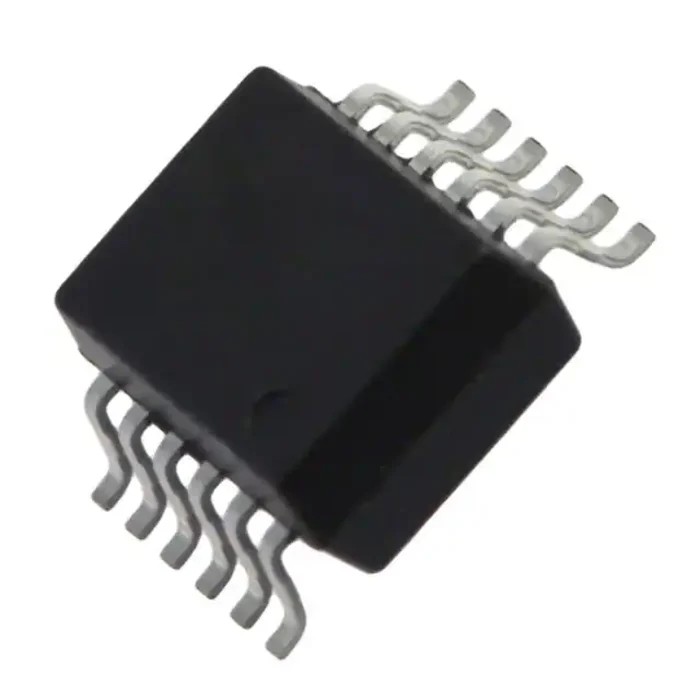

Renesas Electronics DC Input 4-Channel Photocoupler 12-Pin SOP PS2841-4A-F3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2841-4A-F3-AX |
| Packaging | 2500 pcs/Reel |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 4 |
| Standards/Approvals | UL Approved:UL1577, Single protection |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 12 |
| Input Current Type | DC |
| Minimum Current Transfer Ratio | 100% |
| Standards/ApprovalsUL Approved | UL1577, Single protection |
| UL Approved | UL1577, Single protection |
Key Features
- Contains four channels in a single package for space-saving integration.
- Features GaAs LED and NPN silicon phototransistors for reliable optical coupling.
- Supports DC input current up to 20mA with maximum forward voltage of 1.4V.
- High isolation voltage rating of 1500Vrms ensures safety in circuits.
- Wide operating temperature range from -40°C to 100°C for diverse applications.
- UL1577 approved with single protection certification for quality assurance.
- Packaged as 2500 pcs per reel suitable for manufacturing processes.
- Lead-free and RoHS compliant, suitable for environmentally conscious designs.
Product Description
Renesas Electronics PS2841-4A-F3-AX is a 4-channel photocoupler designed for DC input applications, utilizing GaAs light-emitting diodes and NPN silicon phototransistors in a compact 12-pin SOP package. This device enables high-density mounting, combining four channels into one unit, which optimizes board space and enhances design efficiency.
The photocoupler features a maximum forward voltage of 1.4V and can sustain a maximum input current of 20mA, delivering reliable signal isolation with an isolation voltage of 1500Vrms. It operates efficiently across a broad temperature range from -40°C to 100°C, making it suitable for industrial, automotive, and commercial electronic circuits that require robust isolation performance.
This product is UL1577 approved for single protection, providing safety and compliance with industry standards. Packaged in reels of 2500 pieces, it is optimized for automated insertion and mass production in electronics manufacturing environments.
The device is lead-free and RoHS compliant, supporting green manufacturing initiatives and reducing environmental impact. Four-channel integration for compact, high-density applications. Optical isolation enhances circuit protection and noise immunity.
Wide temperature range for versatile operating conditions. UL certification ensures compliance with safety requirements. Reel packaging supports efficient manufacturing workflows. Lead-free and compliant with environmental regulations.
This Renesas Electronics PS series photocoupler is ideal for use in industrial controls, telecommunications, computer interfaces, and power supply isolation applications. For more industrial-grade electronic components, browse the Electronics Components category on EnvMart.
Explore more products in our Optocoupler category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 20mA.
It has an isolation voltage rating of 1500Vrms, ensuring safety in circuits.
This unit operates efficiently across a temperature range from -40°C to 100°C.
This photocoupler contains four channels in a single package.
The maximum forward voltage is 1.4V.
It is packaged as 2500 pieces per reel, suitable for manufacturing processes.
This model is UL1577 approved, providing single protection certification for quality assurance.
The package type is SOP (Small Outline Package), consisting of 12 pins.
The minimum current transfer ratio is 100%.
Yes, it is lead-free and RoHS compliant, supporting environmentally conscious designs.
The country of origin for this model is India.
It is suitable for industrial controls, telecommunications, computer interfaces, and power supply isolation applications.
