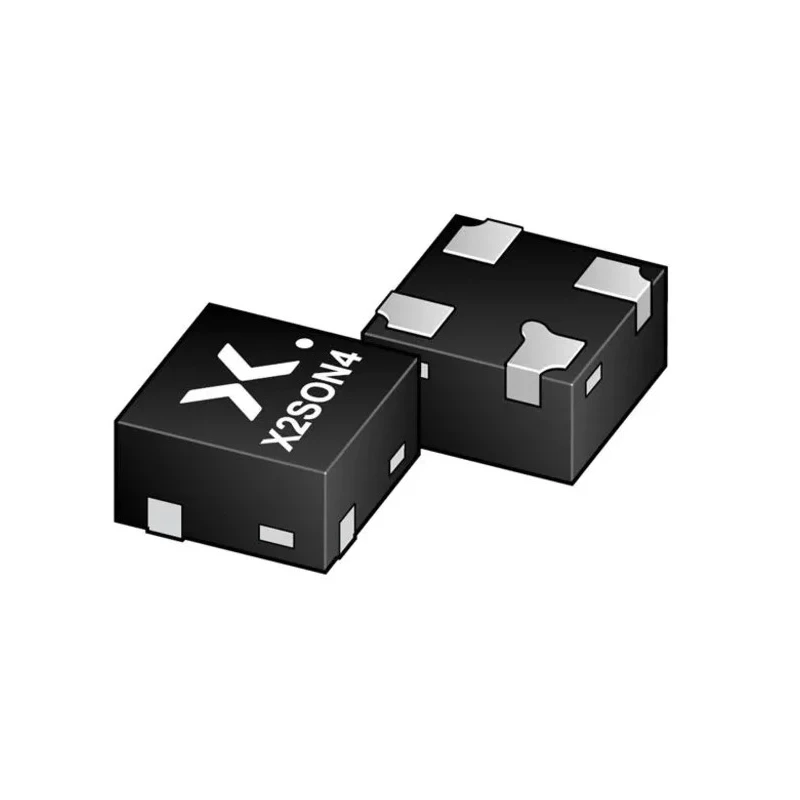

Nexperia CMOS Schmitt Trigger Input Inverter IC 3 Elements, 0.8V-3.6V Supply 74LVC1G14GX4-Q100Z

Free Delivery in India | Lowest Global Shipping Charges

Nexperia CMOS Schmitt Trigger Input Inverter IC 3 Elements, 0.8V-3.6V Supply 74LVC1G14GX4-Q100Z

Name: Nexperia CMOS Schmitt Trigger Input Inverter IC 3 Elements, 0.8V-3.6V Supply 74LVC1G14GX4-Q100Z
Brand: Nexperia
SKU: 178743
Price: 0.21 USD
Availability: InStock



Category Inverters ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	350μm
Length	650μm
Model	74LVC1G14GX4-Q100Z
Width	650μm
Mount Type	Surface
Series	74LVC1G14-Q100
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Standards/Approvals	JEDEC, RoHS
Number of Elements per Chip	3
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Inverter
Minimum Supply Voltage	800mV
Maximum Propagation Delay Time @ CL	7ns

Key Features

This inverter IC features Schmitt trigger inputs to improve noise immunity.
It offers low static and dynamic power consumption across the entire operating voltage range.
The device supports partial power down operation with IOFF circuitry preventing backflow current.
Maximum propagation delay is 7 ns at specified capacitive load.
Operates reliably between -55°C and 125°C operating temperatures.
Surface mount package with dimensions approximately 650μm length, width, and 350μm height.
Complies with JEDEC and RoHS standards for quality and environmental conformity.
Logic family is CMOS, suitable for low power digital circuits.

Product Description

The Nexperia 74LVC1G14GX4-Q100Z is a single inverter IC with Schmitt trigger inputs, designed to provide high noise immunity and low power consumption. The device operates reliably within a wide supply voltage range of 0.8 V to 3.6 V, making it suitable for modern low voltage digital systems.

This CMOS logic device integrates three inverter elements per chip, each equipped with Schmitt trigger inputs to filter signal noise and provide clean logic transitions. The IC features IOFF circuitry that disables outputs during partial power down to prevent damaging backflow currents, enhancing device robustness in power-sensitive applications.

Its maximum propagation delay time at a capacitive load is 7 ns, enabling fast signal processing in timing-critical circuits. Operating temperature range from -55°C to 125°C supports a broad spectrum of industrial, automotive, and commercial uses.

The package is a surface mount type with compact dimensions approximately 650μm by 650μm and height 350μm, enabling small footprint PCB designs. Compliant with JEDEC and RoHS standards, the device ensures adherence to international quality and environmental regulations.

Schmitt trigger inputs improve noise immunity. Low static power consumption with maximum ICC of 0.9 μA. Overvoltage tolerant inputs to 3.6 V. IOFF partial power-down support prevents backflow current damage. Latch-up performance exceeds 100 mA per JESD 78 Class II.

Suitable for industrial, automotive, and commercial digital logic applications requiring robust inverter circuits.

This inverter IC is ideal for integration in logic function implementations, wave shaping, astable and monostable multivibrators, and other timing and control functions within electronic and semiconductor systems.

For those seeking advanced semiconductor components with reliable operation at low voltages, the Nexperia 74LVC1G14GX4-Q100Z offers the needed performance and quality. Explore our comprehensive range of semiconductor logic ICs by Nexperia in the Inverters ICs category on EnvMart.
