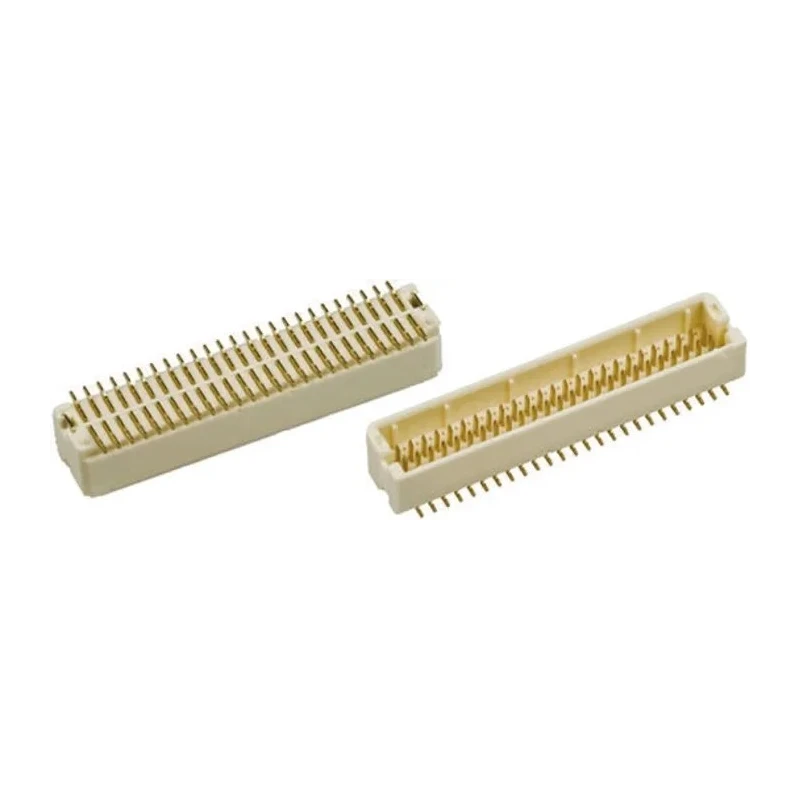

Hirose DF20 Series Straight Surface PCB Header 10 Contacts 1 mm Pitch 2 Row Shrouded

Hirose DF20F-10DP-1V(55) Straight Surface PCB Header offers a compact and reliable solution for wire-to-board connections with its 10 contacts and 1 mm contact pitch. The connector features a robust polyamide housing with UL94V-0 flammability rating, ensuring durability and safety in various electrical environments.

The double-row, shrouded, straight orientation header uses gold-plated copper alloy contacts delivering excellent conductivity and corrosion resistance, suitable for applications operating between -35°C to 85°C and rated at 100 V and 1 A current.

This surface mount connector terminates via solder, facilitating automated board placement and secure connections for small form-factor electronics. It is ideal for notebook PCs, office automation equipment, and consumer devices requiring compact and dependable connectivity.

The header’s design prevents mis-insertion and provides highly reliable electrical connections with a precise wiping mechanism of the contacts. Its beige polyamide housing with metal fitting supports long-term durability and ease of installation in automated processes.

Key features include a 1.0 mm pitch, two rows of contacts, and shrouded protection. Its slim profile with a mating height above PCB of approximately 5.8 mm makes it suitable for space-constrained applications requiring low profile connectors.

Features a 1 mm contact pitch for compact PCB applications. Constructed from durable polyamide housing material with UL94V-0 rating. Equipped with gold-plated copper alloy contacts for excellent conductivity and corrosion resistance.

Supports a maximum operating temperature of 85°C and minimum of -35°C. Rated for 100 V and 1 A current, suitable for low-power electronics. Shrouded 2-row design ensures protection and prevents mis-insertion. Designed for straight orientation and surface mount solder termination.

Ideal for notebook PCs, small office automation, and consumer devices requiring low-profile connectors. Enables highly reliable electrical connections with metal fitting and precise contact wiping action. Meets industry demands for compact, low-profile PCB to wire connection solutions.

This Hirose DF20 series PCB header is widely used in industrial, consumer electronics, and computer applications where dependable, space-efficient board connections are essential. EnvMart offers this component to support engineers and manufacturers in designing robust electronic assemblies.
