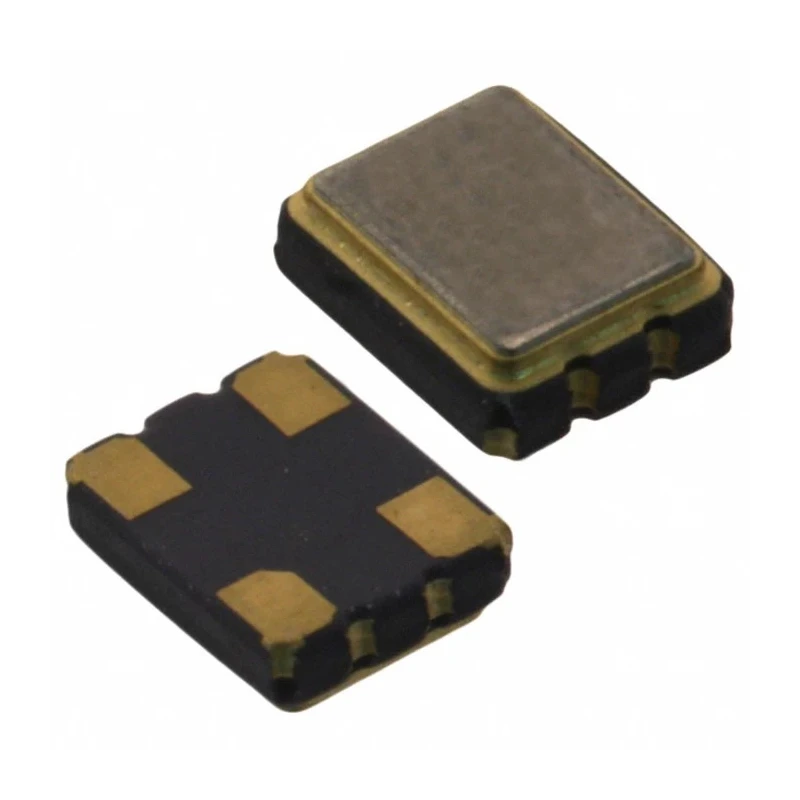

Renesas Electronics 24MHz XO Oscillator ±50 ppm LVCMOS 4-Pin Surface Mount XLH73V024.576000I

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics 24MHz XO Oscillator ±50 ppm LVCMOS 4-Pin Surface Mount XLH73V024.576000I

Name: Renesas Electronics 24MHz XO Oscillator ±50 ppm LVCMOS 4-Pin Surface Mount XLH73V024.576000I
Brand: Renesas Electronics
SKU: 170220
Price: 3.26 USD
Availability: InStock



Category Crystal Oscillator Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Operating Temperature	-20°C to +70°C
Height	1.3mm
Length	7mm
Model	XLH73V024.576000I
Width	5mm
Mount Type	Surface
Series	XL
Maximum Operating Temperature	70°C
Output Frequency	24MHz
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Supply Voltage	2.5V or 3.3V
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	5V
Minimum Supply Voltage	-0.5V
Oscillator Type	XO
Output Level	LVCMOS
Output Types	LVDS, LVPECL, LVCMOS

Key Features

Operates at a frequency of 24MHz with excellent frequency stability of ±50 ppm.
Features a 4-pin surface mount package with compact dimensions of 7 x 5 x 1.3 mm.
Supports LVCMOS output level suitable for digital circuits.
Wide operating temperature range from -20°C to +70°C for reliable performance.
Supply voltage options include 2.5V or 3.3V with maximum rating up to 5V.
Robust design with compliance to RoHS standards ensuring environmental safety.
Low phase jitter of 750 to 890 femtoseconds typical over 12kHz to 20MHz bandwidth.
Utilizes proprietary ASIC technology for noise reduction and improved signal quality.

Product Description

Renesas Electronics XLH73V024.576000I is a high precision 24MHz XO oscillator featuring ±50 ppm frequency stability and LVCMOS output. Designed as a compact 4-pin surface mount device measuring 7mm in length, 5mm in width, and 1.3mm in height, it is suitable for integration into modern electronic circuits requiring stable clock signals.

This oscillator operates within a temperature range of -20°C to +70°C ensuring dependable performance in various industrial and commercial environments. It supports supply voltages of 2.5V or 3.3V, with a maximum rating of 5V, enhancing its versatility in different power designs.

The device boasts extremely low phase jitter (750 to 890 femtoseconds typical over the 12kHz to 20MHz bandwidth), achieved through its proprietary ASIC technology focused on noise reduction, ensuring high signal integrity for sensitive applications.

Output types supported include LVDS, LVPECL, and LVCMOS, with this particular model set for LVCMOS, commonly used in digital electronics. The oscillator is RoHS compliant, underlining its adherence to environmental standards.

Typical applications encompass industrial controls, communication systems, embedded electronics, and precision timing circuits requiring reliable frequency sources. As part of Renesas's XL series, this oscillator offers ultra-precision timing solutions with a broad frequency range selection from 0.75MHz to 1350MHz.

Operates at 24MHz frequency with tight ±50 ppm stability. Compact 4-pin surface mount package measuring 7 x 5 x 1.3 mm. Wide operating temperature range from -20°C to +70°C. Low phase jitter for noise-sensitive applications.

RoHS compliant ensuring environmental safety. Proprietary ASIC noise reduction technology. Supports supply voltages 2.5V or 3.3V (max 5V). Suitable for industrial, communications, and embedded systems. Part of Renesas XL series ultra-precision oscillators.
