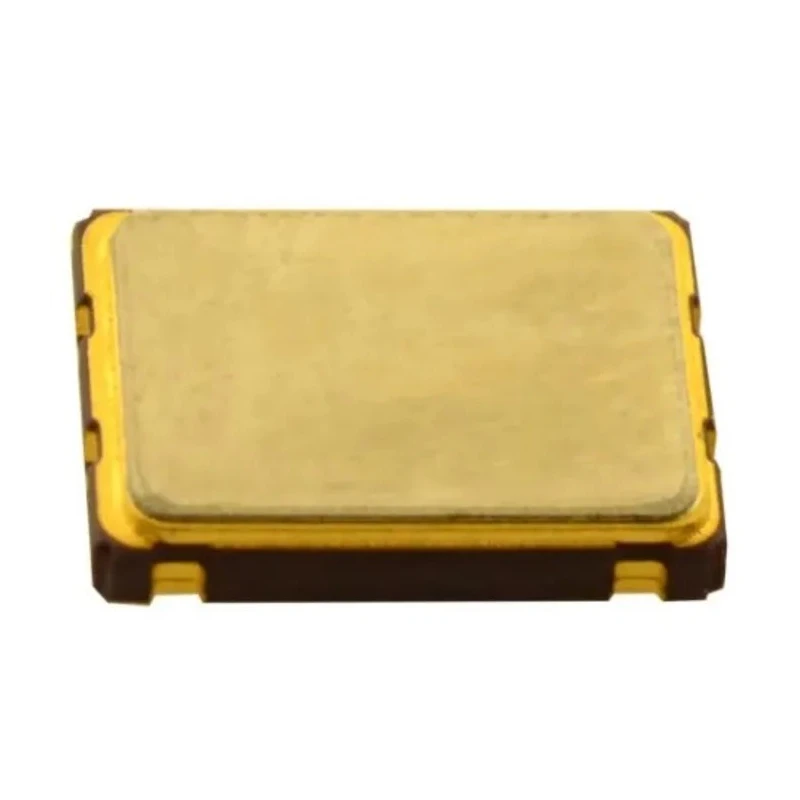

Renesas Electronics 156.25MHz Clock Oscillator LVPECL 8-Pin LGA Surface Mount XTP332156.250000I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | XTP332156.250000I |
| Mount Type | Surface |
| Series | XT |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 156.25MHz |
| Package Type | LGA |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.3V |
| Oscillator Type | Clock Oscillator |
| Output Level | LVPECL |
Key Features
- Operates at a supply voltage of 3.3V ensuring low power consumption.
- Maintains frequency stability of ±3ppm across an operating temperature range of -40°C to +85°C.
- Designed with integrated TCXO for high frequency accuracy and life stability of ±13ppm.
- Ideal for enterprise equipment requiring low noise and precise timing such as transceiver modules and data centers.
- Compact 8-pin LGA package enables easy surface mounting on PCB.
- Meets RoHS compliance, supporting environmental safety standards.
- Series XT oscillator for general-purpose timing applications.
- Output level conforms to LVPECL for high speed digital circuits.
Product Description
Renesas Electronics XTP332156.250000I is a precision 156.25MHz clock oscillator featuring an LVPECL output and housed in an 8-pin LGA surface mount package. It operates at 3.3V supply voltage and is designed with integrated temperature compensated crystal oscillator (TCXO) for exceptional frequency stability and accuracy.
This oscillator maintains a tight frequency stability of ±3ppm over a wide industrial temperature range of -40°C to +85°C with a life stability of ±13ppm. Its low noise and high stability characteristics make it ideal for demanding applications such as enterprise-level transceiver modules, data center timing sources, and other communication equipment requiring reliable clock generation.
The device package allows surface mounting on printed circuit boards (PCB), facilitating compact and efficient design layouts. Compliance with RoHS ensures adherence to environmental safety norms.
Features include a fixed 156.25MHz output frequency, LVPECL output level, and an 8-pin LGA footprint optimized for modern electronic systems. Operates at 3.3V supply voltage ensuring low power consumption. Offers frequency stability of ±3ppm within -40 °C to +85 °C.
Integrated TCXO technology for enhanced frequency accuracy and life stability. Suitable for high performance timing in data centers and transceiver modules. Compact 8-pin LGA package for surface mount applications. RoHS compliant ensuring environmental safety.
This clock oscillator is categorized under crystal oscillators for electronic components, providing reliable timing solutions in industrial, telecommunication, and computing contexts. Explore more Crystal Oscillator solutions at EnvMart to suit various timing and clock generation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 156.25MHz.
It operates at a supply voltage of 3.3V.
This model maintains operation within a temperature range of -40°C to +85°C.
The oscillator provides an LVPECL output level, suitable for high-speed digital circuits.
The package has a pin count of 8.
It supports surface mounting on printed circuit boards (PCB).
It has a frequency stability of ±3ppm across its operating temperature range.
The integrated TCXO provides a life stability of ±13ppm.
Yes, this model meets RoHS compliance, supporting environmental safety standards.
It belongs to the XT series of oscillators, designed for general-purpose timing applications.
It is ideal for enterprise equipment requiring low noise and precise timing, such as transceiver modules and data centers.
The country of origin for this model is India.
