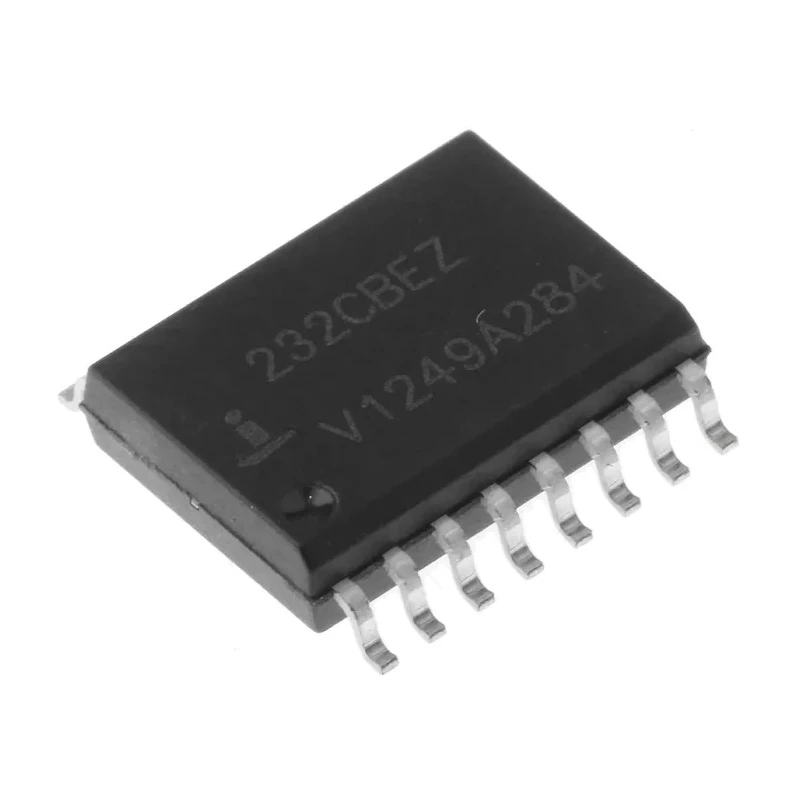

Renesas Electronics 2-Channel Line Transceiver TTL/CMOS 16-Pin SOIC W ICL232CBEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.35mm |
| Length | 10.1mm |
| Model | ICL232CBEZ |
| Width | 7.4mm |
| Mount Type | Surface |
| Output type | TTL/CMOS |
| Series | ICL232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC W |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 0.5μs |
| Supply Current | 5mA |
| Maximum Low Level Output Current | 3.2mA |
Key Features
- This device functions as a 2-channel line transceiver compatible with TTL and CMOS logic families.
- Featuring a 16-pin SOIC W package design, it supports surface mounting for compact PCB assemblies.
- Supports single-ended input type with TTL/CMOS output for versatile interfacing.
- Operates with a minimum supply voltage of 4.5V and a maximum supply voltage of 5.5V.
- Maximum operating temperature is 70°C, suitable for standard operating environments.
- Ensures low supply current consumption of 5mA for efficient power usage.
- Achieves a maximum propagation delay time of 0.5 microseconds ensuring fast data transmission.
- Compliant with RoHS standards, supporting environmentally friendly manufacturing.
Product Description
Renesas Electronics ICL232CBEZ is a 2-channel line transceiver IC designed for interfacing TTL and CMOS logic signals. It is packaged in a 16-pin SOIC W surface-mount form factor, providing compact and efficient installation on printed circuit boards. Its operational voltage ranges from 4.5V to 5.5V, making it suitable for standard low-voltage applications.
This line transceiver supports single-ended input with TTL/CMOS output, enabling reliable communication in industrial, electronic components, power connectors, and control systems. It operates with a maximum propagation delay time of 0.5 microseconds, supporting data rates up to 1 Mbps, making it ideal for RS-232 communication line drivers and receivers.
The device consumes a low supply current of 5mA, which aids in power-efficient circuit designs. Operating temperature ranges from 0°C to 70°C, ensuring stable performance in typical industrial and commercial environments. It is RoHS compliant, aligning with environmental regulations for electronic components.
The physical dimensions are compact with a length of 10.1 mm, width of 7.4 mm, and height of 2.35 mm, facilitating integration into space-constrained applications such as embedded systems and communication interfaces.
This IC functions as a 2-channel line transceiver suitable for TTL/CMOS logic interfacing. Has a surface-mount 16-pin SOIC W package for efficient board layout. Operates within a supply voltage range of 4.5V to 5.5V ensuring compatibility with standard electronics.
Supports single-ended inputs with TTL/CMOS compatible outputs for versatile designs. Features a maximum propagation delay time of 0.5 μs for fast signal transmission. Has a supply current rating of 5 mA supporting low-power applications.
Certified RoHS compliant for environmental safety standards. Dimensions of 10.1 mm length, 7.4 mm width, and 2.35 mm height for compact mounting.
This line transceiver is widely used in industrial automation, electronic instruments, power distribution systems, communication equipment, and control modules requiring reliable signal transmission and voltage level translation.
Explore the full range of line interface and semiconductor components for your electronic development and manufacturing needs on EnvMart.
Explore more products in our Line Interface ICs category.
